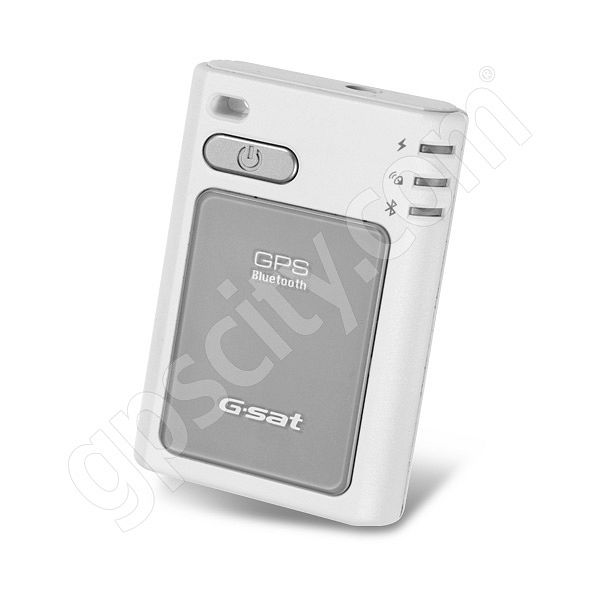

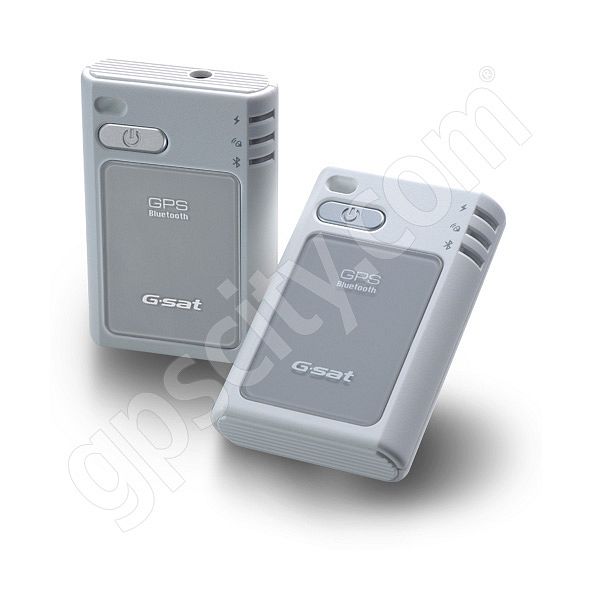

US GlobalSat BT328 Bluetooth GPS Receiver


US GlobalSat BT328 Bluetooth GPS
Additional Images
US GlobalSat BT328 Bluetooth GPS #1
Customer Images
Share your images and get a
free gpscity.ca t-shirt!
Customer Rating: (based on 2 reviews).    Email:  Email the US GlobalSat BT328 Bluetooth GPS page     Print:  Print the US GlobalSat BT328 Bluetooth GPS page
See more US GlobalSat items.


This item has been discontinued by the manufacturer.

Accessories may still be available for this item. Click to view accessories.


What's Included In The Box?

The US GlobalSat BT328 Bluetooth GPS ships with the following items included:

  • BT-328RB Bluetooth GPS Receiver
  • 12VDC Car Charger
  • CD-ROM (User Manual & GPS Info Test Utility)

Product Information

Manufacturer: US GlobalSat Category: GPS Units Type: Mobile Computer GPS
Model: 06-BT328-M SKU: BT328 UPC: 795945031508
Announced: August 1, 2006 First Shipped: August 1, 2006 Weight: 0.563 lbs.

Manufacturer Description

Accurate, Lightweight, Affordable. The BT-328RB Bluetooth GPS receiver uses the SiRF GSC2 low-power chip-set to combine performance with low cost. This combination has created the perfect entry-level Bluetooth GPS at a very attractive price. Compatible with just about any device using Serial Port Protocol (SPP) Bluetooth, the BT-328RB can provide accurate GPS positioning information for up to 16 hours of continuous use from its internal Li-ion rechargeable battery.

Use the BT-328RB with your favorite application, whether it be vehicle navigation on a laptop, Topo maps on a PDA or getting directions from a Smartphone, the BT-328RB rivals the accuracy of many higher priced GPS receivers at only a fraction of the cost.

The BT-328RB is the perfect combination of technology and design as has become one of the most popular GPS devices in it's class today.

BT-328RB Package Contents:
  • BT-328RB Bluetooth GPS Receiver
  • 12VDC Car Charger
  • CD-ROM (User Manual and GPS Info Test Utility)
  • Supports Mac/ PC/ Palm/ BlackBerry/ WM



Features & Tips

Here is a listing we have put together of some of the common

BT328 Bluetooth GPS features

, along with a few user tips that you may find of help for this particular item.

BT-328 Performance Specifications

GPS Chipset SiRF Star III
General L1 (1575.42 MHz) C/A code
Accuracy 5 m with DGPS (WAAS)
Velocity:0.1 m/s
Time: 1ms RMS
Aquisition Reacuisition: 0.1 sec
Hot Start: 8 sec
Warm Start: 38 sec
Cold Start: 42 sec
Sensitivity Tracking; -159 dBm

BT-328 Protocol

GPS Protocol NMEA 0183 (Default), SiRF binary (Secondary)
GPS Output Data GGA, GSA, GSV, RMC, VTG, GLL (VTG and GLL are optional)
GPS Transfer Rate 38400,N,8,1 for NMEA (Default) via Bluetooth
Connection Bluetooth V1.2 Compliant

BT-328 Electrical Characteristics

Prime Power NMEA 0183 (Default), SiRF binary (Secondary)
External Power SiRF binary >> position, velocity, altitude
Battery Capacity 38400,n,8,1 for NMEA (Default) via Bluetooth
Battery Life 16 Hours continuous use typical
Operating Current 85mA

BT-328 Physical Characteristics

Enclosure Durable Polycarbonate
Dimensions 67.5mm x 45mm x 17mm
Weight 2.64 Ounces (75 g)

BT-328 Enviromental Specifications

Operating Temperature 14F ~ 149F (-10C ~ 60C)
Storage Temperature -4F ~ 158F (-20C ~ 60C)
Operation Humidity 5% to 95% non-condensing
