| Model: |
RAM Mount Zinc U-Bolt Rail Base with Long Arm Diamond Assembly |
| Part No: |
RAM-B-149Z-CU |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,594 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
RAM Long Arm: Overview (RAM-B-201U-C)
(2,091 views) |
RAM Motorcycle U-Bolt Base: On Suzuki (RAM-B-231ZU)
(25,241 views) |
|
What's Included In The Box? |
The RAM Mount Zinc U-Bolt Rail Base with Long Arm Diamond Assembly ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Cradle Mounts |
| Model: |
RAM-B-149Z-CU |
SKU: |
RAMB149Z-C |
UPC: |
|
| Announced: |
November 30, 1999 |
First Shipped: |
August 1, 2001 |
Weight: |
0.863 lbs. |
RAM Mount Zinc U-Bolt Rail Base with Long Arm Diamond Assembly Alternative Models |
RAM Mount Cradle Plate Zinc U-Bolt Rail Mount 1.0 inch Ball |
RAM Mount Steel U-Bolt Cradle Plate Mount 1.0 inch Ball |
RAM Mount Plastic Rail Base and Standard Arm Diamond Assembly | | | |
|
Manufacturer Description |

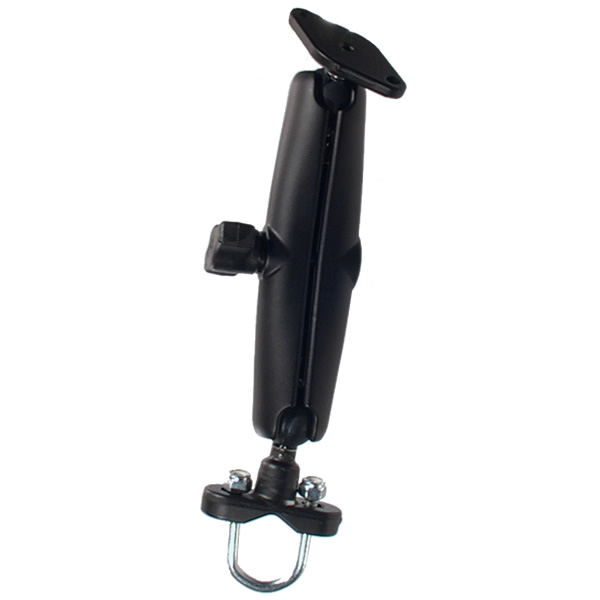

The RAM Marine Grade Aluminum Mount with Zinc Coated U-Bolt Rail Base consists of the 1'' dia. ball and socket system with RAM Universal Diamond Plate. This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the Diamond Plate will connect to a large variety of third party cradles and mounts.
BASE DESIGN:
 The RAM-B-231Z RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated metal U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
Note: If you are looking to use this mount in the elements, we suggest the RAM-B-231 Stainless Steel U-Bolt Mount.
ARM DESIGN:
The Powder Coated Marine Grade Aluminum LONG Double Socket Arm is 5.25'' long when measured between socket centers.
END PLATE DESIGN:
 The RAM-B-238 Powder Coated Marine Grade Aluminum Universal Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 1 1/4 x 2 1/2 inch Diamond Plate. The plate has two pre-drilled holes positioned at either tip of the diamond plate. The hole pattern found on the Diamond Plate will connect to a large variety of RAM Mount and third party cradles and mounts, including those with the industry standard AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
|
