Product Detail & Documentation (all files in PDF format)
Manufacturer
RAM Mount
Category
Plate Mounts
Model
RAM-B-121U
SKU
RAMB121
Weight
0.800 lbs.
Share this item:
Need Assistance? We're here to help. (That's the GPS City Difference!)
For quick help selecting the right GPS unit, try our
GPS Selector Tool,
check specifications, or
compare GPS units. If you have a specific question about an
item, try entering your question using the
Q&A (Questions & Answers) section above - we usually respond on the same or next day. During our office hours 9AM - 6PM MDT, Mon-Fri, you can contact us using
, or reach us by phone at 1-866-GPS-CITY.
What's Included With The RAM Mount Yoke Clamp Mount with AMPS Round Plate End? The RAM Mount Yoke Clamp Mount with AMPS Round Plate End ships with the following items included:

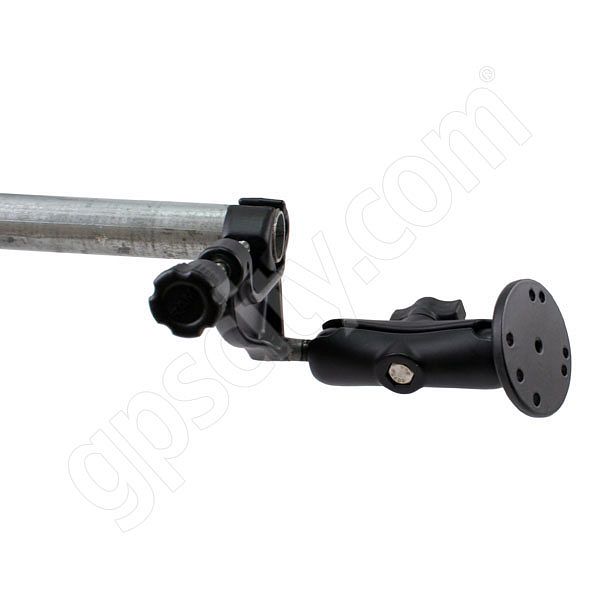

RAM Mount Yoke Clamp Mount with AMPS Round Plate End Description The RAM Marine Grade Aluminum Yoke Mount consists of the 1'' dia. ball and socket system with RAM Universal 2.5'' diameter Plate. This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the 2.5'' Plate will connect to a large variety of third party cradles and mounts.
BASE DESIGN:
The RAM-B-121B RAM Mount Powder Coated Marine Grade Aluminum Yoke Clamp Mount Base fits a rail diameter from 5/8 inch to a maximum of 1 1/4 inches. The 1 inch rubber ball is at a right angle to the plane of the mount so when connected to a rail, the ball sits parallel to the rail. To mount the base, simply place the yoke clamps around the rail and then screw the large knob at the end of the threaded rod. The hand tightened clamp makes this the perfect mounting system for rental planes and unusual shaped motorbike rails.
NOTE: The rail does not need to be perfectly round to mount this base.
ARM DESIGN: The Powder Coated Marine Grade Aluminum Standard Length Double Socket Arm is 3.0'' long when measured between socket centers.
END PLATE DESIGN:
The RAM-B-202 RAM Mount Marine Grade Aluminum Universal Plate has a 1.0'' diameter Rubber Ball connected at right angles to a 2.5 inch diameter round plate. The plate has pre-drilled holes in the base plate, including the universal AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
Note: This base plate will attach to any of the RAM plastic HOL holders, but generally the RAM-B-238 Diamond Plate is used.
