Customer Images
Share your images and get a
free gpscity.ca t-shirt!
|
Customer Rating:   (based on 2 reviews). Email:
 Print:
100% of our reviewers recommend this item. See more RAM Mount items. |
| |
| List Price: |
$47.22CDN |
| Our Price: |
$37.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$9.27CDN (20%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
| Model: |
RAM Mount Yoke Clamp Base with Standard Arm Diamond Assembly |
| Part No: |
RAM-B-121-238U (also RAM-B-121-238) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,594 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,920 views) |
RAM Clamp Mount Base with B-Ball (RAM-B-121BU)
(2,122 views) |
|
What's Included In The Box? |
The RAM Mount Yoke Clamp Base with Standard Arm Diamond Assembly ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Cradle Mounts |
| Model: |
RAM-B-121-238U |
SKU: |
RAMB121-238 |
UPC: |
793442112164 |
| Announced: |
November 30, 1999 |
First Shipped: |
August 3, 2001 |
Weight: |
0.725 lbs. |
Manufacturer Description |

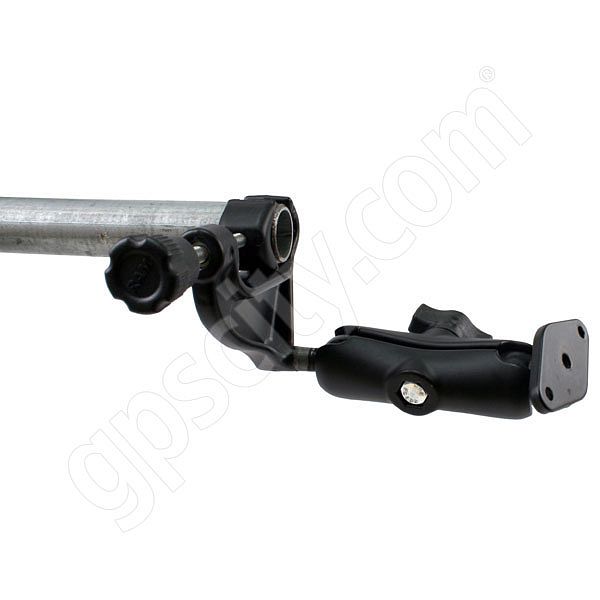

The RAM Marine Grade Aluminum Yoke Mount consists of the 1'' dia. ball and socket system with RAM Universal Diamond Plate. This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the Diamond Plate will connect to a large variety of third party cradles and mounts.
BASE DESIGN:
 The RAM-B-121B RAM Mount Powder Coated Marine Grade Aluminum Yoke Clamp Mount Base fits a rail diameter from 5/8 inch to a maximum of 1 1/4 inches. The 1 inch rubber ball is at a right angle to the plane of the mount so when connected to a rail, the ball sits parallel to the rail. To mount the base, simply place the yoke clamps around the rail and then screw the large knob at the end of the threaded rod. The hand tightened clamp makes this the perfect mounting system for rental planes and unusual shaped motorbike rails.
NOTE: The rail does not need to be perfectly round to mount this base.
ARM DESIGN:
The Powder Coated Marine Grade Aluminum Standard Length Double Socket Arm is 3.0'' long when measured between socket centers.
END PLATE DESIGN:
 The RAM-B-238 Powder Coated Marine Grade Aluminum Universal Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 1 1/4 x 2 1/2 inch Diamond Plate. The plate has two pre-drilled holes positioned at either tip of the diamond plate. The hole pattern found on the Diamond Plate will connect to a large variety of RAM Mount and third party cradles and mounts, including those with the industry standard AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
|
