Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$58.79CDN |
| Our Price: |
$47.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$10.84CDN (18%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
|
|
| Model: |
RAM Mount XM and Sirius Radio Plate Vehicle Floor Mount |
| Part No: |
RAM-B-316-1-XM1U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Vehicle RAM-POD Mounting Base: Overview (RAM-316-1A)
(2,489 views) |
Check out our
channel. | | | |
|
Most Popular XM and Sirius Radio Plate Vehicle Floor Mount Accessories
» View the complete accessory list for the RAM Mount XM and Sirius Radio Plate Vehicle Floor Mount. |
RAM Mount Satellite Radio Antenna Plate
$5.06
|
RAM Mount Satellite Radio Magnet Antenna Plate
$4.91
|
RAM Mount Open 1 inch Socket Locking Suction Cup Mount
$25.95
|
RAM Mount Open 1 inch Socket End Screw Down Plate Mount
$17.95
|
RAM Mount Open Socket Steel U-Bolt Mount RAM-B-149X
$23.95
|
|
What's Included In The Box? |
The RAM Mount XM and Sirius Radio Plate Vehicle Floor Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Satellite Radio Mounts |
| Model: |
RAM-B-316-1-XM1U |
SKU: |
RAMB316-1XM1 |
UPC: |
0 |
| Announced: |
January 1, 2007 |
First Shipped: |
January 1, 2007 |
Weight: |
1.070 lbs. |
Manufacturer Description |

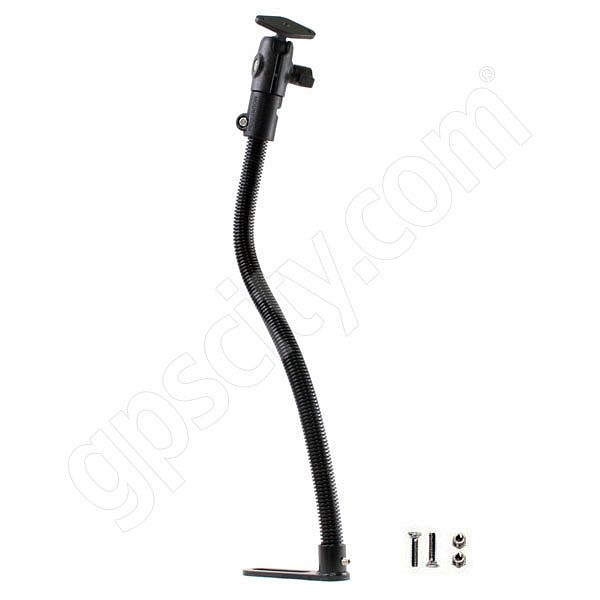

The RAM-B-316-1-XM1 RAM-POD-I Flex Rod Vehicle Floor Mount consists of a RAM 1 inch diameter RAM ball and socket system on a 18 inch long Aluminum Flexible Rod with a RAM Aluminum Diamond Cradle Plate and Hardware. The RAM diamond plate and hardware connects to the back of the cradle included with the purchase of your XM or Sirius Radios.
XM and Sirius Satellite Radio Mount Cradle Design:
The RAM-B-238-XM1 RAM Mount Aluminum Diamond Plate with hardware (RAM-S-XM1), is a mounting plate designed to be connected to the back of your existing XM or Sirius Satellite Radio cradle. The RAM mounting plate has pre-drilled holes in each point of the diamond. The hole centers are 1.91 inches (48.5mm). Generally you will find a four hole pattern on the back of the satellite radio cradles. The diamond plate will connect to two of the diagonal holes with the included hardware. The XM / Siruis Satellite Radio Mounting plate works with:
- Delphi Roady and Roady 2 Cradle
- Delphi Roady XT Cradle
- Delphi SKYFi and SKYFi2 Cradle
- Delphi MyFi
- many more, including Sirius Radios, with cradles that have a hole spacing of 1.91'' (48.5mm)
XM and Sirius Satellite Radio Mount Plate Connections:
Delphi MyFi Cradle connected to the
RAM-B-238-XM1 Mounting Plate |
Delphi Roady Cradle connected to the
RAM-B-238-XM1 Mounting Plate |
XM and Sirius Satellite Radio Mount Arm Design: The RAP-B-200-1 RAM Mount High Strength Plastic Single Socket Short Arm has a B Size 1 inch Ball Socket at one end, and a Female Octagon button connection at the other. The Octagon Button end will mount on the end of the Aluminum Flex Rod, allowing the 1 inch socket to hold your device cradle or plate. The side of the arm includes a tightening knob which allows you to open and close the socket end.
XM and Sirius Satellite Radio Mount Base Design: The RAM-316-1A RAM Mount Rigid Arm Base consists of a RAM octagon at the end of a 18 inch rigid flex arm with seat rail base. The RAM-POD-I mounting foot plate base is designed to connect to a vehicle seat rail bolt in your Car, Truck, SUV, RV, Big Rig or bolted location. Connected at right angles to the mounting foot is an 18 inch long Aluminum Flexible Rod. This rod can hold light to medium weight items in your vehicle safely and securely. At the top of the rigid flex rod is a male RAM High Strength Plastic Octagon Button that will connect directly to a RAM Female Octagon Button Arm.
Movement of the Rigid 18 inch Flex Arm:It is important to note that the rigid 18 inch flex arm found on this mount is designed to hold an approximate weight of up to 4 lbs. With this in mind, the aluminum rod is more rigid than flexible. It is designed to be bent into position when being installed and then hold it's position. This means you cannot move the mount around once installed with just one hand.
XM and Sirius Satellite Radio Mount Options:
To help ensure you have the XM and Sirius Satellite Radio Series Mount you require, take a look at the list of available RAM Satellite Radio mounts on the XM and Sirius Radio Series Mount Page. Here you can select from XM / Sirius Radio suction cup mounts, flat surface screw down XM / Sirius Radio mounts, XM / Sirius Radio car mounts, non skid weighted XM / Sirius Radio mounts and more bundled with the RAM-B-238-XM1 XM and Sirius Radio Series Cradle Plate.
|
Features & Tips |
Here is a listing we have put together of some of the common XM and Sirius Radio Plate Vehicle Floor Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty
- Cradle Design: Plate and Hardware to connect to XM or Sirius Satellite Radio Cradle
- Cradle Material: Black Powder Coated Marine Grade Aluminum Plate
- Mount Material: Black Powder Coated Marine Grade Aluminum / Aluminum Rod / High Strength Plastic
- Mount Ball Size: RAM 1 inch Solid Rubber Ball
- Pivot Point Design: RAM Patented RAM 1 inch Rubber Ball and Socket Joint
- Arm Type: RAM Arm with Dual 1 inch Sockets
- Base Type: Vehicle Floor Mount
|
