| Model: |
RAM Mount XM and Sirius Radio Pivot Arm Suction Mount |
| Part No: |
RAP-B-104-224-XM1U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Suction Mount: Overview (RAP-B-104-224)
(1,816 views) |
Check out our
channel. | | | |
|
Most Popular XM and Sirius Radio Pivot Arm Suction Mount Accessories
» View the complete accessory list for the RAM Mount XM and Sirius Radio Pivot Arm Suction Mount. |
RAM Mount Satellite Radio Antenna Plate
$5.06
|
RAM Mount Satellite Radio Magnet Antenna Plate
$4.91
|
RAM Mount Motorcycle Brake Clutch Mount with Open Socket End
$23.95
|
RAM Mount Open 1 inch Socket End Screw Down Plate Mount
$17.95
|
RAM Mount Open Socket Steel U-Bolt Mount RAM-B-149X
$23.95
|
|
What's Included In The Box? |
The RAM Mount XM and Sirius Radio Pivot Arm Suction Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Satellite Radio Mounts |
| Model: |
RAP-B-104-224-XM1U |
SKU: |
RAPB104224XM1 |
UPC: |
|
| Announced: |
January 15, 2007 |
First Shipped: |
February 1, 2007 |
Weight: |
0.470 lbs. |
Manufacturer Description |

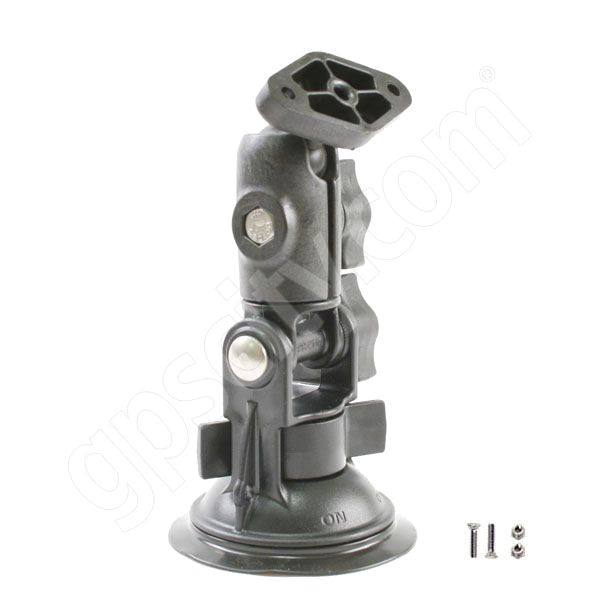

The RAP-B-104-224-XM1 RAM Mount High Strength Plastic XM and Sirius Satellite Radio Ratchet Pivot Suction Cup Mount consists of the RAM 1 inch diameter ball and socket system and a RAM Ratchet Pivot connection. The RAM diamond plate and hardware connects to the back of the cradle included with the purchase of your XM or Sirius Radios.
XM and Sirius Satellite Radio Mount Plate Design:The RAP-B-238-XM1 Plastic Composite Diamond Plate with Hardware (RAM-S-XM1), has a double hole spacing of 1.91'' (48.5mm) which will connect to the back of many XM and Sirius Satellite Radio cradles including the following:
- Delphi Roady and Roady 2 Cradle
- Delphi Roady XT Cradle
- Delphi SKYFi and SKYFi2 Cradle
- Delphi MyFi
- many more, including Sirius Radios, with cradles that have a hole spacing of 1.91'' (48.5mm)
XM and Sirius Satellite Radio Mount Plate Connections:
Delphi MyFi Cradle connected to the
RAM-B-238-XM1 Mounting Plate |
Delphi Roady Cradle connected to the
RAM-B-238-XM1 Mounting Plate |
XM and Sirius Satellite Radio Mount Arm Design:
 The RAP-B-200-1 RAM Mount Socket and Octagon Button Arm includes a 1 inch B size Ball Socket and is made of High Strength Plastic. The arm is 1.75 inches long when measured from socket center to button socket end. The side of the arm includes a tightening knob which allows you to open and close the socket ends.
XM and Sirius Satellite Radio Mount Base Design: The RAP-224-2 RAM Mount High Strength Plastic Locking 3.25 inch diameter Rubber Suction Cup Base is designed to have an extra strong hold on any smooth non-porous surface. With a twist on the locking knob, the suction cup base adheres to any glass¹ or non-porous plastic surface, as found on our Super Grip Plastic Non Skid Base and Plastic Adhesive Disk.
Connected to the top of the RAM suction cup is a male RAM plastic octagon button with pivot connection. The pivot design allows the mount to tip from 0 to 90 degrees to the suction cup, while the octagon button connections allows the arm to rotate 360 degrees. The button end connects directly to a RAP-B-200-1 Plastic Arm with Socket and Female Button ends.
¹ Important legal note to California and Minnesota Drivers
Suction Cup Base Mounting Options:We currently offer three alternative solutions for mounting your suction cup mount in a location other than a windshield:
 The Super Grip Non Skid Base with round plastic plate, is a weighted base that can be placed on your dash without an adhesive or drilling. Simply place the base on your dash, or any flat surface and then attach the suction cup to the round plastic plate. This is perfect when you want a temporary mounting solution but the windshield mount just isn't the answer.
 The Suction Cup Adhesive Disk with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply stick the the plate to any flat surface and then attach the suction cup to the plate. This is perfect when you need to attach your suction cup mount to your car dash vertically or horizontally, rather than to your windshield.
 The Suction Cup Drink Cup Holder with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply place the base into any cup holder in your vehicle and then attach the suction cup to the plate found on top. This is perfect when you need to attach your suction cup mount away from the windshield or when you just want the mount off the dash.
XM and Sirius Satellite Radio Mount Options:
To help ensure you have the XM and Sirius Satellite Radio Series Mount you require, take a look at the list of available RAM Satellite Radio mounts on the XM and Sirius Radio Series Mount Page. Here you can select from XM / Sirius Radio suction cup mounts, flat surface screw down XM / Sirius Radio mounts, XM / Sirius Radio car mounts, non skid weighted XM / Sirius Radio mounts and more bundled with the RAM-B-238-XM1 XM and Sirius Radio Series Cradle Plate.
|
Features & Tips |
Here is a listing we have put together of some of the common XM and Sirius Radio Pivot Arm Suction Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty
- Cradle Design: Plate and Hardware to connect to XM or Sirius Satellite Radio Cradle
- Cradle Material: High Strength Plastic Plate
- Mount Material: Black High Strength Plastic with Plastic and a Rubber Locking Suction Cup
- Mount Ball Size: RAM 1 inch Solid Rubber Ball
- Pivot Point Design: RAM Patented RAM 1 inch Rubber Ball and Socket Joint and Rotating Pivot Octagon Button
- Arm Type: RAM Arm with 1 inch diameter Socket and Octagon Button Socket
- Arm Length: Standard length of 1.75 inches between 1 inch socket center and button socket edge
- Base Type: Round 3.25 inch diameter Locking Suction Cup for non-porous surfaces
|
