Customer Rating:  (based on 4 reviews). Email:
 Print:
100% of our reviewers recommend this item. See more RAM Mount items. |
| |
| List Price: |
$38.21CDN |
| Our Price: |
$29.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$8.26CDN (22%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
|
|
| Model: |
RAM Mount XM and Sirius Radio Motorcycle Reservoir Mount |
| Part No: |
RAM-B-174-XM1U (also RAM-B-174-XM1) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Medium Arm: Overview (RAM-B-201U)
(21,924 views) |
RAM Motorcycle Kit: On Suzuki Reservoir (RAM-B-309 Series)
(18,942 views) |
RAM Motorcycle Kit: On Suzuki Handlebar (RAM-B-309 Series)
(4,579 views) |
RAM Motorcycle Base Kit: Overview (RAM-B-309-7)
(3,166 views) |
RAM Motorcycle Kit Mount: Overview (RAM-B-174U)
(4,161 views) |
|
Most Popular XM and Sirius Radio Motorcycle Reservoir Mount Accessories
» View the complete accessory list for the RAM Mount XM and Sirius Radio Motorcycle Reservoir Mount. |
RAM Mount Satellite Radio Antenna Plate
$5.06
|
RAM Mount Satellite Radio Magnet Antenna Plate
$4.91
|
RAM Mount Locking Suction Cup with 1.0 inch Ball Metal Plate
$13.95
|
RAM Mount Round Plate with 1 inch Ball RAM-B-202U
$6.10
|
RAM Mount Steel U-Bolt Motorcycle Mount Base RAM-B-231U
$12.95
|
|
What's Included In The Box? |
The RAM Mount XM and Sirius Radio Motorcycle Reservoir Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Satellite Radio Mounts |
| Model: |
RAM-B-174-XM1U |
SKU: |
RAMB174XM1 |
UPC: |
|
| Announced: |
January 15, 2007 |
First Shipped: |
October 15, 2004 |
Weight: |
0.740 lbs. |
Manufacturer Description |

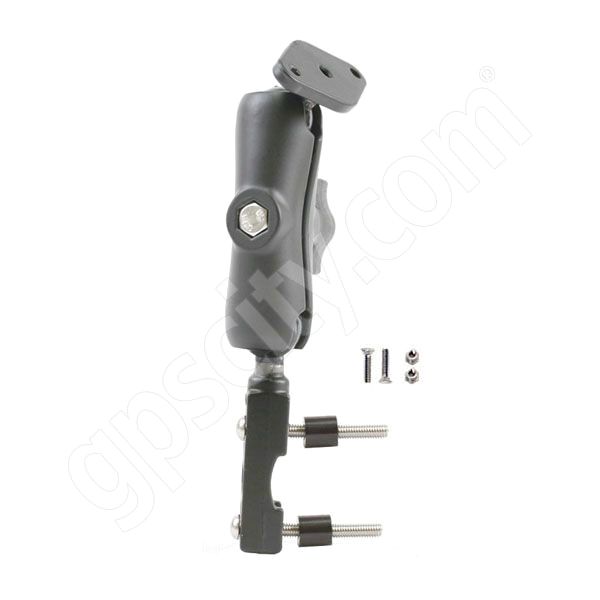

The RAM-B-174-XM1 RAM Mount Marine Grade Aluminum Motorcycle Brake/Clutch Base Mount consists of the 1 inch diameter RAM ball and socket system with RAM Aluminum Diamond Plate and Mounting Hardware. The RAM diamond plate and hardware connects to the back of the cradle included with the purchase of your XM or Sirius Radio.
XM and Sirius Satellite Radio Mount Cradle Design:
The RAM-B-238-XM1 RAM Mount Aluminum Diamond Plate with hardware (RAM-S-XM1), is a mounting plate designed to be connected to the back of your existing XM or Sirius Satellite Radio cradle. The RAM mounting plate has pre-drilled holes in each point of the diamond. The hole centers are 1.91 inches (48.5mm). Generally you will find a four hole pattern on the back of the satellite radio cradles. The diamond plate will connect to two of the diagonal holes with the included hardware. The XM / Siruis Satellite Radio Mounting plate works with:
- Delphi Roady and Roady 2 Cradle
- Delphi Roady XT Cradle
- Delphi SKYFi and SKYFi2 Cradle
- Delphi MyFi
- many more, including Sirius Radios, with cradles that have a hole spacing of 1.91'' (48.5mm)
XM and Sirius Satellite Radio Mount Plate Connections:
Delphi MyFi Cradle connected to the
RAM-B-238-XM1 Mounting Plate |
Delphi Roady Cradle connected to the
RAM-B-238-XM1 Mounting Plate |
XM and Sirius Satellite Radio Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
XM and Sirius Satellite Radio Mount Base Design:
 The RAM-B-309-7 RAM Mount Motorcycle Kit Base can mount to either the clutch/ brake reservoir or directly to a round handle bar rail. The base is constructed of marine grade aluminum with an integrated 1 inch diameter rubber ball, hardware for rail mounting and both standard and metric mounting bolts for motorcycle reservoir mounting. The zinc coated metal u-bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 1/2 to 1.25 inches.
The base connects to the left or right side of your handlebar clutch/brake reservoir on the Honda Goldwing and other select motorcycles or you can connect directly to your handlebars with the u-bolt hardware. To see if this base will work with your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94 inches and a maximum of 1.58 inches.
XM and Sirius Satellite Radio Mount Options:
To help ensure you have the XM and Sirius Satellite Radio Series Mount you require, take a look at the list of available RAM Satellite Radio mounts on the XM and Sirius Radio Series Mount Page. Here you can select from XM / Sirius Radio suction cup mounts, flat surface screw down XM / Sirius Radio mounts, XM / Sirius Radio car mounts, non skid weighted XM / Sirius Radio mounts and more bundled with the RAM-B-238-XM1 XM and Sirius Radio Series Cradle Plate.
|
Features & Tips |
Here is a listing we have put together of some of the common XM and Sirius Radio Motorcycle Reservoir Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty
- Cradle Design: Plate and Hardware to connect to XM or Sirius Satellite Radio Cradle
- Cradle Material: Black Powder Coated Marine Grade Aluminum Plate
- Mount Material: Black Powder Coated Marine Grade Aluminum
- Mount Ball Size: RAM 1 inch Solid Rubber Ball
- Pivot Point Design: RAM Patented RAM 1 inch Rubber Ball and Socket Joint
- Arm Type: RAM Arm with Dual 1 inch Sockets
- Arm Length: Standard length of 3 inches between socket centers
- Base Type: Motorcycle Brake/Clutch Reservoir Base
|
