Customer Rating:  (based on 3 reviews). Email:
 Print:
100% of our reviewers recommend this item. See more RAM Mount items. |
| |
| List Price: |
$34.40CDN |
| Our Price: |
$27.95CDN (and this item ships for $4.99. Learn more.) |
| You Save: |
$6.45CDN (19%) |
Availability: |
In Stock.
Ships from Calgary tomorrow, February 8. |
|
| |
| Model: |
RAM Mount Wide Plate Screw Down Mount RAM-B-111U |
| Part No: |
RAM-B-111U (also RAM-B-111) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
| Learn More with our Instructional Videos (More GPS City videos.
Visit our Youtube channel.) |
RAM Medium Arm: Overview (RAM-B-201U)
(20,565 views) |
RAM Rectangular Plate: Comparison Overview
(1,576 views) |
RAM Round Plate: Overview (RAM-B-202U)
(7,952 views) |
RAM AMPS Hole Pattern: Explained
(6,519 views) |
RAM Mount Plate: Overview (RAM-B-347)
(3,874 views) |
|
| What's Included In The Box? |
The RAM Mount Wide Plate Screw Down Mount RAM-B-111U ships with the following items included: |
| Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Marine Mounts |
| Model: |
RAM-B-111U |
SKU: |
RAMB111 |
UPC: |
793442101113 |
| Announced: |
November 30, 1999 |
First Shipped: |
August 10, 2001 |
Weight: |
0.725 lbs. |

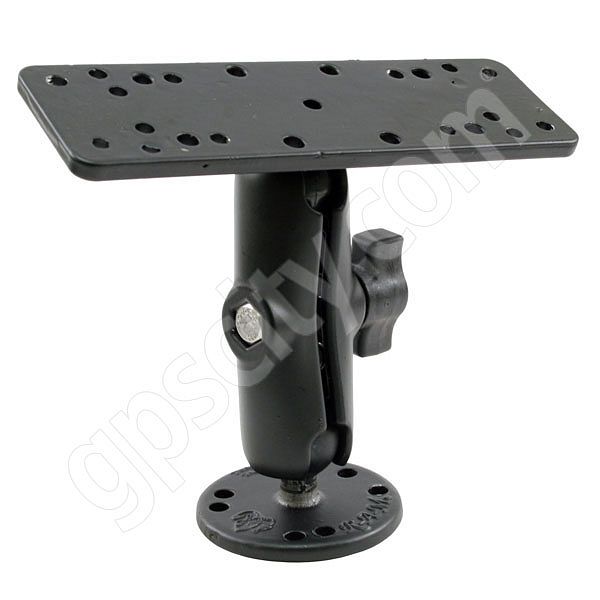

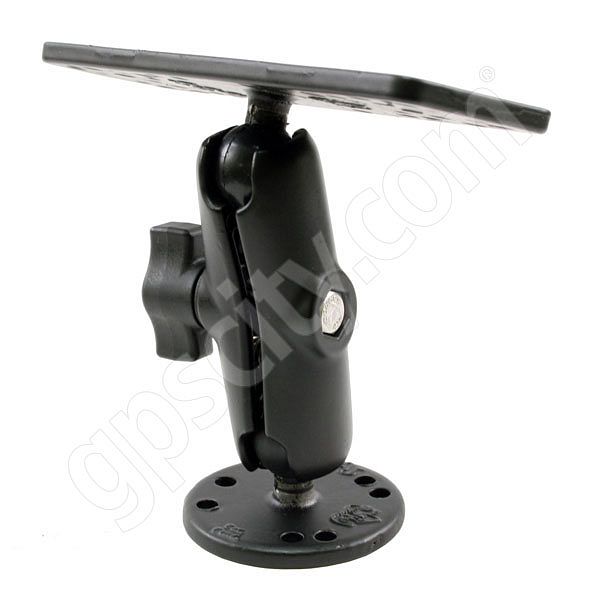

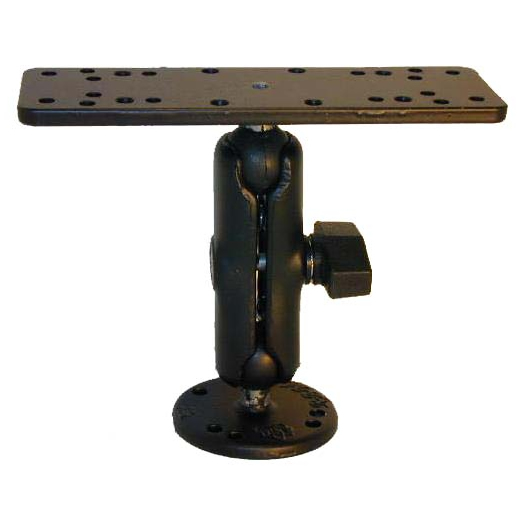

| RAM Mount Wide Plate Screw Down Mount RAM-B-111U Description |
The RAM-B-111 RAM Mount Marine Grade Aluminum Mount, with Screw Down Base, consists of the 1 inch diameter ball and socket system with RAM Universal Rectangular 6.25 x 2 inch Plate. This mount is designed to be a universal mounting solution for large electronic devices, including Marine GPS, CB Radios, Ham Radios and more. The hole pattern found on the rectangular plate will connect to a large variety of third party cradle, gimbal brackets and mounts.
Rectangular Universal Mount End Plate Design:The RAM-B-111B RAM Mount Marine Grade Aluminum Universal Rectangular Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 6.25 x 2 inch plate. The plate has many different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. For a layout of the hole spacing and 1 inch rubber ball location, take a closer look with the RAM-B-111B Design Drawings (pdf file).
Rectangular Universal Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Rectangular Universal Mount Base Design:
 The RAM-B-202 RAM Mount Marine Grade Aluminum Screw Down Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 2.5 inch diameter Plate. The plate has pre-drilled holes in the base plate, including the universal AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
Mount Base Mounting Solutions:Mounting hardware is NOT included with the purchase of the RAM-B-202. A semi-permanent solution for mounting this base is by using the RAM double sided adhesive disk (RAM-202PSA). The disk will hold the RAM-B-202 base in many different locations without screws.
Rectangular Universal Mount Options:To help ensure you have the Rectangular Universal Electronics and Marine Mount you require, take a look at the list of available RAM Universal Plate mounts on the Rectangular Universal Electronics and Marine Mount Page. Here you can select from suction cup mounts, flat surface screw down mounts, car mounts, pole/post mounts and more bundled with the RAM-B-111B Rectangular Universal Electronics and Marine Plate.
|
| RAM Mount Wide Plate Screw Down Mount RAM-B-111U Features & Tips |
Here is a listing we have put together of some of the common Wide Plate Screw Down Mount RAM-B-111U features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty
- Cradle Design: Rectangular Plate to connect Marine GPS, CB Radios, Ham Radios and more
- Cradle Material: Black Powder Coated Marine Grade Aluminum Plate
- Mount Material: Black Powder Coated Marine Grade Aluminum
- Mount Ball Size: RAM 1 inch Solid Rubber Ball
- Pivot Point Design: RAM Patented RAM 1 inch Rubber Ball and Socket Joint
- Arm Type: RAM Arm with Dual 1 inch Sockets
- Arm Length: Standard length of 3 inches between socket centers
- Base Type: Round 2.5 inch diameter Plate design to be bolted to a flat surface
|
