Customer Images
Share your images and get a
free gpscity.ca t-shirt!
|
Customer Rating:   (based on 22 reviews). Email:
 Print:
86% of our reviewers recommend this item. See more RAM Mount items. |
| |
| List Price: |
$96.01CDN |
| Our Price: |
$72.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$23.06CDN (24%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
|
|
| Model: |
RAM Mount Waterproof Aqua Box 6 Stainless Steel U-Bolt Mount |
| Part No: |
RAM-B-149-AQ6U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Aqua Box 6: In the Box (RAM-HOL-AQ6)
(7,512 views) |
RAM Aqua Box Flex Lens: Installation (RAM-HOL-AQ6L)
(14,765 views) |
RAM Rectangular Plate: Comparison Overview
(2,134 views) |
RAM Round Plate: Overview (RAM-B-202U)
(8,290 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
|
What's Included In The Box? |
The RAM Mount Waterproof Aqua Box 6 Stainless Steel U-Bolt Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Waterproof Mounts |
| Model: |
RAM-B-149-AQ6U |
SKU: |
RAMB149AQ6 |
UPC: |
|
| Announced: |
April 15, 2008 |
First Shipped: |
April 15, 2008 |
Weight: |
1.200 lbs. |
Manufacturer Description |

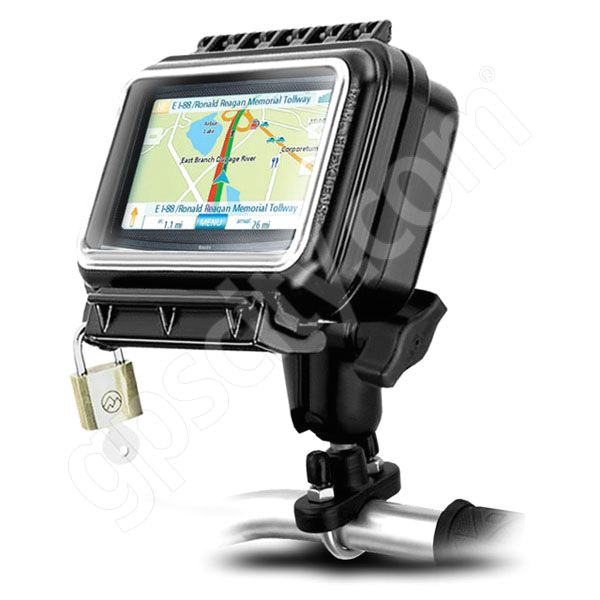

The RAM-B-149-AQ6 Waterproof Wide Aqua Box 6 Motorcycle RAM Mount is a Marine Grade Aluminum Mount with a Stainless Steel U-Bolt Rail Base and Universal Plastic RAM Aqua Box for GPS. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Universal Plastic RAM Aqua Box mount to your optimum viewing position.
Aqua Box Mount Options:
To help ensure you have the Aqua Box Mount you require, take a look at the list of available mounts on the RAM Mount Waterproof Aqua Box Cradles and Mounts Page. Here you can select the right Aqua Box size and then the right mount. We offer suction cup Aqua Box mounts, flat surface screw down Aqua Box mounts, Aqua Box car mounts, motorcycle Aqua Box mounts, ATV and UTV Aqua Box mounts and more bundled with the RAM-HOL-AQ6 Waterproof Aqua Box 6 Wide/Medium Cradle.
Aqua Box Mount Cradle Design:
 The RAM-HOL-AQ6 RAM Mount High Strength Plastic Waterproof Aqua Box 6 Wide Medium Cradle is designed to hold a large number of different kinds of electronic devices including the thin touch screen style GPS units. The Aqua Box 6 cradle is a waterproof box with a clear Flex-Lens allowing you to press and operate the buttons of your device, when in the Aqua Box.
The Aqua Box 6 Waterproof Cradle is perfect for holding many small sized electronic devices like:
- Garmin Nuvi series
- TomTom ONE series
- Other similar GPS units
Using the Cradle:
The face of the Aqua Box 6 is a door, allowing you to place your electronic device in the cradle. If required, you can lock the box, with a small padlock, once closed. Inside the RAM Aqua Box are padded sheets enabling you to place your electronic device in the box firmly and securely. You can punch out the back of the Aqua Box to allow cables you be connected to you device, while maintaining a waterproof environment.
Aqua Box 6 Internal Dimensions:
4 W x 6 H x 1.75 D inches
Aqua Box Mount Cradle Plate:
 The RAM-B-202 RAM Mount Marine Grade Aluminum Round Plate is designed to connected to the back of cradles with an AMPS hole pattern. The round plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
Aqua Box Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Aqua Box Mount Base Design:
 The RAM-B-231 RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Stainless Steel U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
NOTE: This base is completely rust proof.
For Larger Rail Mounting:
For a larger rail, you can purchase the RAM Mount Stainless Steel Large Rail U-Bolt for circular rails with diameter up to 1.25 inches.
|
Features & Tips |
Here is a listing we have put together of some of the common Waterproof Aqua Box 6 Stainless Steel U-Bolt Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Waterproof Aqua Box for GPS and other standard shaped devices.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Motorcycle Handlebar Base or Universal Round Pipe Base with Stainless Steel U-Bolt. (0.75 to 1 inch wide)
- Common Applications:
- Motorcycle and ATV Mounts: Attaching to handlebars.
- Hiking Mounts: Attaching to hiking staffs.
- General Mounts: Attaching to available pipes or poles.
|
