| Model: |
RAM Mount Waterproof Aqua Box 6 Locking Suction Mount |
| Part No: |
RAM-B-166-AQ6U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Aqua Box 6: In the Box (RAM-HOL-AQ6)
(7,512 views) |
RAM Aqua Box Flex Lens: Installation (RAM-HOL-AQ6L)
(14,765 views) |
RAM Rectangular Plate: Comparison Overview
(2,134 views) |
RAM Round Plate: Overview (RAM-B-202U)
(8,290 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
|
Most Popular Waterproof Aqua Box 6 Locking Suction Mount Accessories
» View the complete accessory list for the RAM Mount Waterproof Aqua Box 6 Locking Suction Mount. |
GPS City Super Grip Dashboard Friction Mount Base
$14.95
|
RAM Mount Black Rose Adhesive Plate for Suction Cups
$6.95
|
RAM Mount Black Large Adhesive Plate for Suction Cups
$6.95
|
RAM Mount Clear Large Adhesive Plate for Suction Cups
$5.95
|
RAM Mount RAM-A-CAN II Vehicle Cup Flat Surface Base
$28.95
|
|
What's Included In The Box? |
The RAM Mount Waterproof Aqua Box 6 Locking Suction Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Waterproof Mounts |
| Model: |
RAM-B-166-AQ6U |
SKU: |
RAMB166AQ6 |
UPC: |
|
| Announced: |
April 15, 2008 |
First Shipped: |
April 15, 2008 |
Weight: |
1.301 lbs. |
Manufacturer Description |

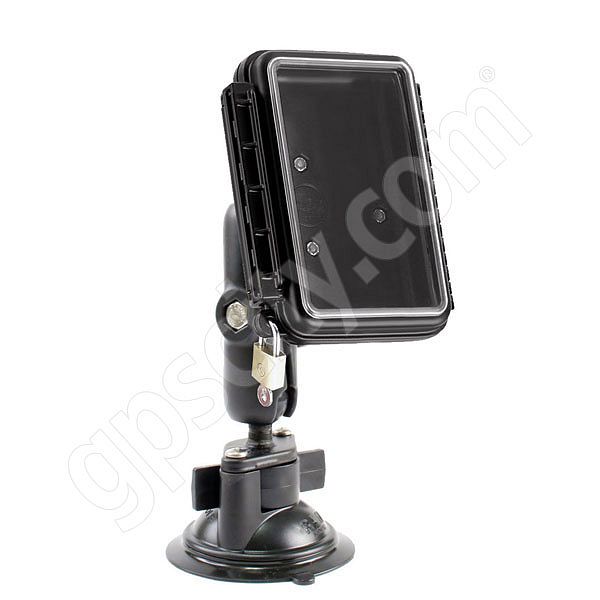

The RAM-B-166-AQ6 Waterproof Wide Aqua Box 6 Windshield Suction RAM Mount is a Marine Grade Aluminum Mount with a Locking Suction Cup Base and Universal Plastic RAM Aqua Box for GPS. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Waterproof Wide Aqua Box 6 mount to your optimum viewing position.
Note: This mount does not require any drilling for installation.
Aqua Box Mount Options:
To help ensure you have the Aqua Box Mount you require, take a look at the list of available mounts on the RAM Mount Waterproof Aqua Box Cradles and Mounts Page. Here you can select the right Aqua Box size and then the right mount. We offer suction cup Aqua Box mounts, flat surface screw down Aqua Box mounts, Aqua Box car mounts, motorcycle Aqua Box mounts, ATV and UTV Aqua Box mounts and more bundled with the RAM-HOL-AQ6 Waterproof Aqua Box 6 Wide/Medium Cradle.
Aqua Box Mount Cradle Design:
 The RAM-HOL-AQ6 RAM Mount High Strength Plastic Waterproof Aqua Box 6 Wide Medium Cradle is designed to hold a large number of different kinds of electronic devices including the thin touch screen style GPS units. The Aqua Box 6 cradle is a waterproof box with a clear Flex-Lens allowing you to press and operate the buttons of your device, when in the Aqua Box.
The Aqua Box 6 Waterproof Cradle is perfect for holding many small sized electronic devices like:
- Garmin Nuvi series
- TomTom ONE series
- Other similar GPS units
Using the Cradle:
The face of the Aqua Box 6 is a door, allowing you to place your electronic device in the cradle. If required, you can lock the box, with a small padlock, once closed. Inside the RAM Aqua Box are padded sheets enabling you to place your electronic device in the box firmly and securely. You can punch out the back of the Aqua Box to allow cables you be connected to you device, while maintaining a waterproof environment.
Aqua Box 6 Internal Dimensions:
4 W x 6 H x 1.75 D inches
Aqua Box Mount Cradle Plate:
 The RAM-B-202 RAM Mount Marine Grade Aluminum Round Plate is designed to connected to the back of cradles with an AMPS hole pattern. The round plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
Aqua Box Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Aqua Box Mount Base Design:
 The RAM-B-224-1 RAM Mount Plastic Locking 3.25 inch diameter Rubber Suction Cup Base, with Marine Grade Aluminum Diamond Plate, is designed to have an extra strong hold on any smooth non-porous surface. With a twist on the locking knob, the suction cup base adheres to any glass¹ or non-porous plastic surface, as found on our Non Skid Base with Plastic Disk and Plastic Adhesive Disk.
Connected to the top of the Suction Cup is a RAM-B-238 RAM Mount Marine Grade Aluminum Diamond Plate with 1 inch diameter Rubber Ball. This plate allows the suction cup to join to an open socket found on the RAM 1 inch diameter socket arms.
¹ Important legal note to California and Minnesota Drivers
Suction Cup Base Mounting Options:We currently offer three alternative solutions for mounting your suction cup mount in a location other than a windshield:
- The Super Grip Non Skid Base with round plastic plate, is a weighted base that can be placed on your dash without an adhesive or drilling. Simply place the base on your dash, or any flat surface and then attach the suction cup to the round plastic plate. This is perfect when you want a temporary mounting solution but the windshield mount just isn't the answer.
- The Suction Cup Adhesive Disk with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply stick the the plate to any flat surface and then attach the suction cup to the plate. This is perfect when you need to attach your suction cup mount to your car dash vertically or horizontally, rather than to your windshield.
- The Suction Cup Drink Cup Holder with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply place the base into any cup holder in your vehicle and then attach the suction cup to the plate found on top. This is perfect when you need to attach your suction cup mount away from the windshield or when you just want the mount off the dash.
|
Features & Tips |
Here is a listing we have put together of some of the common Waterproof Aqua Box 6 Locking Suction Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Waterproof Aqua Box for GPS and other standard shaped devices.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum and Plastic and Rubber Locking Suction Cup.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Round 3.25 inch diameter Locking Suction Cup for non-porous surfaces
- Common Applications:
|
