Customer Images
Share your images and get a
free gpscity.ca t-shirt!
|
Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$74.87CDN |
| Our Price: |
$53.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$20.92CDN (28%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
| Model: |
RAM Mount Waterproof Aqua Box 3 ATV UTV Strap Mount |
| Part No: |
RAM-B-149Z-2-AQ3 (also RAM-B-149Z-2-AQ3U) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Aqua Box Flex Lens: Installation (RAM-HOL-AQ3L)
(14,776 views) |
RAM Rectangular Plate: Comparison Overview
(2,139 views) |
RAM Round Plate: Overview (RAM-B-202U)
(8,291 views) |
RAM AMPS Hole Pattern: Explained
(8,016 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,889 views) |
|
What's Included In The Box? |
The RAM Mount Waterproof Aqua Box 3 ATV UTV Strap Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Waterproof Mounts |
| Model: |
RAM-B-149Z-2-AQ3 |
SKU: |
RAMB149Z-2AQ3 |
UPC: |
793442916182 |
| Announced: |
April 15, 2008 |
First Shipped: |
April 15, 2008 |
Weight: |
1.282 lbs. |
Manufacturer Description |

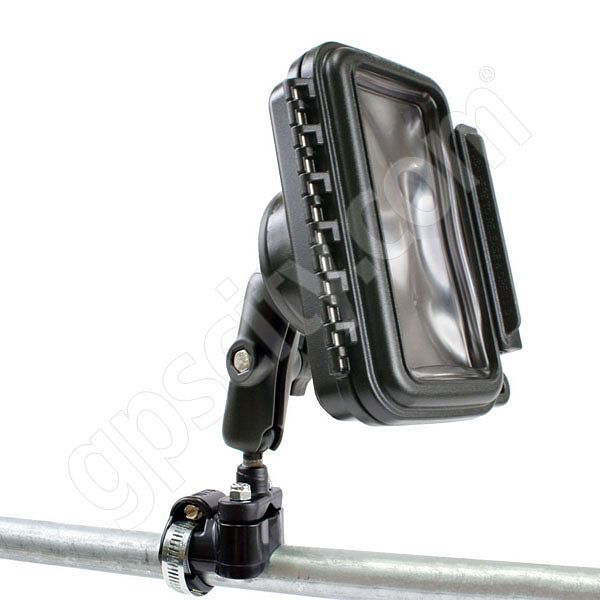

The RAM-B-149Z-2-AQ3 Waterproof Wide Aqua Box 6 ATV and UTV RAM Mount is a Marine Grade Aluminum Mount with a Steel Clamp Strap Base and Universal Plastic RAM Aqua Box for iPod nano and other small sized devices. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Universal Plastic RAM Aqua Box mount to your optimum viewing position.
Aqua Box Mount Options:
To help ensure you have the Aqua Box Mount you require, take a look at the list of available mounts on the RAM Mount Waterproof Aqua Box Cradles and Mounts Page. Here you can select the right Aqua Box size and then the right mount. We offer suction cup Aqua Box mounts, flat surface screw down Aqua Box mounts, Aqua Box car mounts, motorcycle Aqua Box mounts, ATV and UTV Aqua Box mounts and more bundled with the RAM-HOL-AQ3 Waterproof Aqua Box 3 Small Wide Cradle.
Aqua Box Mount Cradle Design:
The RAM Mount RAM-HOL-AQ3 High Strength Plastic Aqua Box 3 Small Cradle is designed to hold a large number of different kinds of electronic devices. The Aqua Box 1 cradle is a large waterproof box with a clear Flex-Lens allowing you to press and operate the buttons of your device, when in the Aqua Box.
The Aqua Box 3 Waterproof Cradle is perfect for holding many small sized electronic devices like:
- Apple iPod Mini
- Sandisk Sansa
Using the Cradle:
The face of the Aqua Box 3 is a door, allowing you to place your electronic device in the cradle. If required, you can lock the box, with a small padlock, once closed. Inside the RAM Aqua Box are padded sheets enabling you to place your electronic device in the box firmly and securely. You can punch out the back of the Aqua Box to allow cables you be connected to you device, while maintaining a waterproof environment.
Aqua Box 3 Internal Dimensions: 2.38 W x 4.63 H x 1.13 D inches
Aqua Box Mount Cradle Plate:
 The RAM-B-202 RAM Mount Marine Grade Aluminum Round Plate is designed to connected to the back of cradles with an AMPS hole pattern. The round plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
Aqua Box Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Aqua Box Mount Base Design:
 The RAM-B-231-2 Marine Grade Aluminum Utility Strap Clamp Base has a 1.0 inch diameter Rubber Ball connected at right angles. The Strap Base tightening screw is encased in a compact housing for a clean, safe finish. The strap is long enough to wrap around handle bar posts found on most ATV, UTV, Snowmobiles, Motorcycles and any other applications you can think of.
Strap Dimensions: 1.57'' (40mm) to a maximum of 3.15'' (80mm).
|
Features & Tips |
Here is a listing we have put together of some of the common Waterproof Aqua Box 3 ATV UTV Strap Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Waterproof Aqua Box for iPod nano and other small standard shaped devices.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Motorcycle Handlebar Base or Universal Round Pipe Base with Zinc Coated U-Bolt. (0.75 to 1 inch wide)
- Common Applications:
- ATV and UTV Mounts: Attaching to handlebars.
- Motorcycle Mounts: Attaching to handlebars.
- Snowmobile Mounts: Attaching to handlebars.
- General Mounts: Attaching to available pipes or poles.
|
