| Model: |
RAM Mount Universal Top Clamp PDA Suction Cup Mount |
| Part No: |
RAM-B-148-PD1U (also RAM-B-148-PD1) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,599 views) |
RAM AMPS Hole Pattern: Explained
(8,016 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,889 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,924 views) |
Check out our
channel. |
|
What's Included In The Box? |
The RAM Mount Universal Top Clamp PDA Suction Cup Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
PDA Mounts |
| Model: |
RAM-B-148-PD1U |
SKU: |
RAMB148PD1 |
UPC: |
793442148149 |
| Announced: |
November 30, 1999 |
First Shipped: |
October 1, 2001 |
Weight: |
0.812 lbs. |
RAM Mount Universal Top Clamp PDA Suction Cup Mount Alternative Models |
RAM Mount Universal Top Clamp PDA Suction Cup Mount |
RAM Mount GPS 12 and 38 Series Bike Rail Mount |
RAM Mount Universal Top Clamp PDA Locking Suction Cup Mount |
RAM Mount Plastic Universal Top Clamp PDA Suction Cup Mount | | |
|
Manufacturer Description |

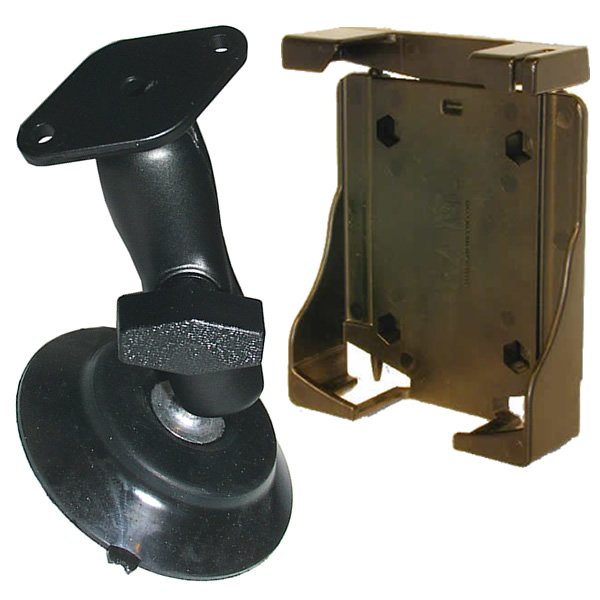

The RAM-B-148-PD1U Universal PDA Cradle RAM Mount is a Marine Grade Aluminum Mount with a Large 4 inch diameter Suction Cup Base and RAM Top Clamping Plastic Cradle. The mount is designed with a RAM 1.0 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. The 1.0 inch diameter B size ball and socket system give the mount an approximate holding weight of up to 5 lbs. With a twist of the arm knob, you can move the Universal PDA Cradle Mount to your optimum viewing position.
Universal PDA Mount Cradle Design:
 The RAM-HOL-PD1 RAM Mount high strength plastic top clamping cradle is designed to hold a large amount of different kinds of electronic devices, especially PDAs. For a layout of the dimensions RAM-HOL-PD1 cradle, take a closer look with the RAM-HOL-PD1 Design Drawings (pdf file).
Cradle Dimensions:
- Cradle Height Range: 4.38 to 5.75 inches
- Cradle Maximum Width: 3.39 inches
- Cradle Maximum Thickness: 0.87 inches
Universal PDA Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Universal PDA Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Universal PDA Mount Base Design:
 The large 4 inch Rubber Suction Cup base has a 1.0'' diameter Rubber Ball connected at right angles. The suction cup is designed to hold on any smooth non-porous surface, but for best result, mount the suction cup on a glass surface ¹ . For a layout of the suction cup dimensions and design, take a closer look with the RAM-B-224 Large Suctiobn Cup Base Design Drawings (pdf file).
¹ Important legal note to California and Minnesota Drivers
Note: Overtime the suction cup may become dirty, and not hold as well. If this happens, you will need to wash it in warm soapy water, and the mounting surface may need to be wiped with a cleaner (alcohol works best). Be sure to test a small area of the mounting surface before applying a cleaner as they can mark or discolor some materials (like plastic).
|
Features & Tips |
Here is a listing we have put together of some of the common Universal Top Clamp PDA Suction Cup Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Lifetime Warranty.
- Cradle Design: Universal Top Clamping PDA Cradle.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Round 4 inch diameter rubber suction cup.
- Common Applications:
- Vehicle Mounts: Attaching to vehicle windshield.
- Aviation Mounts: Attaching to windshield.
|
