| List Price: |
$82.65CDN |
| Our Price: |
$67.95CDN (and this item ships for $4.99. Learn more.) |
| You Save: |
$14.70CDN (18%) |
Availability: |
Please call 1-866-GPS-CITY for availability. |
|
| |
| Model: |
RAM Mount Universal Spring Grip Vehicle Floor Mount |
| Part No: |
RAM-B-316-1-PD2U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
| Learn More with our Instructional Videos (More GPS City videos.
Visit our Youtube channel.) |
RAM Diamond Plate: Overview (RAM-B-238U)
(20,235 views) |
RAM AMPS Hole Pattern: Explained
(6,550 views) |
RAM Mount Plate: Overview (RAM-B-347)
(3,889 views) |
RAM Vehicle RAM-POD Mounting Base: Overview (RAM-316-1A)
(1,790 views) |
See More Videos:
GPS City Video Page
 |
|
| What's Included In The Box? |
The RAM Mount Universal Spring Grip Vehicle Floor Mount ships with the following items included: |
| Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Universal Mounts |
| Model: |
RAM-B-316-1-PD2U |
SKU: |
RAMB316-1PD2 |
UPC: |
0 |
| Announced: |
January 1, 2007 |
First Shipped: |
January 1, 2007 |
Weight: |
1.357 lbs. |
| RAM Mount Universal Spring Grip Vehicle Floor Mount Description |

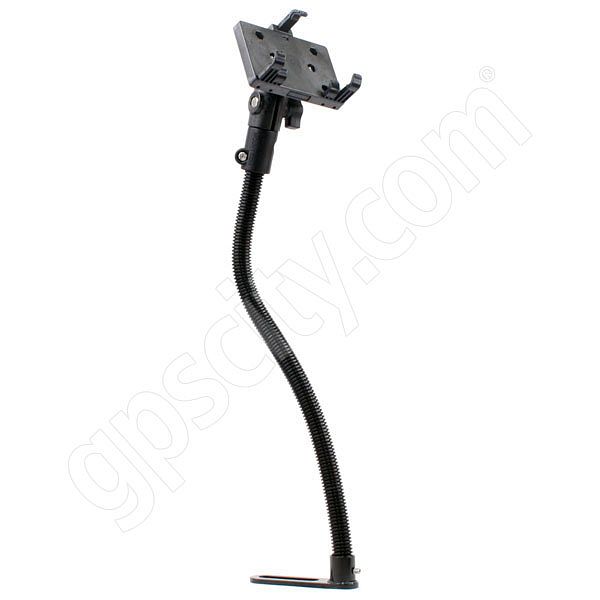

The RAM-B-316-1-PD2 RAM-POD-I Flex Rod Vehicle Floor Mount consists of a RAM 1 inch diameter RAM ball and socket system on a 18 inch long Aluminum Flexible Rod with a RAM Universal Side Clamping Plastic Cradle for PDA Units.
Universal PDA Mount Cradle Design:
 The RAM-HOL-PD2 RAM Mount High Strength Plastic Side Clamping Cradle is designed to hold a large amount of different kinds of electronic devices, like PDAs and Portable Entertainment Systems (Sony PSP).
Cradle Clamping Dimensions:
- Cradle Height Range: Open
- Cradle Holding Width: 2 7/8 - 3.5 inches
- Cradle Holding Thickness: 3/8 - 1 1/8 inches
Included with the Cradle:
The cradle includes three (3) sets of side clamping arms. Each set of arms includes three (3) individual arms which connect to the slots on the side of the cradle. The arms have a rubber tip for an optimum hold, and you can remove and change the arms so you can find the right clamping hold for you device. The arms come in three (3) different lengths:
- Short Arm Length: 1/2 inch
- Medium Arm Length: 7/8 inch
- Long Arm Length: 1 3/16 inches
Universal PDA Mount Arm Design: The RAP-B-200-1 RAM Mount High Strength Plastic Single Socket Short Arm has a B Size 1 inch Ball Socket at one end, and a Female Octagon button connection at the other. The Octagon Button end will mount on the end of the Aluminum Flex Rod, allowing the 1 inch socket to hold your device cradle or plate. The side of the arm includes a tightening knob which allows you to open and close the socket end.
Universal PDA Mount Base Design: The RAM-316-1A RAM Mount Rigid Arm Base consists of a RAM octagon at the end of a 18 inch rigid flex arm with seat rail base. The RAM-POD-I mounting foot plate base is designed to connect to a vehicle seat rail bolt in your Car, Truck, SUV, RV, Big Rig or bolted location. Connected at right angles to the mounting foot is an 18 inch long Aluminum Flexible Rod. This rod can hold light to medium weight items in your vehicle safely and securely. At the top of the rigid flex rod is a male RAM High Strength Plastic Octagon Button that will connect directly to a RAM Female Octagon Button Arm.
Movement of the Rigid 18 inch Flex Arm:It is important to note that the rigid 18 inch flex arm found on this mount is designed to hold an approximate weight of up to 4 lbs. With this in mind, the aluminum rod is more rigid than flexible. It is designed to be bent into position when being installed and then hold it's position. This means you cannot move the mount around once installed with just one hand.
|
