| Model: |
RAM Mount Universal Side Clamp PDA Stainless Steel U-Bolt Mount |
| Part No: |
RAM-B-149-PD2U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,599 views) |
RAM AMPS Hole Pattern: Explained
(8,016 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,889 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,924 views) |
RAM Motorcycle U-Bolt Base: On Suzuki (RAM-B-231U)
(25,254 views) |
|
What's Included In The Box? |
The RAM Mount Universal Side Clamp PDA Stainless Steel U-Bolt Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Universal Mounts |
| Model: |
RAM-B-149-PD2U |
SKU: |
RAMB149PD2 |
UPC: |
|
| Announced: |
November 30, 1999 |
First Shipped: |
July 24, 2003 |
Weight: |
0.857 lbs. |
RAM Mount Universal Side Clamp PDA Stainless Steel U-Bolt Mount Alternative Models |
RAM Mount Side Clamp PDA Zinc U-Bolt Mount |
RAM Mount Universal Side Clamp PDA Stainless Steel U-Bolt Mount |
RAM Mount RAP-B-149-PD2 | | | |
|
Manufacturer Description |

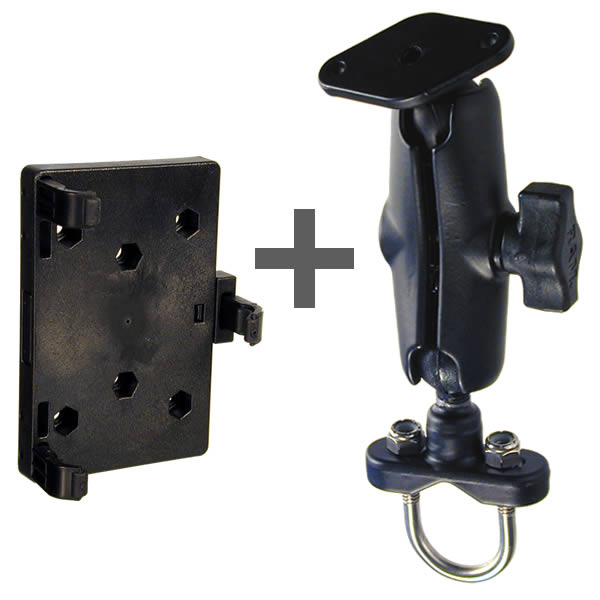

The RAM Marine Grade Aluminum Mount with Stainless Steel U-Bolt Rail Base consists of the 1'' dia. ball and socket system with RAM Universal Side Clamping Plastic Cradle for PDA Units.
BASE DESIGN:
 The RAM-B-231 RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Stainless Steel U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
NOTE: This base is completely rust proof.
For Larger Rail Mounting:
For a larger rail, you can purchase the RAM Mount Stainless Steel Large Rail U-Bolt for circular rails with diameter up to 1.25 inches.
ARM DESIGN:
The Powder Coated Marine Grade Aluminum Standard Length Double Socket Arm is 3.0'' long when measured between socket centers.
CRADLE DESIGN:
 The RAM-HOL-PD2 RAM Mount High Strength Plastic Side Clamping Cradle is designed to hold a large amount of different kinds of electronic devices, like PDAs and Portable Entertainment Systems (Sony PSP).
Cradle Clamping Dimensions:
- Cradle Height Range: Open
- Cradle Holding Width: 2 7/8 - 3.5 inches
- Cradle Holding Thickness: 3/8 - 1 1/8 inches
Included with the Cradle:
The cradle includes three (3) sets of side clamping arms. Each set of arms includes three (3) individual arms which connect to the slots on the side of the cradle. The arms have a rubber tip for an optimum hold, and you can remove and change the arms so you can find the right clamping hold for you device. The arms come in three (3) different lengths:
- Short Arm Length: 1/2 inch
- Medium Arm Length: 7/8 inch
- Long Arm Length: 1 3/16 inches
|
