| Model: |
RAM Mount Universal Medium Clamp Cradle Vehicle Floor Mount |
| Part No: |
RAM-B-316-1-UN2U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Universal Grip Cradle: In Use (RAM-HOL-UN2)
(1,652 views) |
RAM Universal Grip Cradle: Dimensions (RAM-HOL-UN2)
(795 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,594 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
|
What's Included In The Box? |
The RAM Mount Universal Medium Clamp Cradle Vehicle Floor Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Universal Mounts |
| Model: |
RAM-B-316-1-UN2U |
SKU: |
RAMB316-1UN2 |
UPC: |
0 |
| Announced: |
January 1, 2007 |
First Shipped: |
January 1, 2007 |
Weight: |
1.350 lbs. |
Manufacturer Description |

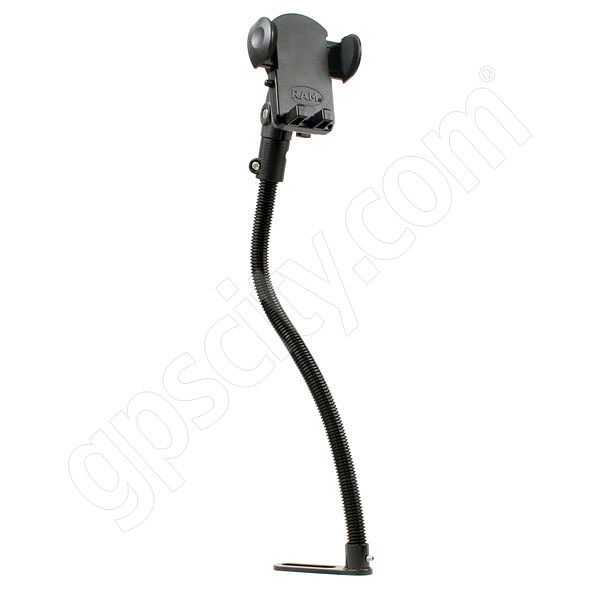

The RAM-B-316-1-UN2 RAM-POD-I Flex Rod Vehicle Floor Mount consists of a RAM 1 inch diameter RAM ball and socket system on a 18 inch long Aluminum Flexible Rod with a RAM Plastic Universal Medium Side Clamping Cradle.
Universal Clamp Mount Cradle Design:
 The RAM-HOL-UN2 Medium RAM Plastic Side Clamping Cradle is designed to hold a large amount of different kinds of cell phones and electronic devices.
Using the Cradle:
This cradle has padded locking side clamps that close tightly on the item you want to hold. To release the clamp hold, simply press the button found at the bottom of the back of the cradle which will spring the clamps open. At the base of the cradle is a small support to hold the bottom of the item securely in the cradle. This RAM universal side clamping cradle is designed to be used in a closed cabin, low vibration environment. This system is not recommended as a motorcycle mount.
Universal Cradle Dimensions:
- Minimum Grip Width: 1.5''
- Maximum Grip Width: 2.6''
- Side Clamp Height: 1.88''
- Side Clamp Depth: 1.13''
- Cradle Spine Height: 3.68''
- Cradle Spine Width: 2.0''
NOTE: The top of the cradle is open, so the items in the cradle can be larger than the height of the cradle.
Universal Clamp Mount Arm Design: The RAP-B-200-1 RAM Mount High Strength Plastic Single Socket Short Arm has a B Size 1 inch Ball Socket at one end, and a Female Octagon button connection at the other. The Octagon Button end will mount on the end of the Aluminum Flex Rod, allowing the 1 inch socket to hold your device cradle or plate. The side of the arm includes a tightening knob which allows you to open and close the socket end.
Universal Clamp Mount Base Design: The RAM-316-1A RAM Mount Rigid Arm Base consists of a RAM octagon at the end of a 18 inch rigid flex arm with seat rail base. The RAM-POD-I mounting foot plate base is designed to connect to a vehicle seat rail bolt in your Car, Truck, SUV, RV, Big Rig or bolted location. Connected at right angles to the mounting foot is an 18 inch long Aluminum Flexible Rod. This rod can hold light to medium weight items in your vehicle safely and securely. At the top of the rigid flex rod is a male RAM High Strength Plastic Octagon Button that will connect directly to a RAM Female Octagon Button Arm.
Movement of the Rigid 18 inch Flex Arm:It is important to note that the rigid 18 inch flex arm found on this mount is designed to hold an approximate weight of up to 4 lbs. With this in mind, the aluminum rod is more rigid than flexible. It is designed to be bent into position when being installed and then hold it's position. This means you cannot move the mount around once installed with just one hand.
|
