What's Included In The Box? |
The RAM Mount Universal Large Cradle Zinc U-Bolt Rail Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Universal Mounts |
| Model: |
RAM-B-149Z-UN3U |
SKU: |
RAMB149ZUN3 |
UPC: |
|
| Announced: |
January 1, 2007 |
First Shipped: |
January 1, 2007 |
Weight: |
0.869 lbs. |
Manufacturer Description |

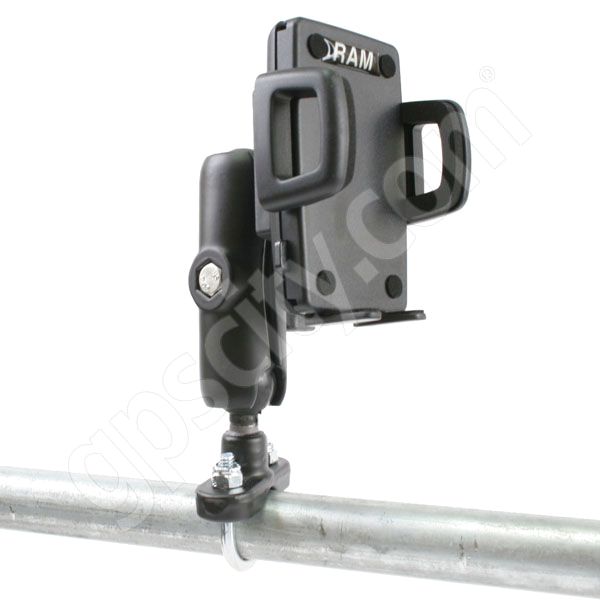

The RAM-B-149Z-UN3 Universal Clamping Cradle Motorcycle RAM Mount is a Marine Grade Aluminum Mount with a Zinc Coated U-Bolt Rail Base. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the universal cradle mount to your optimum viewing position.
Universal Mount Options:
 To help ensure you have the Universal Mount you require, take a look at the list of available RAM universal large clamping cradle mounts on the RAM-HOL-UN3 Series of large universal cradles and mounts Page. Here you can select from suction cup universal mounts, flat surface screw down universal mounts, universal car mounts, non skid weighted universal mounts and more bundled with the RAM-HOL-UN3 Universal Series Cradle. Alternatively, you can review the complete list of RAM universal cradles and mounts.
Universal Mount Cradle Design:
 The RAM-HOL-UN3 Large RAM Plastic Side Clamping Cradle is designed to hold a large amount of different kinds of cell phones and electronic devices, including the Blackberry range of Phones
Using the Cradle:
This cradle has padded locking side clamps that close tightly on the item you want to hold. To release the clamp hold, simply press the button found at the bottom of the back of the cradle which will spring the clamps open. At the base of the cradle are two small support legs that move along the base edge of the cradle. The legs support the bottom of the item securely in the cradle, while allowing cable connection to the unit. This RAM universal side clamping cradle is designed to be used in a closed cabin, low vibration environment. This system is not recommended as a motorcycle mount.
Universal Cradle Dimensions:
- Minimum Grip Width: 2.32''
- Maximum Grip Width: 3.37''
- Side Clamp Height: 1.75''
- Side Clamp Depth: 0.93''
- Cradle Spine Height: 3.92''
- Cradle Spine Width: 2.25''
NOTE: The top of the cradle is open, so the items in the cradle can be larger than the height of the cradle.
Universal Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Universal Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Universal Mount Base Design:
 The RAM-B-231Z RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated metal U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
Note: If you are looking to use this mount in the elements, we suggest the RAM-B-231 Stainless Steel U-Bolt Mount.
|
