RAM Universal Grip Cradle: In Use (RAM-HOL-UN3)
(2,747 views) |
RAM Universal Grip Cradle: Dimensions (RAM-HOL-UN3)
(1,403 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,599 views) |
RAM AMPS Hole Pattern: Explained
(8,016 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,889 views) |
|
What's Included In The Box? |
The RAM Mount Universal Large Cradle Stainless Steel U-Bolt Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Universal Mounts |
| Model: |
RAM-B-149-UN3U |
SKU: |
RAMB149UN3 |
UPC: |
|
| Announced: |
January 1, 2007 |
First Shipped: |
January 1, 2007 |
Weight: |
0.800 lbs. |
Manufacturer Description |

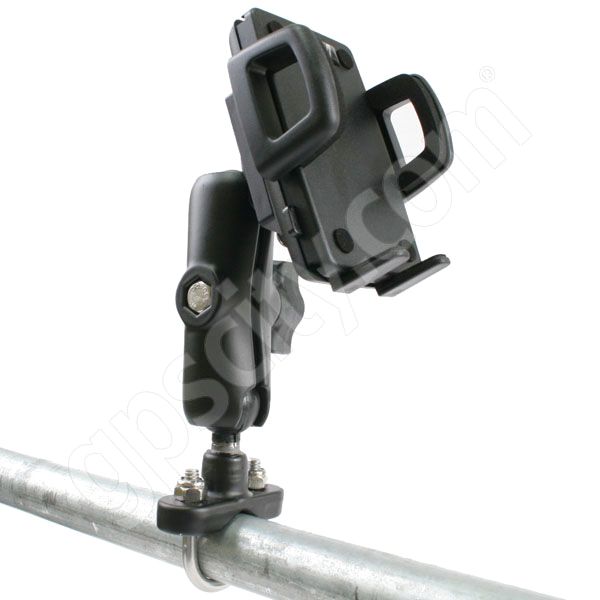

The RAM Marine Grade Aluminum Mount with Stainless Steel U-Bolt Rail Base consists of the 1'' dia. ball and socket system with RAM Universal Small Side Clamping Plastic Cradle.
BASE DESIGN:
 The RAM-B-231 RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Stainless Steel U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
NOTE: This base is completely rust proof.
For Larger Rail Mounting:
For a larger rail, you can purchase the RAM Mount Stainless Steel Large Rail U-Bolt for circular rails with diameter up to 1.25 inches.
ARM DESIGN:
The Powder Coated Marine Grade Aluminum Standard Length Double Socket Arm is 3.0'' long when measured between socket centers.
CRADLE DESIGN:
 The RAM-HOL-UN3 Large RAM Plastic Side Clamping Cradle is designed to hold a large amount of different kinds of cell phones and electronic devices, including the Blackberry range of Phones
Using the Cradle:
This cradle has padded locking side clamps that close tightly on the item you want to hold. To release the clamp hold, simply press the button found at the bottom of the back of the cradle which will spring the clamps open. At the base of the cradle are two small support legs that move along the base edge of the cradle. The legs support the bottom of the item securely in the cradle, while allowing cable connection to the unit. This RAM universal side clamping cradle is designed to be used in a closed cabin, low vibration environment. This system is not recommended as a motorcycle mount.
Universal Cradle Dimensions:
- Minimum Grip Width: 2.32''
- Maximum Grip Width: 3.37''
- Side Clamp Height: 1.75''
- Side Clamp Depth: 0.93''
- Cradle Spine Height: 3.92''
- Cradle Spine Width: 2.25''
NOTE: The top of the cradle is open, so the items in the cradle can be larger than the height of the cradle.
|
