Additional Images




Customer Images
Share your images and get a
free gpscity.ca t-shirt!
|
Customer Rating:  (based on 1 reviews). Email:
 Print:
100% of our reviewers recommend this item. See more RAM Mount items. |
| |
| List Price: |
$49.04CDN |
| Our Price: |
$37.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$11.09CDN (23%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
| Model: |
RAM Mount Universal Finger Grip Pivot Suction Mount RAP-B-104-224-UN4U |
| Part No: |
RAP-B-104-224-UN4U (also RAP-B-104-224-UN4) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Universal Cradle: In the Box (RAM-HOL-UN4U)
(4,060 views) |
RAM Universal Cradle: Assembly (RAM-HOL-UN4U)
(3,105 views) |
RAM Suction Mount: Overview (RAP-B-104-224)
(1,816 views) |
Check out our
channel. | |
|
Most Popular Universal Finger Grip Pivot Suction Mount RAP-B-104-224-UN4U Accessories
» View the complete accessory list for the RAM Mount Universal Finger Grip Pivot Suction Mount RAP-B-104-224-UN4U. |
GPS City Super Grip Dashboard Friction Mount Base
$14.95
|
RAM Mount Black Rose Adhesive Plate for Suction Cups
$6.95
|
RAM Mount Black Large Adhesive Plate for Suction Cups
$6.95
|
RAM Mount Clear Large Adhesive Plate for Suction Cups
$5.95
|
RAM Mount RAM-A-CAN II Vehicle Cup Flat Surface Base
$28.95
|
|
What's Included In The Box? |
The RAM Mount Universal Finger Grip Pivot Suction Mount RAP-B-104-224-UN4U ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Universal Mounts |
| Model: |
RAP-B-104-224-UN4U |
SKU: |
RAPB104-224UN4 |
UPC: |
793442911330 |
| Announced: |
March 24, 2008 |
First Shipped: |
March 24, 2008 |
Weight: |
0.913 lbs. |
Manufacturer Description |

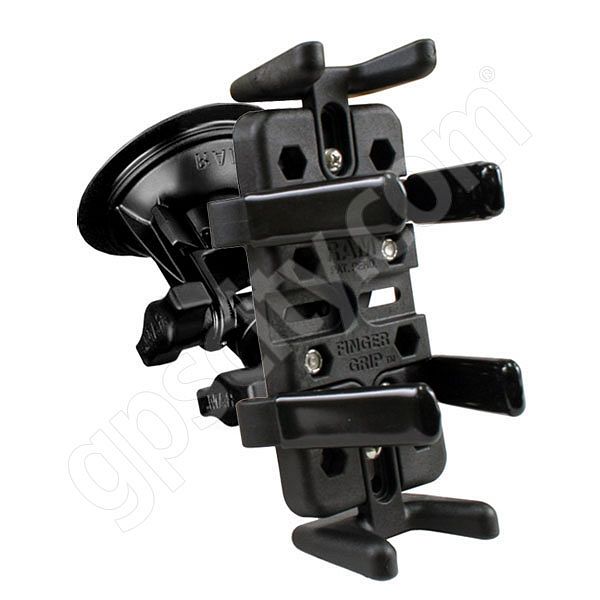

The RAP-B-104-224-UN4 Universal Finger Grip Cradle Windshield Suction RAM Mount is a High Strength Plastic Composite Mount with a Locking Suction Cup Base and RAM Universal Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system and a rotating pivot joint. With a twist of a knob, you can move the RAM Universal Finger Grip Cradle mount to your optimum viewing position.
Note: This mount does not require any drilling for installation.
Universal Mount Options:
 To help ensure you have the Universal Mount you require, take a look at the list of available RAM universal Finger Grip clamping cradle mounts on the RAM-HOL-UN4 Finger Grip Series of universal cradles and mounts Page. Here you can select from suction cup universal mounts, flat surface screw down universal mounts, universal car mounts, non skid weighted universal mounts and more bundled with the RAM-HOL-UN4 Universal Finger Grip Series Cradle. Alternatively, you can review the complete list of RAM universal cradles and mounts.
Universal Mount Cradle Design:
 The RAM-HOL-UN4 Plastic Finger Grip RAM Cradle is designed to hold a large amount of different kinds of cell phones and electronic devices, including the Blackberry range of Phones.
Using the Cradle:
This cradle has four (4) rubber coated fingers placed along sides to grip any device you need to hold. The fingers open by squeezing the ''peg'' ends to open the small finger arms. The bottom of the cradle includes a holding plate that adds support to the device being held by the mount.
Universal Cradle Dimensions:
- Using Short Arm Side Clamps:
- Maximum Depth: 0.75 inches
- Minimum Width: 1.25 inches
- Maximum Width: 3.0 inches
- Using Medium Arm Side Clamps:
- Maximum Depth: 1.25 inches
- Minimum Width: 1.5 inches
- Maximum Width: 3.5 inches
- Using Long Arm Side Clamps:
- Maximum Depth: 1.6 inches
- Minimum Width: 2.25 inches
- Maximum Width: 3.5 inches
- Spine Plate Dimensions: 2.5W x 5.0H inches
- Minimum Height (with Top and Bottom Plates): 5.25 inches *
- Maximum Heigth (with Top and Bottom Plates): 6.0 inches *
* The top and bottom plates can be removed for larger devices.
Universal Mount Cradle Plate:The RAP-B-238 RAM Mount High Strength Plastic Composite Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file) (Note: the Plastic RAP-B-238 Plate is thicker than the RAM-B-238 Design Drawings shown).
Universal Mount Arm Design:
 The RAP-B-200-1 RAM Mount Socket and Octagon Button Arm includes a 1 inch B size Ball Socket and is made of High Strength Plastic. The arm is 1.75 inches long when measured from socket center to button socket end. The side of the arm includes a tightening knob which allows you to open and close the socket ends.
Universal Mount Base Design: The RAP-224-2 RAM Mount High Strength Plastic Locking 3.25 inch diameter Rubber Suction Cup Base is designed to have an extra strong hold on any smooth non-porous surface. With a twist on the locking knob, the suction cup base adheres to any glass¹ or non-porous plastic surface, as found on our Super Grip Plastic Non Skid Base and Plastic Adhesive Disk.
Connected to the top of the RAM suction cup is a male RAM plastic octagon button with pivot connection. The pivot design allows the mount to tip from 0 to 90 degrees to the suction cup, while the octagon button connections allows the arm to rotate 360 degrees. The button end connects directly to a RAP-B-200-1 Plastic Arm with Socket and Female Button ends.
¹ Important legal note to California and Minnesota Drivers
Suction Cup Base Mounting Options:We currently offer three alternative solutions for mounting your suction cup mount in a location other than a windshield:
- The Super Grip Non Skid Base with round plastic plate, is a weighted base that can be placed on your dash without an adhesive or drilling. Simply place the base on your dash, or any flat surface and then attach the suction cup to the round plastic plate. This is perfect when you want a temporary mounting solution but the windshield mount just isn't the answer.
- The Suction Cup Adhesive Disk with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply stick the the plate to any flat surface and then attach the suction cup to the plate. This is perfect when you need to attach your suction cup mount to your car dash vertically or horizontally, rather than to your windshield.
- The Suction Cup Drink Cup Holder with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply place the base into any cup holder in your vehicle and then attach the suction cup to the plate found on top. This is perfect when you need to attach your suction cup mount away from the windshield or when you just want the mount off the dash.
|
Features & Tips |
Here is a listing we have put together of some of the common Universal Finger Grip Pivot Suction Mount RAP-B-104-224-UN4U features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Universal Finger Grip Cradle for electronic devices.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black High Strength Plastic Composite and Rubber Suction Cup.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint and Rotating Pivot Octagon Button.
- Arm Type: RAM Arm with 1 inch diameter Ball Socket and Octagon Button Socket.
- Arm Length: Standard length of 1.75 inches between 1 inch socket center and button socket edge.
- Base Type: Round 3.25 inch diameter Locking Suction Cup for non-porous surfaces.
- Common Applications:
|
