See more RAM Mount items. |
| |
| List Price: |
$36.22CDN |
| Our Price: |
$27.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$8.27CDN (23%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
| Model: |
RAM Mount Universal Finger Grip Cradle Adhesive Snap-Link Mount |
| Part No: |
RAP-SB-178-UN4U (also RAP-SB-178-UN4) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Universal Cradle: In the Box (RAM-HOL-UN4U)
(4,060 views) |
RAM Universal Cradle: Assembly (RAM-HOL-UN4U)
(3,105 views) |
Check out our
channel. | | |
|
What's Included In The Box? |
The RAM Mount Universal Finger Grip Cradle Adhesive Snap-Link Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Universal Mounts |
| Model: |
RAP-SB-178-UN4U |
SKU: |
RAPSB178UN4 |
UPC: |
793442912894 |
| Announced: |
January 31, 2008 |
First Shipped: |
January 31, 2008 |
Weight: |
0.600 lbs. |
Manufacturer Description |

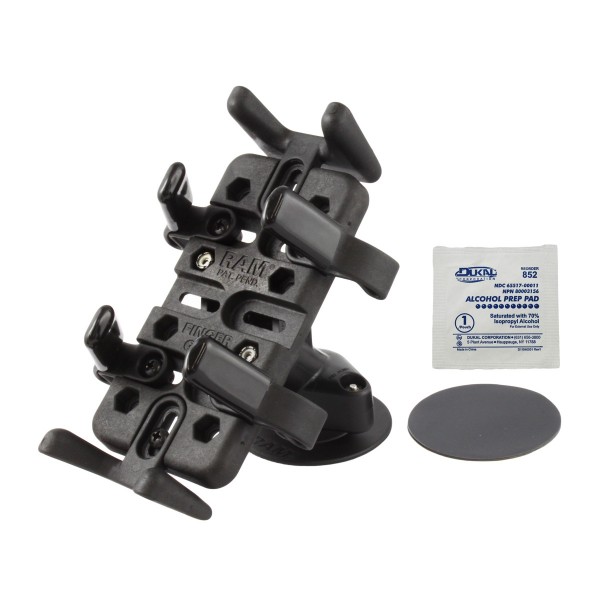

The RAM-SB-178-UN4 Universal Finger Grip Cradle Adhesive RAM Mount is a High Strength Plastic Composite Mount with a PDA Adhesive Base and RAM Universal Plastic Cradle. The mount is designed with a RAM Snap-Link friction ball and socket system that has one adjustment point in the middle of the mount. Once the adhesive base is securely mounted, you can move the Universal Finger Grip Clamping Cradle to your optimum viewing position with a simple twist of the mount joint.
Note: This mount does not require any drilling for installation.
Universal Mount Options:
 To help ensure you have the Universal Mount you require, take a look at the list of available RAM universal Finger Grip clamping cradle mounts on the RAM-HOL-UN4 Finger Grip Series of universal cradles and mounts Page. Here you can select from suction cup universal mounts, flat surface screw down universal mounts, universal car mounts, non skid weighted universal mounts and more bundled with the RAM-HOL-UN4 Universal Finger Grip Series Cradle. Alternatively, you can review the complete list of RAM universal cradles and mounts.
Universal Mount Cradle Design:
 The RAM-HOL-UN4 Plastic Finger Grip RAM Cradle is designed to hold a large amount of different kinds of cell phones and electronic devices, including the Blackberry range of Phones.
Using the Cradle:
This cradle has four (4) rubber coated fingers placed along sides to grip any device you need to hold. The fingers open by squeezing the ''peg'' ends to open the small finger arms. The bottom of the cradle includes a holding plate that adds support to the device being held by the mount.
Universal Cradle Dimensions:
- Using Short Arm Side Clamps:
- Maximum Depth: 0.75 inches
- Minimum Width: 1.25 inches
- Maximum Width: 3.0 inches
- Using Medium Arm Side Clamps:
- Maximum Depth: 1.25 inches
- Minimum Width: 1.5 inches
- Maximum Width: 3.5 inches
- Using Long Arm Side Clamps:
- Maximum Depth: 1.6 inches
- Minimum Width: 2.25 inches
- Maximum Width: 3.5 inches
- Spine Plate Dimensions: 2.5W x 5.0H inches
- Minimum Height (with Top and Bottom Plates): 5.25 inches *
- Maximum Heigth (with Top and Bottom Plates): 6.0 inches *
* The top and bottom plates can be removed for larger devices.
Universal Mount Arm Design:
 The RAP-SB-192 RAM Mount High Strength Plastic Composite Assembly is a 0.5 inch diameter plastic ball and socket snap-link friction grip system with diamond plate ends. One end of the assembly connects to the back of the cradle, and the other to the diamond plate on the mount base. The snap-link friction grip system relys on the screw tightened socket to grip the solid plastic ball. This ball and socket system should only be used in a low vibration application.
Universal Mount Base Design:
 The RAP-273 RAM Mount High Strength Plastic Adhesive Mount Base is designed to have a semi-permanent hold on a flat or curved surface, like a car dash or car windshield. The mounting base consists of a 2.5 inch diameter flexible base with a RAM Mount RAM-202PSA Adhesive PSA (Pressure Sensitive Adhesive) Disk.
|
Features & Tips |
Here is a listing we have put together of some of the common Universal Finger Grip Cradle Adhesive Snap-Link Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Universal Finger Grip Clamping Cradle.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black High Strength Composite Plastic and PSA Adhesive Disk.
- Mount Ball Size: RAM 0.5 inch Solid Plastic Snap-Link Ball.
- Pivot Point Design: RAM 0.5 inch Solid Plastic Snap-Link Friction Ball and Socket Joint.
- Arm Type: Direct connection between base and cradle plates.
- Base Type: Round Adhesive PSA (Pressure Sensitive Adhesive) Disk.
- Common Applications:
- Vehicle Mounts: Attaching to vehicle dash or console.
|
