Customer Rating:  (based on 1 reviews). Email:
 Print:
100% of our reviewers recommend this item. See more RAM Mount items. |
| |
| List Price: |
$44.67CDN |
| Our Price: |
$32.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$11.72CDN (26%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
| Model: |
RAM Mount Universal Cell Phone Mini Surface Plate Mount RAM-B-102-UN5U |
| Part No: |
RAM-B-102-UN5U (also RAM-B-102-AQ5) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,594 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,920 views) |
Check out our
channel. |
|
What's Included In The Box? |
The RAM Mount Universal Cell Phone Mini Surface Plate Mount RAM-B-102-UN5U ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Universal Mounts |
| Model: |
RAM-B-102-UN5U |
SKU: |
RAMB102UN5 |
UPC: |
|
| Announced: |
June 1, 2011 |
First Shipped: |
June 1, 2011 |
Weight: |
1.120 lbs. |
Manufacturer Description |

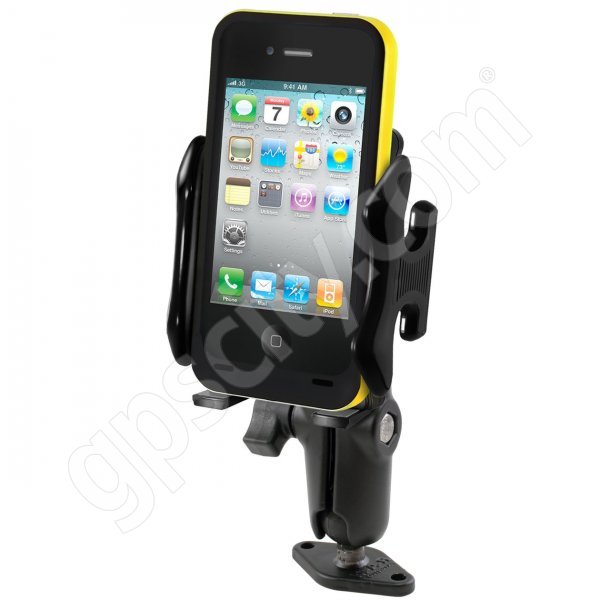

The RAM-B-102-UN5 Universal Cell/Smart
Phone Mount is a Marine Grade Aluminum Mount with a mini flat surface screw down base and RAM Universal Side Clamping Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the universal large cradle mount to your optimum viewing position.
Mount Base Design:
 The RAM-B-238 Powder Coated Marine Grade Aluminum Universal Base Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 1 1/4 x 2 1/2 inch Diamond Plate. The plate has two pre-drilled holes positioned at either tip of the diamond plate. This is the perfect mounting solution when you need to mount your device with a small foot print. Great as a motorcycle mount when mounting on a small ledge or vehicle mount when you want to bolt inside your vehicle. This base needs to be bolted or screwed to the mounting surface. Mounting hardware is not included. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Mount Arm Design:
 The RAM Mount Dual Socket Arm (RAM-B-201) is a B Size 1 inch Ball Dual Socket Arm, made of Marine Grade Aluminum. The arm is 3 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends.
Mount Cradle Design:
|
Features & Tips |
Here is a listing we have put together of some of the common Universal Cell Phone Mini Surface Plate Mount RAM-B-102-UN5U features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Universal side clamping cradle for cell phones and more.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Round 2.5 inch diameter plate design to be bolted to a flat surface.
- Common Applications:
- Motorcycle Mounts: Attaching to small ledge or flat surface on motorcycle console.
- Vehicle Mounts: Attaching to vehicle dash.
|
