Customer Images
Share your images and get a
free gpscity.ca t-shirt!
|
Customer Rating:   (based on 1 reviews). Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$47.08CDN |
| Our Price: |
$35.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$11.13CDN (24%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
| Model: |
RAM Mount U-Bolt Rail Mount with Belt Button Clip |
| Part No: |
RAM-B-149ZS-304 |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,594 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,920 views) |
RAM Motorcycle U-Bolt Base: On Suzuki (RAM-B-231ZU)
(25,241 views) |
|
What's Included In The Box? |
The RAM Mount U-Bolt Rail Mount with Belt Button Clip ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Belt Clip Mounts |
| Model: |
RAM-B-149ZS-304 |
SKU: |
RAMB149ZS-304 |
UPC: |
|
| Announced: |
October 1, 2007 |
First Shipped: |
October 1, 2007 |
Weight: |
0.737 lbs. |
Manufacturer Description |

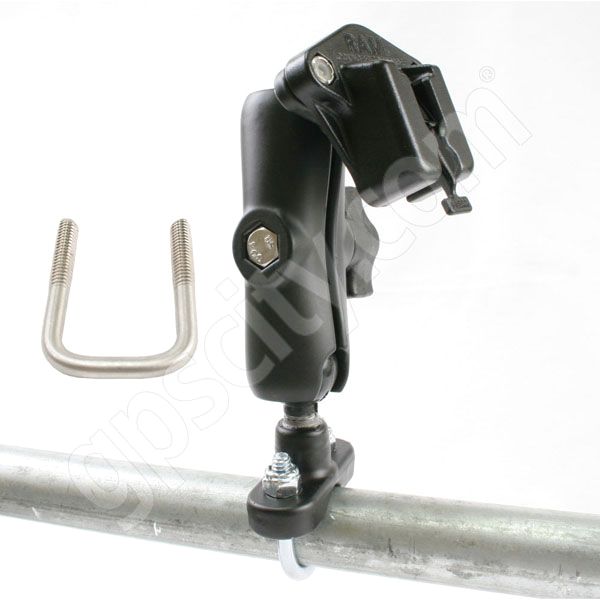

The RAM-B-149Z-304 Marine Grade Aluminum Handlebar and Rail Zinc Coated U-Bolt Mount, consists of the 1 inch diameter ball and socket system with RAM Plastic Belt Clip Button Holder for the all devices with a standard round belt button knob, including Golf Course GPS, Cell Phones, Smart Phones, GPS Units and more. The mount includes two U-Bolts for different shaped rails. One will connect to a round rail up to 1.0 inch diameter and the other will allow you to mount to a square or rectangle pole 0.75 to 1.0 inch sides.
Golf Course GPS Mount Cradle Design:The RAP-304 RAM Mount High Strength Plastic Holder is designed to connect to a standard plastic button knob found on the back of many Golf Course GPS, Cell Phones, GPS Units, Music Players and more.
Golf Course GPS Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Golf Course GPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Golf Course GPS Mount Base Design:
The RAM-B-231Z-319 RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch. Also included with this base is a RAM Square Stainless Steel U-Bolt. The square u-bolt allows the base to connect to a square rail or post up to 1 inch wide. This is a perfect solution for GPS Mounting on a Golf Course Buggy. The two different u-bolts in this package offer a solution not matter what the post shape.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt, with adapter, around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
|
Features & Tips |
Here is a listing we have put together of some of the common U-Bolt Rail Mount with Belt Button Clip features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Standard belt knob button holder.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Round (0.75 to 1 inch wide) and Square (up to 1 inch wide) Universal Round Pipe Base.
- Common Applications:
- Golf Buggy Mounts: Attaching to the golf buggy frame work.
- General Mounts: Attaching to available pipes or poles.
|
