| Model: |
RAM Mount TomTom Rider Zinc Coated U-Bolt Mount |
| Part No: |
RAM-B-149Z-TO2U (also RAM-B-149Z-TO2) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Medium Arm: Overview (RAM-B-201U)
(21,920 views) |
RAM Motorcycle U-Bolt Base: On Suzuki (RAM-B-231ZU)
(25,241 views) |
RAM Motorcycle U-Bolt Base: In the Box (RAM-B-231ZU)
(2,081 views) |
RAM Motorcycle U-Bolt Base: Overview (RAM-B-231ZU)
(3,064 views) |
RAM Chrome Motorcycle U-Bolt Mount: Harley (RAM-B-231CHU)
(5,996 views) |
|
What's Included In The Box? |
The RAM Mount TomTom Rider Zinc Coated U-Bolt Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-149Z-TO2U |
SKU: |
RAMB149ZTO2 |
UPC: |
|
| Announced: |
January 1, 2007 |
First Shipped: |
January 1, 2007 |
Weight: |
0.607 lbs. |
Manufacturer Description |

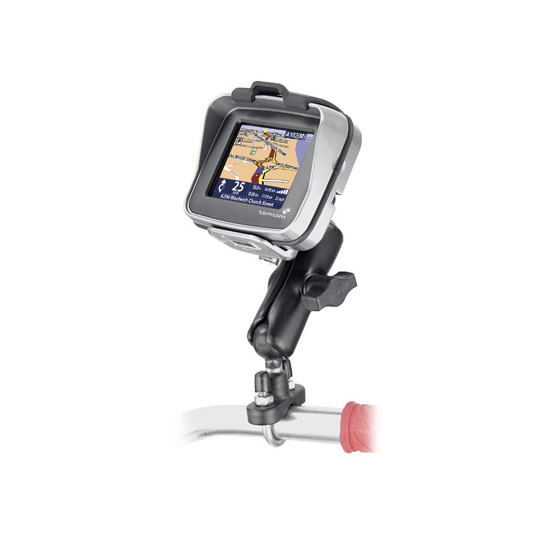

The RAM-B-149Z-TO2 RAM Mount Marine Grade Aluminum Stainless Steel U-Bolt Rail Base Mount consists of the 1 inch diameter ball and socket system with RAM Aluminum Cradle Holder for the TomTom Rider Series. For a list of available mounts that include the RAM-HOL-TO2 cradle, check out the complete list of TomTom Rider GPS Mounts
TomTom GPS Mount Cradle Design:
The RAM-HOL-TO2 RAM Mount Marine Grade Aluminum TomTom Cradle Adapter is designed to hold the following GPS units,
The adapter plate (RAM-B-238) connects to the back of the cradle that is included with the purchase of the TomTom Rider. The screws that are included with the RAM Adapter match up with the threads on the back of the RIDER cradle.
All cables can stay connected to the unit while in the RAM cradle.
TomTom GPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
TomTom GPS Mount Base Design:
 The RAM-B-231Z RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated metal U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
Note: If you are looking to use this mount in the elements, we suggest the RAM-B-231 Stainless Steel U-Bolt Mount.
|
Features & Tips |
Here is a listing we have put together of some of the common TomTom Rider Zinc Coated U-Bolt Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty
- Cradle Design: Plate and Screws to connect to TomTom GPS Cradle
- Cradle Material: Black Powder Coated Marine Grade Aluminum
- Mount Material: Black Powder Coated Marine Grade Aluminum
- Mount Ball Size: RAM 1 inch Solid Rubber Ball
- Pivot Point Design: RAM Patented RAM 1 inch Rubber Ball and Socket Joint
- Arm Type: RAM Arm with Dual 1 inch Sockets
- Arm Length: Standard length of 3 inches between socket centers
- Base Type: Motorcycle Handlebar Base or Universal Round Pipe Base with Zinc Coated U-Bolt
|
