Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$33.07CDN |
| Our Price: |
$21.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$11.12CDN (34%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
| Model: |
RAM Mount TomTom Rider Adapter Screw Down Plate Mount |
| Part No: |
RAM-B-138-TO2U (also RAM-B-138-TO2) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Medium Arm: Overview (RAM-B-201U)
(21,920 views) |
RAM Rectangular Plate: Comparison Overview
(2,134 views) |
RAM Round Plate: Overview (RAM-B-202U)
(8,290 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
|
What's Included In The Box? |
The RAM Mount TomTom Rider Adapter Screw Down Plate Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-138-TO2U |
SKU: |
RAMB138TO2 |
UPC: |
793442906817 |
| Announced: |
January 1, 2007 |
First Shipped: |
January 1, 2007 |
Weight: |
0.495 lbs. |
Manufacturer Description |

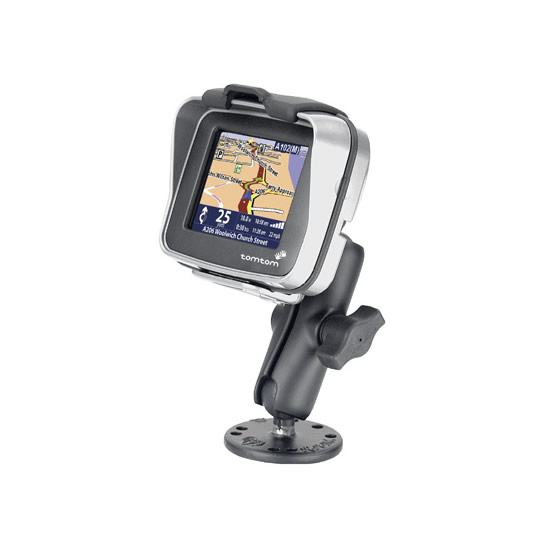

The RAM-B-138-TO2 RAM Mount Marine Grade Aluminum Screw Down Plate Mount consists of the 1 inch diameter ball and socket system with RAM Plate Connector for the TomTom Rider. For a list of available mounts that include the RAM-HOL-TO2 cradle, check out the complete list of TomTom Rider GPS Mounts
TomTom GPS Mount Cradle Design:
The RAM-HOL-TO2 RAM Mount Marine Grade Aluminum TomTom Cradle Adapter is designed to hold the following GPS units,
The adapter plate (RAM-B-238) connects to the back of the cradle that is included with the purchase of the TomTom Rider. The screws that are included with the RAM Adapter match up with the threads on the back of the RIDER cradle.
All cables can stay connected to the unit while in the RAM cradle.
TomTom GPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
TomTom GPS Mount Base Design:
 The RAM-B-202 RAM Mount Marine Grade Aluminum Screw Down Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 2.5 inch diameter Plate. The plate has pre-drilled holes in the base plate, including the universal AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
Mount Base Mounting Solutions:Mounting hardware is NOT included with the purchase of the RAM-B-202. A semi-permanent solution for mounting this base is by using the RAM double sided adhesive disk (RAM-202PSA). The disk will hold the RAM-B-202 base in many different locations without screws.
|
Features & Tips |
Here is a listing we have put together of some of the common TomTom Rider Adapter Screw Down Plate Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty
- Cradle Design: Plate and Screws to connect to TomTom GPS Cradle
- Cradle Material: Black Powder Coated Marine Grade Aluminum
- Mount Material: Black Powder Coated Marine Grade Aluminum
- Mount Ball Size: RAM 1 inch Solid Rubber Ball
- Pivot Point Design: RAM Patented RAM 1 inch Rubber Ball and Socket Joint
- Arm Type: RAM Arm with Dual 1 inch Sockets
- Arm Length: Standard length of 3 inches between socket centers
- Base Type: Round 2.5 inch diameter Plate design to be bolted to a flat surface
|
