| List Price: |
$43.02CDN |
| Our Price: |
$32.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$10.07CDN (23%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
|
|
| Model: |
RAM Mount TomTom GO x10 Series Locking Suction Cup Mount |
| Part No: |
RAM-B-166-TO3U (also RAM-B-166-TO3) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,594 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,920 views) |
Suction Mount Base: In Use (RAP-224-1U)
(5,675 views) |
|
Most Popular TomTom GO x10 Series Locking Suction Cup Mount Accessories
» View the complete accessory list for the RAM Mount TomTom GO x10 Series Locking Suction Cup Mount. |
GPS City Super Grip Dashboard Friction Mount Base
$14.95
|
RAM Mount Black Rose Adhesive Plate for Suction Cups
$6.95
|
RAM Mount Black Large Adhesive Plate for Suction Cups
$6.95
|
RAM Mount Clear Large Adhesive Plate for Suction Cups
$5.95
|
RAM Mount RAM-A-CAN II Vehicle Cup Flat Surface Base
$28.95
|
|
What's Included In The Box? |
The RAM Mount TomTom GO x10 Series Locking Suction Cup Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-166-TO3U |
SKU: |
RAMB166TO3 |
UPC: |
793442908279 |
| Announced: |
January 1, 2007 |
First Shipped: |
January 1, 2007 |
Weight: |
0.776 lbs. |
Manufacturer Description |

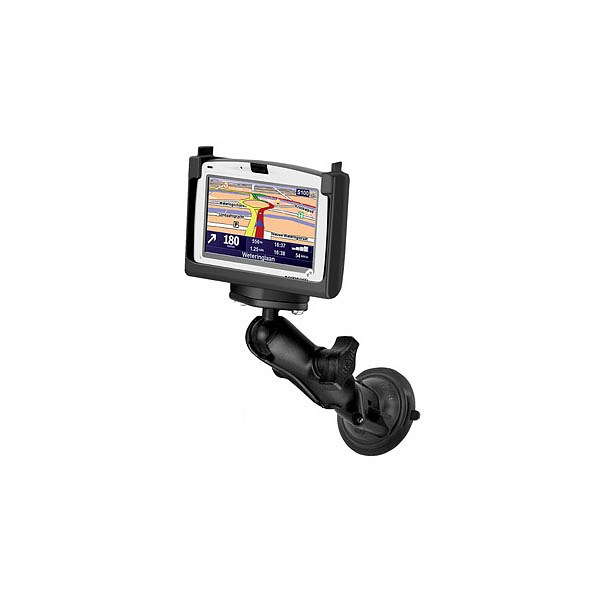

The RAM-B-166-TO3 RAM Mount Marine Grade Aluminum Mount with 3.25'' Locking Suction Base consists of the 1 inch diameter ball and socket system with RAM Plastic Cradle for the TomTom GO 510, GO 710 and GO 910.
The TomTom GO, GO Plus, GO 300 and GO 700 GPS WILL NOT fit this cradle. These units require the RAM Mount Locking Suction Cup Mount for the TomTom GO (RAM-B-166-TO1).
Mount Cradle Design:
The RAM-HOL-TO3 RAM Mount High Strength Plastic Cradle is designed to hold the following TomTom GPS units,
- TomTom GO 510
- TomTom GO 710
- TomTom GO 910
The back of the cradle is connected to a diamond plate with ball. The ball gives the cradle the ability to connect to the RAM arm on this mount and also creates a ball and socket joint allowing you to move the cradle into many different viewing locations. All cables can stay connected to the unit while in the RAM cradle.
The TomTom GO, GO Plus, GO 300 and GO 500 GPS WILL NOT fit this cradle. These units require the RAM-HOL-TO1 RAM Mount Cradle Connector for the TomTom GO, GO Plus, GO 300 and GO 500 GPS Series.
Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Mount Base Design:
 The RAM-B-224-1 RAM Mount Plastic Locking 3.25 inch diameter Rubber Suction Cup Base, with Marine Grade Aluminum Diamond Plate, is designed to have an extra strong hold on any smooth non-porous surface. With a twist on the locking knob, the suction cup base adheres to any glass¹ or non-porous plastic surface, as found on our Non Skid Base with Plastic Disk and Plastic Adhesive Disk.
Connected to the top of the Suction Cup is a RAM-B-238 RAM Mount Marine Grade Aluminum Diamond Plate with 1 inch diameter Rubber Ball. This plate allows the suction cup to join to an open socket found on the RAM 1 inch diameter socket arms.
¹ Important legal note to California and Minnesota Drivers
Suction Cup Base Mounting Options:We currently offer three alternative solutions for mounting your suction cup mount in a location other than a windshield:
- The Super Grip Non Skid Base with round plastic plate, is a weighted base that can be placed on your dash without an adhesive or drilling. Simply place the base on your dash, or any flat surface and then attach the suction cup to the round plastic plate. This is perfect when you want a temporary mounting solution but the windshield mount just isn't the answer.
- The Suction Cup Adhesive Disk with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply stick the the plate to any flat surface and then attach the suction cup to the plate. This is perfect when you need to attach your suction cup mount to your car dash vertically or horizontally, rather than to your windshield.
- The Suction Cup Drink Cup Holder with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply place the base into any cup holder in your vehicle and then attach the suction cup to the plate found on top. This is perfect when you need to attach your suction cup mount away from the windshield or when you just want the mount off the dash.
|
Features & Tips |
Here is a listing we have put together of some of the common TomTom GO x10 Series Locking Suction Cup Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty
- Cradle Design: Custom Cradle for TomTom GPS listed
- Cradle Material: High Strength Plastic
- Mount Material: Black Powder Coated Marine Grade Aluminum with Plastic/Rubber Locking Suction Cup
- Mount Ball Size: RAM 1 inch Solid Rubber Ball
- Pivot Point Design: RAM Patented RAM 1 inch Rubber Ball and Socket Joint
- Arm Type: RAM Arm with Dual 1 inch Sockets
- Arm Length: Standard length of 3 inches between socket centers
- Base Type: Round 3.25 inch diameter Locking Suction Cup for non-porous surfaces
|
