Product Detail & Documentation (all files in PDF format)
Manufacturer
RAM Mount
Category
GPS Mounts
Model
RAM-B-166-TO6U
SKU
RAMB166TO6
Weight
0.776 lbs.
Share this item:
Need Assistance? We're here to help. (That's the GPS City Difference!)
For quick help selecting the right GPS unit, try our
GPS Selector Tool,
check specifications, or
compare GPS units. If you have a specific question about an
item, try entering your question using the
Q&A (Questions & Answers) section above - we usually respond on the same or next day. During our office hours 9AM - 6PM MDT, Mon-Fri, you can contact us using
, or reach us by phone at 1-866-GPS-CITY.
Most Popular RAM Mount TomTom GO 520 720 920 Locking Suction Cup Mount Accessories
(View all accessories.)
What's Included With The RAM Mount TomTom GO 520 720 920 Locking Suction Cup Mount? The RAM Mount TomTom GO 520 720 920 Locking Suction Cup Mount ships with the following items included:

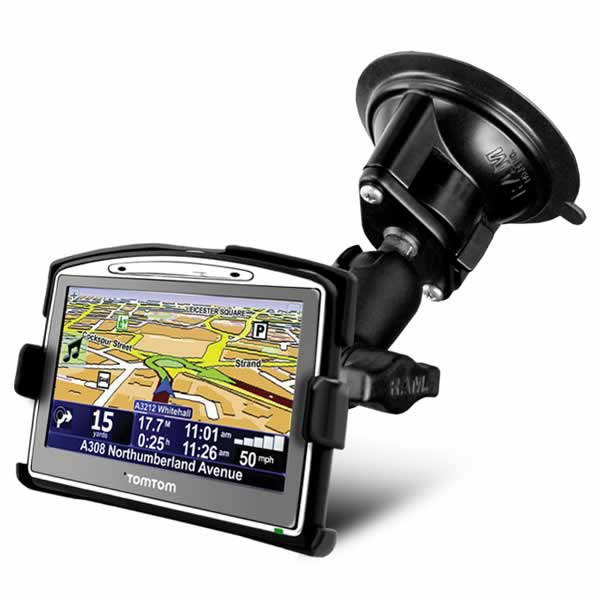

RAM Mount TomTom GO 520 720 920 Locking Suction Cup Mount Description The RAM-B-166-TO6 TomTom GO 520/520T, GO 720/720T and GO 920/920T Series Windshield Suction RAM Mount is a Marine Grade Aluminum Mount with a Locking Suction Cup Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the TomTom GO 520/520T, GO 720/720T and GO 920/920T Series mount to your optimum viewing position.
Note: This mount does not require any drilling for installation.
TomTom GPS Mount Options:
To help ensure you have the TomTom GO 720 and GPS 920 Mount you require, take a look at the list of available RAM TomTom GPS mounts on the TomTom GO 720 and GPS 920 Mount Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-TO6 TomTom GO 720 and GPS 920 Cradle.
TomTom GPS Mount Cradle Design:
The RAM-HOL-TO6 RAM Mount High Strength Plastic Cradle is designed to hold the following TomTom GPS units,
TomTom GO 520
TomTom GO 520T
TomTom GO 720
TomTom GO 720T
TomTom GO 920
TomTom GO 920T
All cables can stay connected to the unit while in the RAM cradle.
TomTom GPS Mount Cradle Plate:
The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
TomTom GPS Mount Arm Design:
The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
TomTom GPS Mount Base Design:
The RAM-B-224-1 RAM Mount Plastic Locking 3.25 inch diameter Rubber Suction Cup Base, with Marine Grade Aluminum Diamond Plate, is designed to have an extra strong hold on any smooth non-porous surface. With a twist on the locking knob, the suction cup base adheres to any glass¹ or non-porous plastic surface, as found on our Non Skid Base with Plastic Disk and Plastic Adhesive Disk.
Connected to the top of the Suction Cup is a RAM-B-238 RAM Mount Marine Grade Aluminum Diamond Plate with 1 inch diameter Rubber Ball. This plate allows the suction cup to join to an open socket found on the RAM 1 inch diameter socket arms.
We currently offer three alternative solutions for mounting your suction cup mount in a location other than a windshield:
The Super Grip Non Skid Base with round plastic plate, is a weighted base that can be placed on your dash without an adhesive or drilling. Simply place the base on your dash, or any flat surface and then attach the suction cup to the round plastic plate. This is perfect when you want a temporary mounting solution but the windshield mount just isn't the answer.
The Suction Cup Adhesive Disk with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply stick the the plate to any flat surface and then attach the suction cup to the plate. This is perfect when you need to attach your suction cup mount to your car dash vertically or horizontally, rather than to your windshield.
The Suction Cup Drink Cup Holder with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply place the base into any cup holder in your vehicle and then attach the suction cup to the plate found on top. This is perfect when you need to attach your suction cup mount away from the windshield or when you just want the mount off the dash.
