Product Detail & Documentation (all files in PDF format)
Manufacturer
RAM Mount
Category
GPS Mounts
Model
RAM-B-149Z-2-TO6
SKU
RAMB149Z-2TO6
Weight
1.000 lbs.
Share this item:
Need Assistance? We're here to help. (That's the GPS City Difference!)
For quick help selecting the right GPS unit, try our
GPS Selector Tool,
check specifications, or
compare GPS units. If you have a specific question about an
item, try entering your question using the
Q&A (Questions & Answers) section above - we usually respond on the same or next day. During our office hours 9AM - 6PM MDT, Mon-Fri, you can contact us using
, or reach us by phone at 1-866-GPS-CITY.
What's Included With The RAM Mount TomTom GO 520 720 920 ATV UTV Strap Mount? The RAM Mount TomTom GO 520 720 920 ATV UTV Strap Mount ships with the following items included:

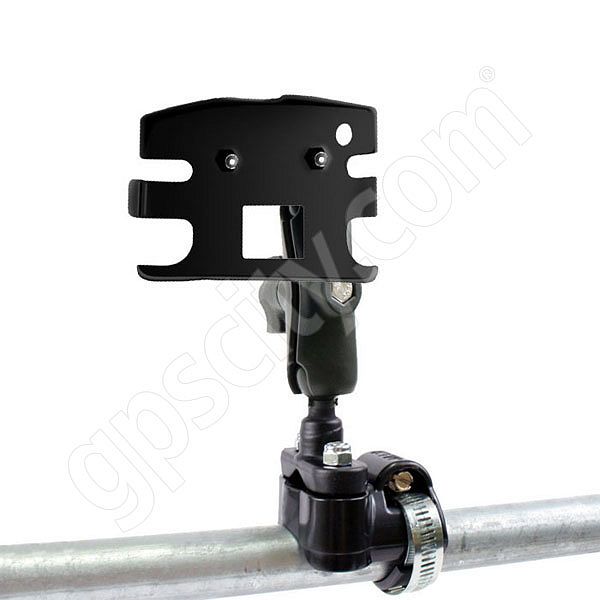

RAM Mount TomTom GO 520 720 920 ATV UTV Strap Mount Description The RAM-B-149Z-2-TO6 TomTom GO 520/520T, GO 720/720T and GO 920/920T Series ATV and UTV RAM Mount is a Marine Grade Aluminum Mount with a Steel Clamp Strap Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the TomTom GO 520/520T, GO 720/720T and GO 920/920T Series mount to your optimum viewing position.
TomTom GPS Mount Options:
To help ensure you have the TomTom GO 720 and GPS 920 Mount you require, take a look at the list of available RAM TomTom GPS mounts on the TomTom GO 720 and GPS 920 Mount Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-TO6 TomTom GO 720 and GPS 920 Cradle.
TomTom GPS Mount Cradle Design:
The RAM-HOL-TO6 RAM Mount High Strength Plastic Cradle is designed to hold the following TomTom GPS units,
TomTom GO 520
TomTom GO 520T
TomTom GO 720
TomTom GO 720T
TomTom GO 920
TomTom GO 920T
All cables can stay connected to the unit while in the RAM cradle.
TomTom GPS Mount Cradle Plate:
The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
TomTom GPS Mount Arm Design:
The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
TomTom GPS Mount Base Design:
The RAM-B-231-2 Marine Grade Aluminum Utility Strap Clamp Base has a 1.0 inch diameter Rubber Ball connected at right angles. The Strap Base tightening screw is encased in a compact housing for a clean, safe finish. The strap is long enough to wrap around handle bar posts found on most ATV, UTV, Snowmobiles, Motorcycles and any other applications you can think of.
Strap Dimensions: 1.57'' (40mm) to a maximum of 3.15'' (80mm).
