Customer Images
Share your images and get a
free gpscity.ca t-shirt!
|
Customer Rating:  (based on 1 reviews). Email:
 Print:
100% of our reviewers recommend this item. See more RAM Mount items. |
| |
| List Price: |
$41.03CDN |
| Our Price: |
$31.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$9.08CDN (22%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
| Model: |
RAM Mount TomTom GO 510 710 910 Series Zinc U-Bolt Rail Mount |
| Part No: |
RAM-B-149Z-TO3U (also RAM-B-149Z-TO3) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,594 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,920 views) |
RAM Motorcycle U-Bolt Base: On Suzuki (RAM-B-231ZU)
(25,241 views) |
|
What's Included In The Box? |
The RAM Mount TomTom GO 510 710 910 Series Zinc U-Bolt Rail Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-149Z-TO3U |
SKU: |
RAMB149ZTO3 |
UPC: |
793442908088 |
| Announced: |
January 1, 2007 |
First Shipped: |
January 1, 2007 |
Weight: |
0.769 lbs. |
Manufacturer Description |

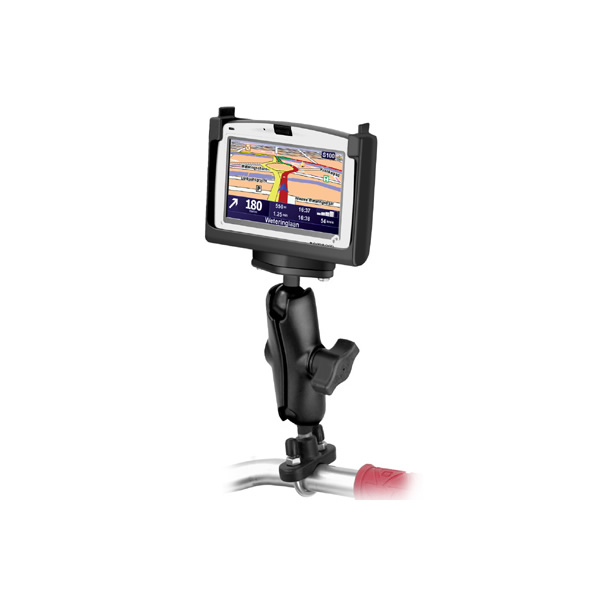

The RAM-B-149Z-TO3 RAM Mount Marine Grade Aluminum Stainless Steel U-Bolt Rail Base Mount consists of the 1 inch diameter ball and socket system with RAM Aluminum Cradle Holder for the TomTom GO 510, GO 710 and GO 910 Series.
The TomTom GO, GO Plus, GO 300 and GO 700 GPS WILL NOT fit this cradle. These units require the RAM Mount Zinc Coated U-Bolt Mount for the TomTom GO (RAM-B-149Z-TO1)
TomTom GPS Mount Cradle Design:
The RAM-HOL-TO3 RAM Mount High Strength Plastic Cradle is designed to hold the following TomTom GPS units,
- TomTom GO 510
- TomTom GO 710
- TomTom GO 910
The back of the cradle is connected to a diamond plate with ball. The ball gives the cradle the ability to connect to the RAM arm on this mount and also creates a ball and socket joint allowing you to move the cradle into many different viewing locations. All cables can stay connected to the unit while in the RAM cradle.
The TomTom GO, GO Plus, GO 300 and GO 500 GPS WILL NOT fit this cradle. These units require the RAM-HOL-TO1 RAM Mount Cradle Connector for the TomTom GO, GO Plus, GO 300 and GO 500 GPS Series.
TomTom GPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
TomTom GPS Mount Base Design:
 The RAM-B-231Z RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated metal U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
Note: If you are looking to use this mount in the elements, we suggest the RAM-B-231 Stainless Steel U-Bolt Mount.
|
Features & Tips |
Here is a listing we have put together of some of the common TomTom GO 510 710 910 Series Zinc U-Bolt Rail Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty
- Cradle Design: Custom Cradle for TomTom GPS listed
- Cradle Material: High Strength Plastic
- Mount Material: Black Powder Coated Marine Grade Aluminum
- Mount Ball Size: RAM 1 inch Solid Rubber Ball
- Pivot Point Design: RAM Patented RAM 1 inch Rubber Ball and Socket Joint
- Arm Type: RAM Arm with Dual 1 inch Sockets
- Arm Length: Standard length of 3 inches between socket centers
- Base Type: Motorcycle Handlebar Base or Universal Round Pipe Base with Zinc Coated U-Bolt
|
