See more RAM Mount items. |
| |
| List Price: |
$80.84CDN |
| Our Price: |
$63.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$16.89CDN (21%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
| Model: |
RAM Mount TDS Recon PDA Tri-Pod Mount with Belt Clip |
| Part No: |
RAM-B-149ZBC-TD1 |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Rectangular Plate: Comparison Overview
(2,139 views) |
RAM Round Plate: Overview (RAM-B-202U)
(8,291 views) |
RAM AMPS Hole Pattern: Explained
(8,016 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,889 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,924 views) |
|
What's Included In The Box? |
The RAM Mount TDS Recon PDA Tri-Pod Mount with Belt Clip ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
PDA Mounts |
| Model: |
RAM-B-149ZBC-TD1 |
SKU: |
RAMB149ZBC-TD1 |
UPC: |
|
| Announced: |
November 14, 2007 |
First Shipped: |
December 1, 2007 |
Weight: |
1.189 lbs. |
Manufacturer Description |

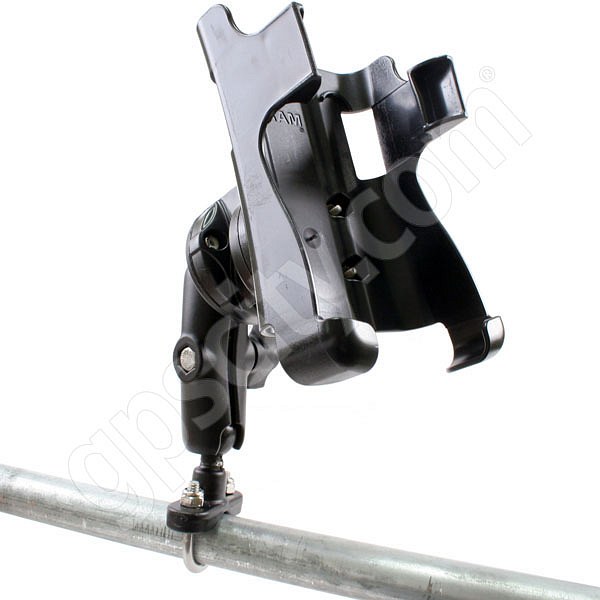

The RAM-B-149ZBC-TD1 TDS Recon PDA RAM Mount is a Marine Grade Aluminum TriPod Rail Mount with Quick Clip. It consists of the 1 inch diameter ball and socket system with RAM Mount Plastic Cradle for the TDS Recon PDA Series. Included with this mount is a Quick Clip Connector. Between the mount and the cradle is a belt clip attachment, allowing you to quickly move the TDS Recon from the Tri-Pod Mount to your belt clip (included).
TDS Recon PDA Mount Cradle Design:
The RAM-HOL-TD1 RAM Mount High Strength Plastic Cradle is designed to hold the following TDS PDA units,
The back of the cradle is connected to a round plate with ball. The ball gives the cradle the ability to connect to the RAM arm on this mount and also creates a ball and socket joint allowing you to move the cradle into many different viewing locations. All cables can stay connected to the TDS Ranger while in the RAM cradle.
TDS Recon PDA Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
TDS Recon PDA Mount Base Design:
 The RAM-B-231Z RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated metal U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
Note: If you are looking to use this mount in the elements, we suggest the RAM-B-231 Stainless Steel U-Bolt Mount.
TDS Recon PDA Mount Options:
To help ensure you have the TDS Recon Mount you require, take a look at the list of available RAM TDS PDA mounts on the TDS Recon Mount List Page. Here you can select from pole/rail TDS mounts, suction cup TDS mounts, flat surface screw down TDS mounts and more bundled with the TDS Recon Cradle.
|
Features & Tips |
Here is a listing we have put together of some of the common TDS Recon PDA Tri-Pod Mount with Belt Clip features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty
- Cradle Design: Custom Cradle for TDS Recon PDA with Belt Clip Quick-Clip
- Cradle Material: High Strength Plastic
- Mount Material: Black Powder Coated Marine Grade Aluminum
- Mount Ball Size: RAM 1 inch Solid Rubber Ball
- Pivot Point Design: RAM Patented RAM 1 inch Rubber Ball and Socket Joint
- Arm Type: RAM Arm with Dual 1 inch Sockets
- Arm Length: Standard length of 3 inches between socket centers
- Base Type: Tri-Pod, Motorcycle Handlebar Base or Universal Round Pipe Base with Zinc Coated U-Bolt
|
