RAM Mount RAM-B-149U Steel U-Bolt with Aluminum Standard Arm and Diamond Plate Assembly

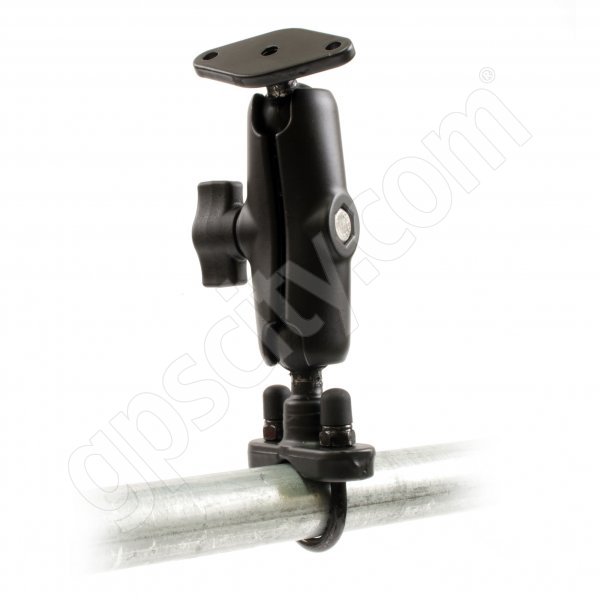

RAM Mount Steel U-Bolt Cradle Plate Mount 1.0 inch Ball
Additional Images

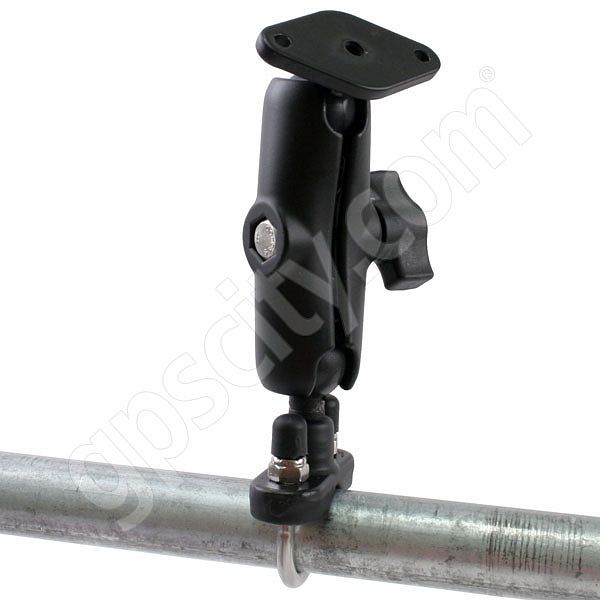

RAM Mount Steel U-Bolt Cradle Plate Mount 1.0 inch Ball #1
Customer Images
RAM GPSMAP mount on KLR650 by AndrewiPod Touch on V-Star Classic by Greg Davis2002 Honda VFR800 Camera Mount by John Backus
GPSMAP62S on Honda XR650L 2011 by Yanick JolyE-Trex 20 on Arctic Cat ATV by Derrick DunneMounted on 2000 Yamaha V-Star 1100 by tripp
RAM eXplorist GPS mount by Todd KittingMontana 600 and Short Ram Mount by Sean RooneyGarmin Dakota 10 RAM ATV Mount by Hugues Mackay
Garmin Montana 650 by lior elbazRAM Mount Lowrance XOG GPS Cradle by DomeincGo Pro Mounting on a V Twin by Lynn Blakemore
Tom Tom Mount by Kevin Gantnier srRino-ly Impressed! by Trevor MGarmin RAM Mounted on Can Am by Norm
Scooter Touring with RAM Mount & Nuvi 550 by S. ReeveRAM Mount on Can-Am ATV by MicaelReal Support for Snowmobile by Dany Briand
Honda Transalp GPSmap 62 installation by Shaun O'ReillySpotlight and Lowrance GPS Mount! by Jordan
Share your images and get a
free gpscity.ca t-shirt!
Customer Rating: (based on 21 reviews).    Email:  Email the RAM Mount Steel U-Bolt Cradle Plate Mount 1.0 inch Ball page     Print:  Print the RAM Mount Steel U-Bolt Cradle Plate Mount 1.0 inch Ball page
100% of our reviewers recommend this item. See more RAM Mount items.

List Price: $34.40CDN
Our Price: $27.95CDN   (Ships for $5.99. Restrictions apply.)
You Save: $6.45CDN (19%)

Availability:

In Stock.
Ships from Calgary on Monday, May 28.


Qty:

Model: RAM Mount Steel U-Bolt Cradle Plate Mount 1.0 inch Ball
Part No: RAM-B-149U (also RAM-B-149)
Condition: Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses)
Price Match: Get an Instant Price Match in about 5 minutes (during business hours).

Learn More with our Instructional Videos

 » See our list of GPS City videos. Visit our Youtube channel.
RAM Motorcycle Mount: Overview (RAM-B-149) Video
RAM Motorcycle Mount: Overview (RAM-B-149)
(4,220 views)
RAM Diamond Plate: Overview (RAM-B-238U) Video
RAM Diamond Plate: Overview (RAM-B-238U)
(21,599 views)
RAM AMPS Hole Pattern: Explained Video
RAM AMPS Hole Pattern: Explained
(8,016 views)
RAM Mount Plate: Overview (RAM-B-347) Video
RAM Mount Plate: Overview (RAM-B-347)
(4,889 views)
RAM Medium Arm: Overview (RAM-B-201U) Video
RAM Medium Arm: Overview (RAM-B-201U)
(21,924 views)

RAM Mount Sub-Component Breakdown

Here are the sub-component parts that make up this item:

Diamond Plate with 1 inch Ball RAM-B-238U
+
Medium Arm B-Socket RAM-B-201U
+
Steel U-Bolt Motorcycle Mount Base RAM-B-231U


What's Included In The Box?

The RAM Mount Steel U-Bolt Cradle Plate Mount 1.0 inch Ball ships with the following items included:


Product Information

Manufacturer: National Products, Inc Category: All Purpose Mounts Type: Cradle Mounts
Model: RAM-B-149U SKU: RAMB149 UPC: 793442149016
Announced: November 30, 1999 First Shipped: August 31, 2001 Weight: 0.569 lbs.

RAM Mount Steel U-Bolt Cradle Plate Mount 1.0 inch Ball User Manual

User Manual, English: RAM Mount Steel U-Bolt Cradle Plate Mount 1.0 inch Ball Installation Manual (PDF)

RAM Mount Steel U-Bolt Cradle Plate Mount 1.0 inch Ball Alternative Models

RAM Mount Cradle Plate Zinc U-Bolt Rail Mount 1.0 inch Ball
RAM Mount Cradle Plate Zinc U-Bolt Rail Mount 1.0 inch Ball
RAM Mount Steel U-Bolt Cradle Plate Mount 1.0 inch Ball
RAM Mount Steel U-Bolt Cradle Plate Mount 1.0 inch Ball
RAM Mount Plastic Rail Base and Standard Arm Diamond Assembly
RAM Mount Plastic Rail Base and Standard Arm Diamond Assembly


Manufacturer Description

The RAM-B-149 Cradle Plate Motorcycle RAM Mount is a Marine Grade Aluminum Mount with a Motorcycle Stainless Steel U-Bolt Rail Base and Diamond Plate. The cradle diamond plate has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. The pivot points for this mount consist of the RAM 1 inch diameter patented rubber ball and socket system and are located at the cradle plate and base ends. With a twist of the arm knob, you can move the cradle plate mount to your optimum viewing position.

Universal Cradle Plate Mount Options:


To help ensure you have the Universal Diamond Plate Mount you require, take a look at the list of available diamond plate mounts with a double hole pattern on the RAM Cradle Diamond Plate and Mounts Page. Here you can select from suction cup mounts, flat surface screw down mounts, car mounts, wall mounts and more bundled with a RAM-B-238 Diamond Plate for cradle mounting.

Universal Cradle Plate Mount Plate Design:


The RAM-B-238 Powder Coated Marine Grade Aluminum Universal Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 1 1/4 x 2 1/2 inch Diamond Plate. The plate has two pre-drilled holes positioned at either tip of the diamond plate. The hole pattern found on the Diamond Plate will connect to a large variety of RAM Mount and third party cradles and mounts, including those with the industry standard AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).

Universal Cradle Plate Mount Arm Design:


The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).

Universal Cradle Plate Mount Base Design:


The RAM-B-231 RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Stainless Steel U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.

To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.

NOTE: This base is completely rust proof.

For Larger Rail Mounting:


For a larger rail, you can purchase the RAM Mount Stainless Steel Large Rail U-Bolt for circular rails with diameter up to 1.25 inches.


Features & Tips

Here is a listing we have put together of some of the common

Steel U-Bolt Cradle Plate Mount 1.0 inch Ball features

, along with a few user tips that you may find of help for this particular item.
  • Warranty: Manufacturer's Life Time Warranty.
  • Cradle Plate Design: Universal Diamond Plate to connect directly to a RAM Mount or third party cradle.
  • Cradle Plate Material: Black Powder Coated Marine Grade Aluminum.
  • Mount Material: Black Powder Coated Marine Grade Aluminum.
  • Mount Ball Size: RAM 1 inch Solid Rubber Ball.
  • Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
  • Arm Type: RAM Arm with Dual 1 inch Sockets.
  • Arm Length: Standard length of 3.0 inches between socket centers.
  • Base Type: Motorcycle Handlebar Base or Universal Round Pipe Base with Stainless Steel U-Bolt. (0.75 to 1 inch wide)
  • Common Applications:
    • Motorcycle and ATV Mounts: Attaching to handlebars.
    • Hiking Mounts: Attaching to hiking staffs.
    • General Mounts: Attaching to available pipes or poles.
