| Model: |
RAM Mount Stainless Steel Rail Base with Camera Thread End |
| Part No: |
RAM-B-149-237U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Camera Thread: Overview (RAM-B-237U)
(1,515 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,924 views) |
RAM Motorcycle U-Bolt Base: On Suzuki (RAM-B-231U)
(25,254 views) |
RAM Motorcycle U-Bolt Base: In the Box (RAM-B-231U)
(3,571 views) |
RAM Motorcycle U-Bolt Base: Overview (RAM-B-231U)
(7,280 views) |
|
What's Included In The Box? |
The RAM Mount Stainless Steel Rail Base with Camera Thread End ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Camera Mounts |
| Model: |
RAM-B-149-237U |
SKU: |
RAMB149-237 |
UPC: |
|
| Announced: |
January 1, 2008 |
First Shipped: |
January 1, 2008 |
Weight: |
0.600 lbs. |
Manufacturer Description |

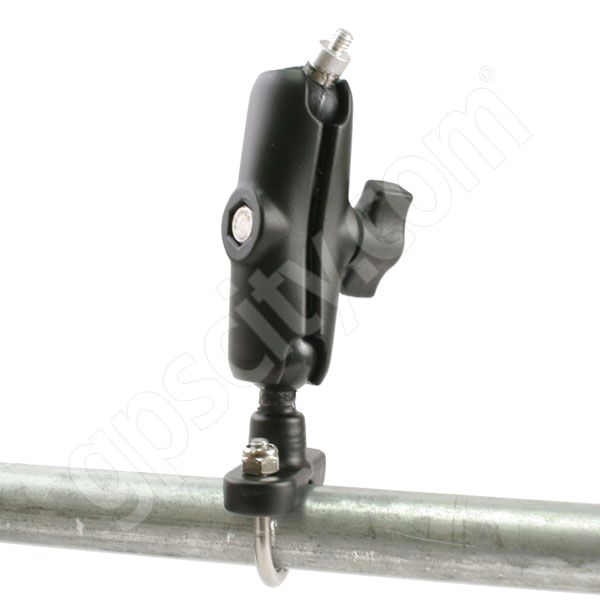

The RAM-B-149-237 Camera Motorcycle RAM Mount is a Marine Grade Aluminum Mount with a Stainless Steel U-Bolt Rail Base and RAM Camera Thread End. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the camera mount to your optimum viewing position.
Camera Mount Cradle Plate:
The RAM-B-237 Marine Grade Aluminum Universal Camera and Camcorder Thread Holder has a 1.0 inch diameter rubber ball connected to a male 1/4-20 camera thread. This male thread matches most standard camera and camcorder female threads found on the bottom of the camera.
Camera Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Camera Mount Base Design:
 The RAM-B-231 RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Stainless Steel U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
NOTE: This base is completely rust proof.
For Larger Rail Mounting:
For a larger rail, you can purchase the RAM Mount Stainless Steel Large Rail U-Bolt for circular rails with diameter up to 1.25 inches.
|
Features & Tips |
Here is a listing we have put together of some of the common Stainless Steel Rail Base with Camera Thread End features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Camera 1/4-20 Male Thread End.
- Cradle Material: Marine Grade Aluminum Male Thread.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Motorcycle Handlebar Base or Universal Round Pipe Base with Stainless Steel U-Bolt. (0.75 to 1 inch wide)
- Common Applications:
- Motorcycle and ATV Mounts: Attaching to handlebars.
- Hiking Mounts: Attaching to hiking staffs.
- General Mounts: Attaching to available pipes or poles.
|
