| Model: |
RAM Mount Spot Light Screw Down Plate Mount |
| Part No: |
RAM-B-152 |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Medium Arm: Overview (RAM-B-201U)
(21,924 views) |
RAM Rectangular Plate: Comparison Overview
(2,139 views) |
RAM Round Plate: Overview (RAM-B-202U)
(8,291 views) |
RAM AMPS Hole Pattern: Explained
(8,016 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,889 views) |
|
What's Included In The Box? |
The RAM Mount Spot Light Screw Down Plate Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Spot Light Mounts |
| Model: |
RAM-B-152 |
SKU: |
RAMB152 |
UPC: |
793442101526 |
| Announced: |
November 30, 1999 |
First Shipped: |
October 16, 2001 |
Weight: |
2.119 lbs. |
Manufacturer Description |

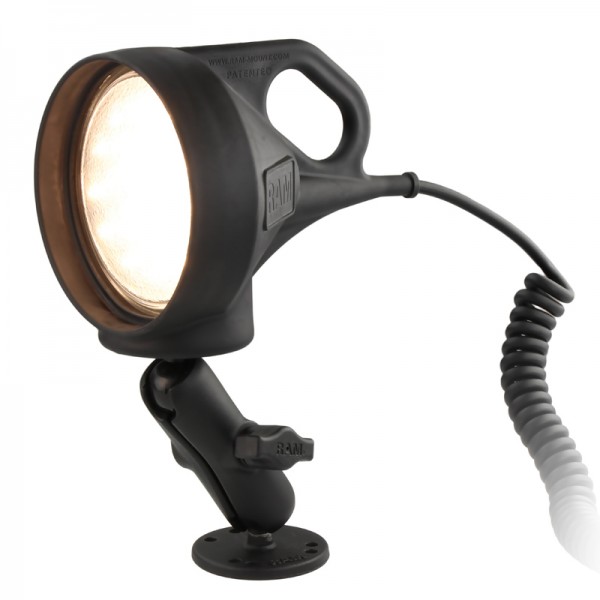

The RAM-B-152 Spot Light RAM Mount is a Marine Grade Aluminum Mount with a Flat Surface Screw Down Base and Rubber Encased 70K Candle Spot Light. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the spot light mount to your optimum viewing position.
Spot Light Mount Options:To help ensure you have the RAM Rubber Coated 70K Candle Spot Light Mount you require, take a look at the list of available RAM Spot Light mounts on the Rubber Coated Spot Light Mount Page. Here you can select from Spot Light suction cup mounts, flat surface screw down Spot Light mounts, Spot Light car mounts, non skid weighted Spot Light mounts and more bundled with the RAM-B-152B Rubber Coated Spot Light.
Spot Light Mount End:The RAM-B-152B RAM Mount Rubber Coated Spot Light includes a 70K candle globe and a Bare Wire Cigarette Lighter Plug. At the bottom of the spot light casing is a RAM 1 inch diameter Ball for mounting to the RAM 1 inch arm socket.
Spot Light Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Spot Light Mount Base Design:
 The RAM-B-202 RAM Mount Marine Grade Aluminum Screw Down Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 2.5 inch diameter Plate. The plate has pre-drilled holes in the base plate, including the universal AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
Mount Base Mounting Solutions:Mounting hardware is NOT included with the purchase of the RAM-B-202. A semi-permanent solution for mounting this base is by using the RAM double sided adhesive disk (RAM-202PSA). The disk will hold the RAM-B-202 base in many different locations without screws.
|
Features & Tips |
Here is a listing we have put together of some of the common Spot Light Screw Down Plate Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty (excluding globe).
- Cradle Design: High Intensity 70K Spot Light with Mounting Ball.
- Cradle Material: Rubber coated Spot Light.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Round 2.5 inch diameter plate design to be bolted to a flat surface.
- Common Applications:
- Vehicle Mounts: Attaching to vehicle dash or console with hardware or PSA Adhesive.
- Motorcycle Mounts: Attaching to small ledge or flat surface on motorcycle console.
|
