RAM Mount Samsung Q1 UMPC Cessna Seat Rail Mount |
| Part No: |
RAM-131-SAM1 |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Round Plate: Overview (RAM-202U)
(3,799 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
Check out our
channel. | |
|
What's Included In The Box? |
The RAM Mount Samsung Q1 UMPC Cessna Seat Rail Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
UMPC Mounts |
| Model: |
RAM-131-SAM1 |
SKU: |
RAM131-SAM1 |
UPC: |
793442907180 |
| Announced: |
February 29, 2008 |
First Shipped: |
February 29, 2008 |
Weight: |
2.266 lbs. |
Manufacturer Description |

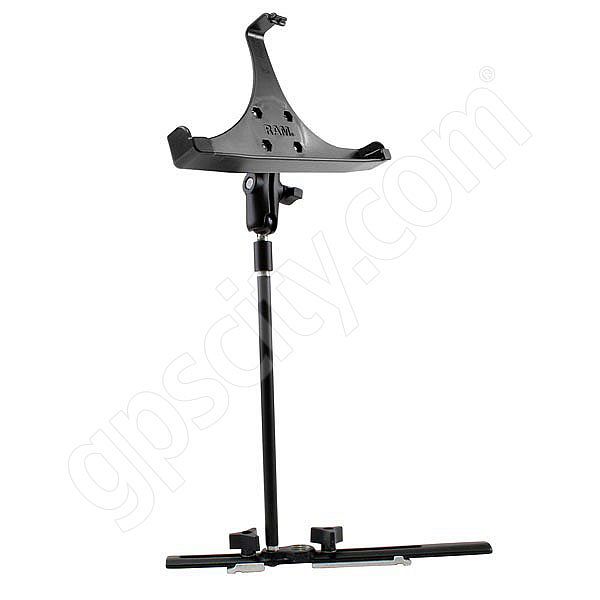

The RAM-131-SAM1 Samsung Q1 UMPC (Ultra Mobile PC) Cessna Seat Rail Aviation Mount is a Marine Grade Aluminum and Steel Mount with a RAM Custom Plastic Cradle. The mount is designed with a RAM 1.5 inch diameter RAM ball and socket system on a 12 inch long Steel Rigid Pipe. With a twist of the arm knob, you can move the top of Samsung Q1 UMPC mount to your optimum viewing position.
Note: This mount does not require any drilling for installation.
Samsung Q1 Ultra UMPC Mounts: If you are looking for a Samsung Q1 Ultra UMPC Mount (Ultra version), you need to select a mount from the Samsung Q1 Ultra UMPC Mount Selection Page with the RAM-HOL-SAM2 Cradle
Samsung UMPC Mount Cradle Design:
The RAM-HOL-SAM1 High Strength Plastic Cradle is a custom cradle designed to hold the Samsung Q1 UMPC/Tablet Series, including the following UMPC units,
- Samsung Q1 UMPC
- Samsung Q1B UMPC
- Samsung Q1P UMPC
This custom cradle has a four (4) hole AMPS patten on the back for connecting to the RAM-B-202 Mounting Plate with 1 inch Ball giving you the freedom to mount the Samsung Q1 anywhere you need, while keeping all of your required cables connected.
Samsung UMPC Mount Cradle Plate: The RAM-202 Marine Grade Aluminum Round Plate is designed to connected to the back of the mount cradle with a AMPS hole pattern. The round plate has a 1.5 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1.5 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.5 inch rubber ball location, take a closer look with the RAM-202 Design Drawings (pdf file).
Samsung UMPC Mount Arm Design:
 The RAM-201 RAM Mount Dual Socket Arm is a 1.5 inch C size Ball Socket Arm made of Marine Grade Aluminum. The arm is 4.63 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-201 arm, take a closer look with the RAM-201 Design Drawings (pdf file).
Samsung UMPC Mount Post Design:The RAM-PA8212 RAM Mount Rigid Aluminum Post consists of a 12 inch long pipe with 0.5 inch NPT threaded ends. One end screws into the mount base, and the other to a RAM 1.5 inch ball on 0.5 inch NPT female post.
Samsung UMPC Mount Base Design:The RAM-B-131B RAM Mount Cessna Aircraft Seat Rail Base is a thin rail to mount either a 0.5 or 0.25 inch NPT threaded pipe. The base includes two rail connecting bolts to mount to the exiting seat rails in the aircraft.
Samsung UMPC Mount Options:
To help ensure you have the correct Samsung Q1 UMPC Mount for your needs, take a look at the list of available RAM Samsung UMPC mounts on the Samsung Q1 UMPC Mount Page. Here you can select from suction cup UMPC mounts, flat surface screw down UMPC mounts, UMPC car mounts, non skid weighted UMPC mounts and more bundled with the RAM-HOL-SAM1 Samsung Q1 UMPC Custom Cradle.
|
Features & Tips |
Here is a listing we have put together of some of the common Samsung Q1 UMPC Cessna Seat Rail Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for Samsung Q1 UMPC.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum Mount with Steel Pipe.
- Mount Ball Size: RAM 1.5 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1.5 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Single 1 inch Socket and Single Octagon Button Socket.
- Arm Length: Standard length of 4.63 inches between socket centers.
- Post Length: 12 inch Steel Pipe.
- Base Type: Cessna Aircraft Seat Rail Mount to be bolted into existing seat railing.
- Common Applications:
- Aviation Mounting: Attaching to existing seat rails on Cessna Aircraft.
|
