Customer Rating:  (based on 2 reviews). Email:
 Print:
100% of our reviewers recommend this item. See more RAM Mount items. |
| |
| List Price: |
$61.04CDN |
| Our Price: |
$48.95CDN (and this item ships for $4.99. Learn more.) |
| You Save: |
$12.09CDN (20%) |
Availability: |
In Stock.
Ships from Calgary on Monday, February 6. |
|
| |
| Model: |
RAM Mount Samsung Q1 Ultra UMPC Suction Cup Mount |
| Part No: |
RAM-B-166-SAM2U (also RAM-B-166-SAM2) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
| Learn More with our Instructional Videos (More GPS City videos.
Visit our Youtube channel.) |
RAM Rectangular Plate: Comparison Overview
(1,552 views) |
RAM Round Plate: Overview (RAM-B-202U)
(7,941 views) |
RAM AMPS Hole Pattern: Explained
(6,453 views) |
RAM Mount Plate: Overview (RAM-B-347)
(3,840 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(20,519 views) |
|
| Most Popular RAM Mount Samsung Q1 Ultra UMPC Suction Cup Mount Accessories
(View all accessories.) |
GPS City Super Grip Dashboard Friction Mount Base
$14.95
|
RAM Mount Black Rose Adhesive Plate for Suction Cups
$5.72
|
RAM Mount Black Large Adhesive Plate for Suction Cups
$4.41
|
RAM Mount Clear Large Adhesive Plate for Suction Cups
$4.41
|
RAM Mount RAM-A-CAN II Vehicle Cup Flat Surface Base
$28.95
|
|
| What's Included In The Box? |
The RAM Mount Samsung Q1 Ultra UMPC Suction Cup Mount ships with the following items included: |
| Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
UMPC Mounts |
| Model: |
RAM-B-166-SAM2U |
SKU: |
RAMB166SAM2 |
UPC: |
793442909535 |
| Announced: |
July 24, 2007 |
First Shipped: |
August 1, 2007 |
Weight: |
1.081 lbs. |
| RAM Mount Samsung Q1 Ultra UMPC Suction Cup Mount Description |

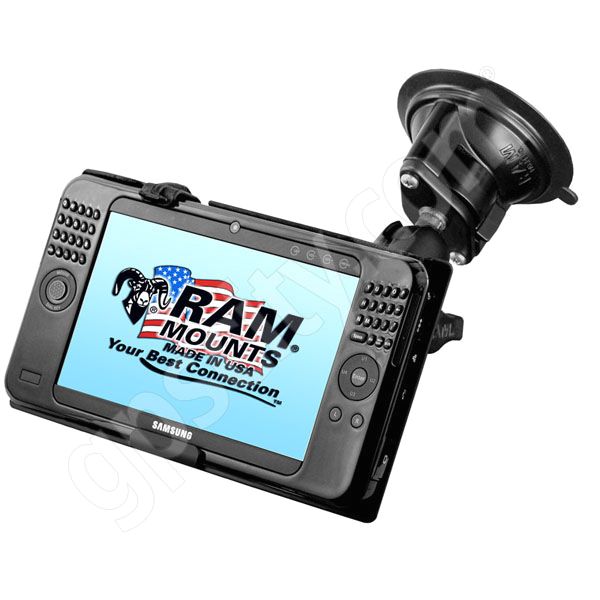

The RAM-B-166-SAM2 RAM Mount Marine Grade Aluminum Mount with Locking Suction Base consists of the 1 inch diameter ball and socket system with RAM Plastic Cradle for the Samsung Q1 Ultra UMPC Mobile Tablet Computer.
Note: If you are looking for a Samsung Q1 UMPC Mount (non Ultra version), you need to select a mount from the Samsung Q1 UMPC Mount Selection Page with the RAM-HOL-SAM1 Cradle

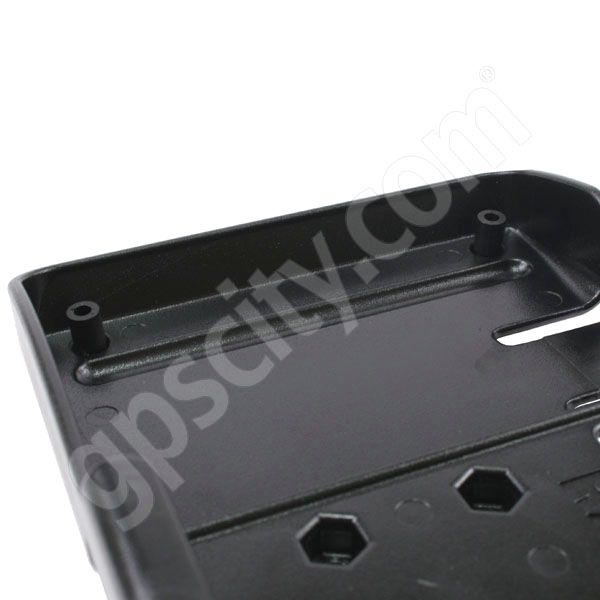

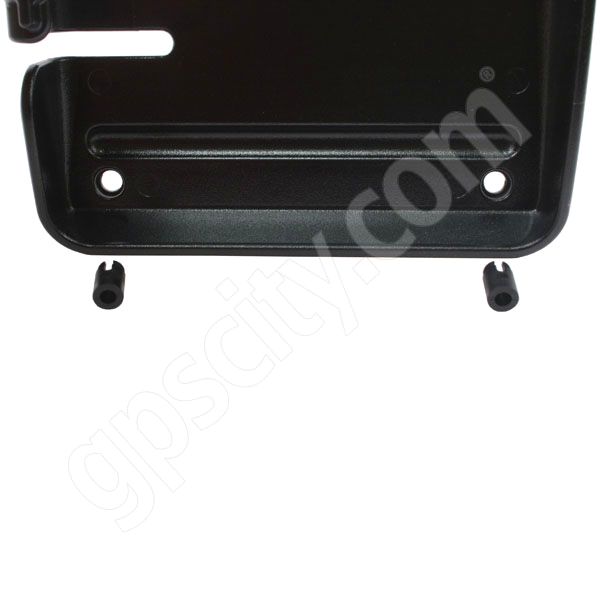

Samsung Q1 Ultra UMPC Mount Cradle Design:
The RAM-HOL-SAM2 High Strength Plastic Cradle is a custom cradle designed to hold the Samsung Q1 Ultra (Q1U) UMPC/Tablet Series, including the following UMPC units,
- Samsung Q1 Ultra UMPC
- Samsung Q1U-CMXP UMPC
- Samsung Q1U-EL UMPC
- Samsung Q1U-ELXP UMPC
- Samsung Q1U-SSDXP UMPC
- Samsung Q1U-V UMPC
- Samsung Q1U-XP UMPC
This custom cradle has a four (4) hole AMPS patten on the back for connecting to the RAM-B-202 Mounting Plate with 1 inch Ball giving you the freedom to mount the Samsung Q1 Ultra anywhere you need, while keeping all of your required cables connected.
Samsung Q1 Ultra UMPC Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Samsung Q1 Ultra UMPC Mount Base Design:
 The RAM-B-224-1 RAM Mount Plastic Locking 3.25 inch diameter Rubber Suction Cup Base, with Marine Grade Aluminum Diamond Plate, is designed to have an extra strong hold on any smooth non-porous surface. With a twist on the locking knob, the suction cup base adheres to any glass¹ or non-porous plastic surface, as found on our Non Skid Base with Plastic Disk and Plastic Adhesive Disk.
Connected to the top of the Suction Cup is a RAM-B-238 RAM Mount Marine Grade Aluminum Diamond Plate with 1 inch diameter Rubber Ball. This plate allows the suction cup to join to an open socket found on the RAM 1 inch diameter socket arms.
¹ Important legal note to California and Minnesota Drivers
Suction Cup Base Mounting Options:We currently offer three alternative solutions for mounting your suction cup mount in a location other than a windshield:
- The Super Grip Non Skid Base with round plastic plate, is a weighted base that can be placed on your dash without an adhesive or drilling. Simply place the base on your dash, or any flat surface and then attach the suction cup to the round plastic plate. This is perfect when you want a temporary mounting solution but the windshield mount just isn't the answer.
- The Suction Cup Adhesive Disk with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply stick the the plate to any flat surface and then attach the suction cup to the plate. This is perfect when you need to attach your suction cup mount to your car dash vertically or horizontally, rather than to your windshield.
- The Suction Cup Drink Cup Holder with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply place the base into any cup holder in your vehicle and then attach the suction cup to the plate found on top. This is perfect when you need to attach your suction cup mount away from the windshield or when you just want the mount off the dash.
Samsung Q1 Ultra UMPC Mount Options:
To help ensure you have the correct Samsung Q1 Ultra (Q1U) UMPC Mount for your needs, take a look at the list of available RAM Samsung UMPC mounts on the Samsung Q1 Ultra UMPC Mount Page. Here you can select from suction cup UMPC mounts, flat surface screw down UMPC mounts, UMPC car mounts, non skid weighted UMPC mounts and more bundled with the RAM-HOL-SAM2 Samsung Q1 Ultra (Q1U) UMPC Cradle.
|
| RAM Mount Samsung Q1 Ultra UMPC Suction Cup Mount Features & Tips |
Here is a listing we have put together of some of the common Samsung Q1 Ultra UMPC Suction Cup Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty
- Cradle Design: Custom Cradle for the Samsung Q1 Ultra UMPC Mobile Tablet Computer
- Cradle Material: High Strength Plastic
- Mount Material: Black Powder Coated Marine Grade Aluminum with Plastic/Rubber Locking Suction Cup
- Mount Ball Size: RAM 1 inch Solid Rubber Ball
- Pivot Point Design: RAM Patented RAM 1 inch Rubber Ball and Socket Joint
- Arm Type: RAM Arm with Dual 1 inch Sockets
- Arm Length: Standard length of 3 inches between socket centers
- Base Type: Round 3.25 inch diameter Locking Suction Cup for non-porous surfaces
|
