| Model: |
RAM Mount Samsung Q1 Ultra UMPC Screw Down Plate Mount |
| Part No: |
RAM-B-138-SAM2 |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Rectangular Plate: Comparison Overview
(2,134 views) |
RAM Round Plate: Overview (RAM-B-202U)
(8,290 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,920 views) |
|
What's Included In The Box? |
The RAM Mount Samsung Q1 Ultra UMPC Screw Down Plate Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
UMPC Mounts |
| Model: |
RAM-B-138-SAM2 |
SKU: |
RAMB138SAM2 |
UPC: |
793442910661 |
| Announced: |
January 29, 2008 |
First Shipped: |
January 29, 2008 |
Weight: |
0.950 lbs. |
Manufacturer Description |

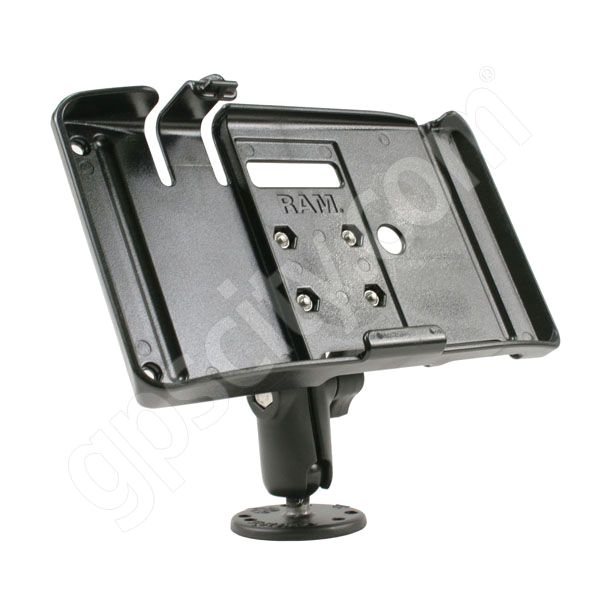

The RAM-B-138-SAM2 Samsung Q1 Ultra UMPC RAM Mount is a Marine Grade Aluminum Mount with a Flat Surface Base and RAM Plastic Cradle for the Samsung Q1 Ultra UMPC (Ultra Mobile PC). The mount is designed with a 1 inch diameter RAM ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Samsung Q1 Ultra UMPC mount to your optimum viewing position.
Note: If you are looking for a Samsung Q1 UMPC Mount (non Ultra version), you need to select a mount from the Samsung Q1 UMPC Mount Selection Page with the RAM-HOL-SAM1 Cradle
Samsung Q1 Ultra UMPC Mount Cradle Design:
The RAM-HOL-SAM2 High Strength Plastic Cradle is a custom cradle designed to hold the Samsung Q1 Ultra (Q1U) UMPC/Tablet Series, including the following UMPC units,
- Samsung Q1 Ultra UMPC
- Samsung Q1U-CMXP UMPC
- Samsung Q1U-EL UMPC
- Samsung Q1U-ELXP UMPC
- Samsung Q1U-SSDXP UMPC
- Samsung Q1U-V UMPC
- Samsung Q1U-XP UMPC
This custom cradle has a four (4) hole AMPS patten on the back for connecting to the RAM-B-202 Mounting Plate with 1 inch Ball giving you the freedom to mount the Samsung Q1 Ultra anywhere you need, while keeping all of your required cables connected.
Samsung Q1 Ultra UMPC Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Samsung Q1 Ultra UMPC Mount Base Design:
 The RAM-B-202 RAM Mount Marine Grade Aluminum Screw Down Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 2.5 inch diameter Plate. The plate has pre-drilled holes in the base plate, including the universal AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
Mount Base Mounting Solutions:Mounting hardware is NOT included with the purchase of the RAM-B-202. A semi-permanent solution for mounting this base is by using the RAM double sided adhesive disk (RAM-202PSA). The disk will hold the RAM-B-202 base in many different locations without screws.
Samsung Q1 Ultra UMPC Mount Options:
To help ensure you have the correct Samsung Q1 Ultra (Q1U) UMPC Mount for your needs, take a look at the list of available RAM Samsung UMPC mounts on the Samsung Q1 Ultra UMPC Mount Page. Here you can select from suction cup UMPC mounts, flat surface screw down UMPC mounts, UMPC car mounts, non skid weighted UMPC mounts and more bundled with the RAM-HOL-SAM2 Samsung Q1 Ultra (Q1U) UMPC Cradle.
|
Features & Tips |
Here is a listing we have put together of some of the common Samsung Q1 Ultra UMPC Screw Down Plate Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty
- Cradle Design: Custom Cradle for Samsung Q1 Ultra Series
- Cradle Material: High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Round 2.5 inch diameter plate design to be bolted to a flat surface.
- Common Applications:
- Vehicle Mounts: Attaching to vehicle dash or console with hardware or PSA Adhesive.
- Wall / Surface Mounts: Attaching to a flat surface or wall with hardware.
- Motorcycle Mounts: Attaching to small ledge or flat surface on motorcycle console.
|
