| Model: |
RAM Mount Samsung Q1 Ultra UMPC Edge Clamp Mount |
| Part No: |
RAM-B-177-SAM2 |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Rectangular Plate: Comparison Overview
(2,134 views) |
RAM Round Plate: Overview (RAM-B-202U)
(8,290 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
RAM Short Arm: Overview (RAM-B-201U-A)
(3,827 views) |
|
What's Included In The Box? |
The RAM Mount Samsung Q1 Ultra UMPC Edge Clamp Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
UMPC Mounts |
| Model: |
RAM-B-177-SAM2 |
SKU: |
RAMB177SAM2 |
UPC: |
|
| Announced: |
February 29, 2008 |
First Shipped: |
February 29, 2008 |
Weight: |
1.025 lbs. |
Manufacturer Description |

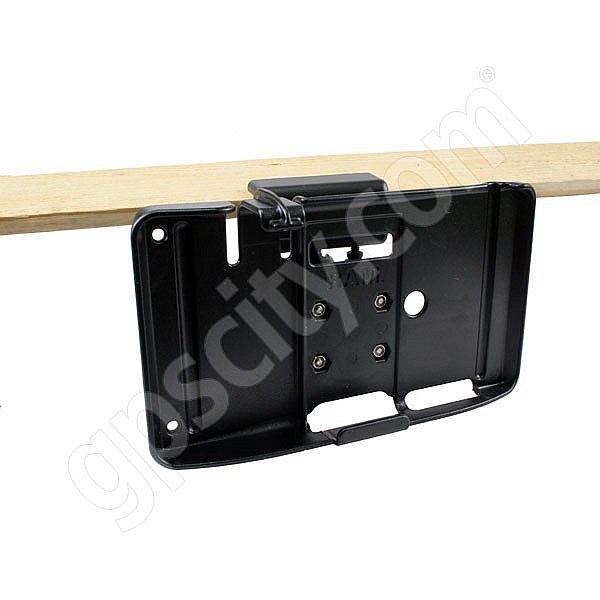

The RAM-B-177-SAM2 Samsung Q1 Ultra UMPC Series RAM Mount is a Marine Grade Aluminum Mount with a Glare Shield Clamp Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has an adjustment point at the cradle, base and dual arm junction point. With a twist of the arm knob, you can move the Samsung Q1 Ultra UMPC (Ultra Mobile PC) mount to your optimum viewing position.
Samsung Q1 UMPC Mount Cradle Design:
The RAM-HOL-SAM2 High Strength Plastic Cradle is a custom cradle designed to hold the Samsung Q1 Ultra (Q1U) UMPC/Tablet Series, including the following UMPC units,
- Samsung Q1 Ultra UMPC
- Samsung Q1U-CMXP UMPC
- Samsung Q1U-EL UMPC
- Samsung Q1U-ELXP UMPC
- Samsung Q1U-SSDXP UMPC
- Samsung Q1U-V UMPC
- Samsung Q1U-XP UMPC
This custom cradle has a four (4) hole AMPS patten on the back for connecting to the RAM-B-202 Mounting Plate with 1 inch Ball giving you the freedom to mount the Samsung Q1 Ultra anywhere you need, while keeping all of your required cables connected.
Samsung Q1 UMPC Mount Cradle Plate:
 The RAM-B-202 RAM Mount Marine Grade Aluminum Round Plate is designed to connected to the back of cradles with an AMPS hole pattern. The round plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
Samsung Q1 UMPC Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Samsung Q1 UMPC Mount Base Design:
The RAM-B-259U Powder Coated Marine Grade Aluminum U-Channel Clamp Base is designed to mount to the lip edge of a flat surface up to 1'' thick. Popular mounting edges include a car side window edge lip, table edge or glare shield on an airplance.
The base has two plastic bolts that, when tightened, clamp the base to the lip surface. A RAM 1'' diameter rubber ball is connected to the base allowing you to connect a RAM 1'' diamter arm socket and connection plates to create the perfect mount for your application.
Samsung Q1 UMPC Mount Options:
To help ensure you have the correct Samsung Q1 Ultra (Q1U) UMPC Mount for your needs, take a look at the list of available RAM Samsung UMPC mounts on the Samsung Q1 Ultra UMPC Mount Page. Here you can select from suction cup UMPC mounts, flat surface screw down UMPC mounts, UMPC car mounts, non skid weighted UMPC mounts and more bundled with the RAM-HOL-SAM2 Samsung Q1 Ultra (Q1U) UMPC Cradle.
|
Features & Tips |
Here is a listing we have put together of some of the common Samsung Q1 Ultra UMPC Edge Clamp Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Mount Cradle Design: Custom Cradle for Samsung Q1 Ultra UMPC (Ultra Mobile PC) Series.
- Mount Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3.0 inches between socket centers.
- Base Type: U-Channel clamp base design to be attached to a aviation glare lip.
- Common Applications:
- Aviation Mounts: Temporary attaching to glare shield.
|
