Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$59.94CDN |
| Our Price: |
$45.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$13.99CDN (23%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
| Model: |
RAM Mount Samsung Galaxy Tab 7.0 Plus Handlebar Rail Mount Zinc RAM-B-149Z-SAM6U |
| Part No: |
RAM-B-149Z-SAM6U (also RAM-B-149Z-SAM6) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Rectangular Plate: Comparison Overview
(2,134 views) |
RAM Round Plate: Overview (RAM-B-202U)
(8,290 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,920 views) |
|
What's Included In The Box? |
The RAM Mount Samsung Galaxy Tab 7.0 Plus Handlebar Rail Mount Zinc RAM-B-149Z-SAM6U ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Tablet Mounts |
| Model: |
RAM-B-149Z-SAM6U |
SKU: |
RAMB149ZSAM6 |
UPC: |
|
| Announced: |
December 21, 2011 |
First Shipped: |
March 12, 2012 |
Weight: |
1.282 lbs. |
Manufacturer Description |

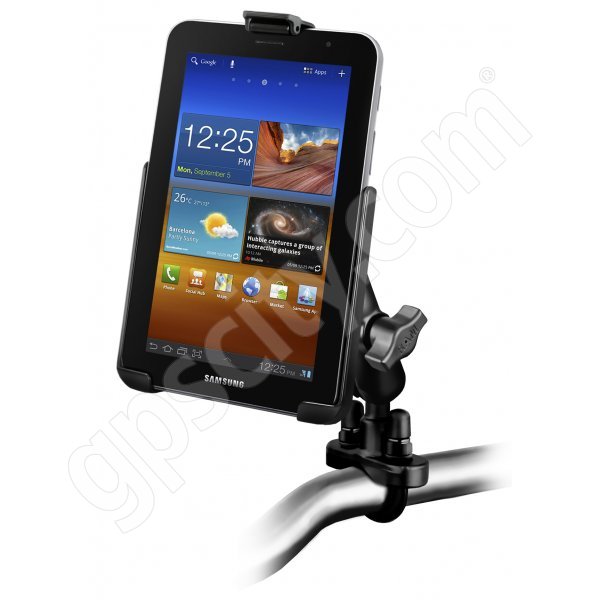

The RAM-B-149Z-SAM6 Samsung Galaxy Tab 7.0 Plus RAM Mount is a Marine Grade Aluminum Mount with a Zinc Coated U-Bolt Rail Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Samsung Galaxy Tab 7.0 Plus mount to your optimum viewing position.
Samsung Galaxy Tab 7.0 Plus Mount Cradle Design:
Samsung Galaxy Tab 7.0 Plus Mount Cradle Plate:
 The RAM-B-202 RAM Mount Marine Grade Aluminum Round Plate is designed to connected to the back of cradles with an AMPS hole pattern. The round plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
Samsung Galaxy Tab 7.0 Plus Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Samsung Galaxy Tab 7.0 Plus Mount Base Design:
 The RAM-B-231Z RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated metal U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
Note: If you are looking to use this mount in the elements, we suggest the RAM-B-231 Stainless Steel U-Bolt Mount.
|
Features & Tips |
Here is a listing we have put together of some of the common Samsung Galaxy Tab 7.0 Plus Handlebar Rail Mount Zinc RAM-B-149Z-SAM6U features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for Samsung Galaxy Tab 7.0 Plus.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Motorcycle Handlebar Base or Universal Round Pipe Base with Zinc Coated U-Bolt. (0.75 to 1 inch wide)
- Common Applications:
- Motorcycle and ATV Mounts: Attaching to handlebars.
- Hiking Mounts: Attaching to hiking staffs.
- General Mounts: Attaching to available pipes or poles.
|
