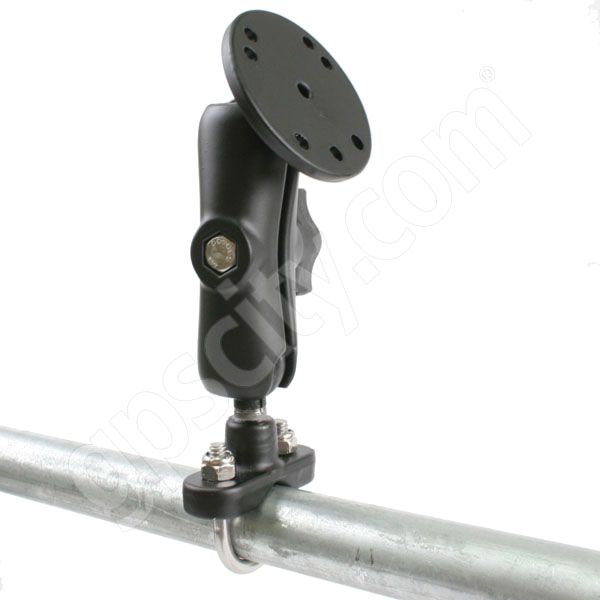

RAM Mount RAM-B-149-202U Stainless Steel U-Bolt with Aluminum Standard Arm and 2.5'' Round Plate Assembly


RAM Mount Round Plate Motorcycle Mount RAM-B-149-202U
Customer Images
Share your images and get a
free gpscity.ca t-shirt!
Not yet rated.    Email:  Email the RAM Mount Round Plate Motorcycle Mount RAM-B-149-202U page     Print:  Print the RAM Mount Round Plate Motorcycle Mount RAM-B-149-202U page
See more RAM Mount items.

List Price: $37.87CDN
Our Price: $30.95CDN   (Ships for $5.99. Restrictions apply.)
You Save: $6.92CDN (18%)

Availability:

In Stock.
Ships from Calgary on Monday, May 28.


Qty:

Model: RAM Mount Round Plate Motorcycle Mount RAM-B-149-202U
Part No: RAM-B-149-202U
Condition: Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses)
Price Match: Get an Instant Price Match in about 5 minutes (during business hours).

Learn More with our Instructional Videos

 » See our list of GPS City videos. Visit our Youtube channel.
RAM Rectangular Plate: Comparison Overview Video
RAM Rectangular Plate: Comparison Overview
(2,139 views)
RAM Round Plate: Overview (RAM-B-202U) Video
RAM Round Plate: Overview (RAM-B-202U)
(8,291 views)
RAM AMPS Hole Pattern: Explained Video
RAM AMPS Hole Pattern: Explained
(8,013 views)
RAM Mount Plate: Overview (RAM-B-347) Video
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views)
RAM Medium Arm: Overview (RAM-B-201U) Video
RAM Medium Arm: Overview (RAM-B-201U)
(21,924 views)

RAM Mount Sub-Component Breakdown

Here are the sub-component parts that make up this item:

Round Plate with 1 inch Ball RAM-B-202U
+
Medium Arm B-Socket RAM-B-201U
+
Steel U-Bolt Motorcycle Mount Base RAM-B-231U


What's Included In The Box?

The RAM Mount Round Plate Motorcycle Mount RAM-B-149-202U ships with the following items included:


Product Information

Manufacturer: National Products, Inc Category: All Purpose Mounts Type: Plate Mounts
Model: RAM-B-149-202U SKU: RAMB149-202 UPC:
Announced: February 7, 2007 First Shipped: August 2, 2001 Weight: 0.600 lbs.

Manufacturer Description

The RAM-B-149-202 RAM Mount Marine Grade Aluminum Motorcycle Handlebar Mount with Stainless Steel U-Bolt Base consists of the 1 inch diameter ball and socket system with a RAM Universal 2.5 inch diameter Round Plate End with AMPS hole patten.

The mount plate end is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the 2.5 inch diameter Plate will connect to a large variety of third party cradles and mounts.

Mount Base Design:

The RAM-B-231 RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Stainless Steel U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.

To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.

NOTE: This base is completely rust proof.

For Larger Rail Mounting:


For a larger rail, you can purchase the RAM Mount Stainless Steel Large Rail U-Bolt for circular rails with diameter up to 1.25 inches.

Mount Arm Design:
The RAM Mount Dual Socket Arm (RAM-B-201) is a B Size 1 inch Ball Dual Socket Arm, made of Marine Grade Aluminum. The arm is 3 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends.

Mount End Plate Design:

The RAM-B-202 RAM Mount Marine Grade Aluminum Universal Plate has a 1.0'' diameter Rubber Ball connected at right angles to a 2.5 inch diameter round plate. The plate has pre-drilled holes in the base plate, including the universal AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).

Note: This base plate will attach to any of the RAM plastic HOL holders, but generally the RAM-B-238 Diamond Plate is used.
