Customer Images
Share your images and get a
free gpscity.ca t-shirt!
|
Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$28.75CDN |
| Our Price: |
$21.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$6.80CDN (24%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
| Model: |
RAM Mount Roadmate Series Screw Down Mount |
| Part No: |
RAM-B-101-MA4U (also RAM-B-101-MA4) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Cradle Plate: In the Box (RAM-B-202-MA4)
(836 views) |
RAM Cradle Plate: Connection (RAM-B-202-MA4)
(911 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,920 views) |
RAM Rectangular Plate: Comparison Overview
(2,134 views) |
RAM Round Plate: Overview (RAM-B-202U)
(8,290 views) |
|
What's Included In The Box? |
The RAM Mount Roadmate Series Screw Down Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-101-MA4U |
SKU: |
RAMB101MA4 |
UPC: |
793442210143 |
| Announced: |
November 30, 1999 |
First Shipped: |
May 17, 2004 |
Weight: |
0.551 lbs. |
Manufacturer Description |

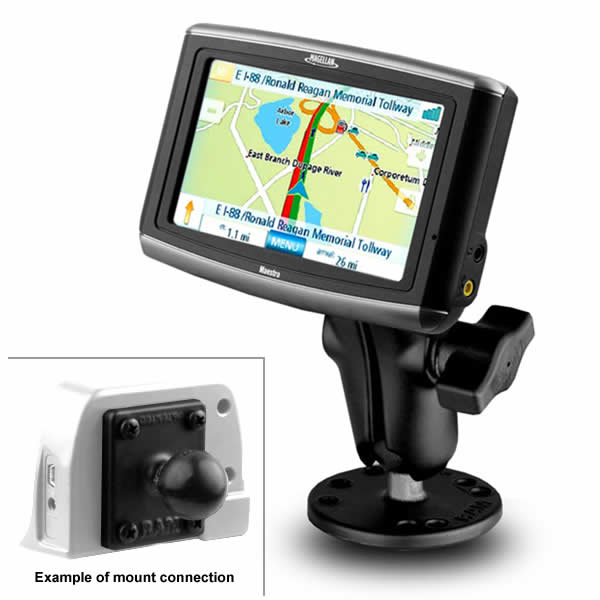

The RAM-B-101-MA4 RAM Mount Marine Grade Aluminum Mount, with Flat Surface Screw Down Base, consists of the 1 inch diameter ball and socket system with RAM Universal rectangular plate and connection hardware for the Magellan Roadmate. The cradle may be included with the purchase of your Roadmate, or you can purchase a second cradle if required.
Mount Cradle Design:
The RAM-B-202-MA4 Aluminum Rectangular Plate has a four hole pattern, and four screws, that will connect to the existing holes found on the back of the following cradles made by Magellan:
Note: The Magellan cradles listed may be included with the purchase of each GPS unit, or can purchased separately.
Connection Hardware Included:
The plate includes a set of four screws to connect the plate to the back of the Roadmate cradle.
Part Design Change:
This part originally shipped with a RAM Aluminum Diamond Plate (RAM-B-238) and two screws to connect diagonally with te Magellan Roadmate Cradles.
Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Mount Base Design:
 The RAM-B-202 RAM Mount Marine Grade Aluminum Universal Plate has a 1.0'' diameter Rubber Ball connected at right angles to a 2.5 inch diameter round plate. The plate has pre-drilled holes in the base plate, including the universal AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
Note: This base plate will attach to any of the RAM plastic HOL holders, but generally the RAM-B-238 Diamond Plate is used.
|
Features & Tips |
Here is a listing we have put together of some of the common Roadmate Series Screw Down Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty
- Cradle Design: Custom Holder and Screws to connect to Magellan Roadmate GPS Cradle
- Cradle Material: Black Powder Coated Marine Grade Aluminum
- Mount Material: Black Powder Coated Marine Grade Aluminum
- Mount Ball Size: RAM 1 inch Solid Rubber Ball
- Pivot Point Design: RAM Patented RAM 1 inch Rubber Ball and Socket Joint
- Arm Type: RAM Arm with Dual 1 inch Sockets
- Arm Length: Standard length of 3 inches between socket centers
- Base Type: Round 2.5 inch diameter Plate design to be bolted to a flat surface
|
