Customer Rating:  (based on 6 reviews). Email:
 Print:
100% of our reviewers recommend this item. See more RAM Mount items. |
| |
| List Price: |
$122.31CDN |
| Our Price: |
$96.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$25.36CDN (21%) |
Availability: |
Please call 1-866-GPS-CITY for availability. |
|
| |
|
|
| Model: |
RAM Mount Rectangular Plate Short Arm Round Base Mount 2.25 Ball |
| Part No: |
RAM-D-111U-C (also RAM-D-111-C) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
What's Included In The Box? |
The RAM Mount Rectangular Plate Short Arm Round Base Mount 2.25 Ball ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Marine Mounts |
| Model: |
RAM-D-111U-C |
SKU: |
RAMD111-C |
UPC: |
793442902277 |
| Announced: |
April 14, 2002 |
First Shipped: |
June 1, 2003 |
Weight: |
3.450 lbs. |
Manufacturer Description |

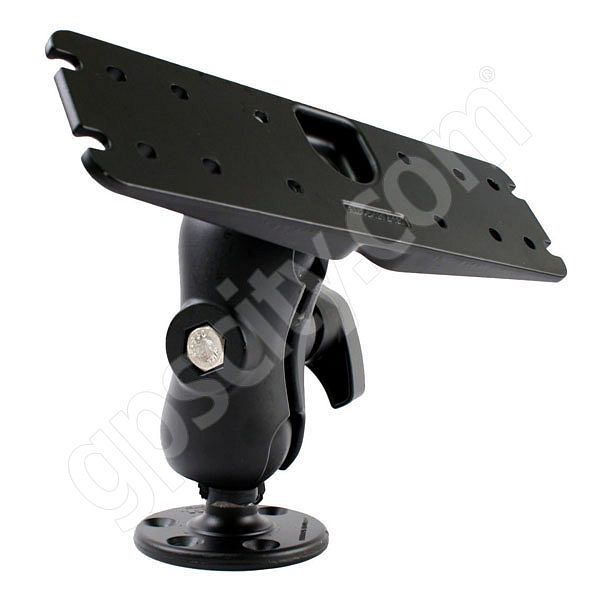

The RAM-D-111-C RAM Mount Marine Grade Aluminum Mount, with Short Arm and Screw Down Base, consists of the 2.25 inch diameter ball and socket system with RAM Universal Rectangular 11 x 3 inch Plate. This mount is designed to be a universal mounting solution for large and heavy electronic devices, including large Marine GPS. The hole pattern found on the rectangular plate will connect to a large variety of third party cradle, gimbal brackets and mounts. For a layout of the mounts hole spacing, height and dimensions, take a closer look with the RAM-D-111-C Design Drawings (pdf file).
Rectangular Universal Mount End Plate Design:The RAM-D-111B RAM Mount Marine Grade Aluminum Universal Rectangular Plate has a 2.25 inch diameter rubber ball connected at right angles to a 11 x 3 inch plate. The plate has some pre-drilled holes which may match up to your electronic devices and mounts, or you can drill new holes of your own. For a layout of the 2.25 inch rubber ball location, take a closer look with the RAM-D-111B Design Drawings (pdf file) , and for the hole spacing layout, you can take a closer look with the RAM-E-111B Design Drawings (pdf file)
Rectangular Universal Mount Arm Design:The RAM-D-201-C RAM Mount Dual Socket Short Arm is a 2.25 inch D size Ball Socket Arm made of Marine Grade Aluminum. The arm is 3.63 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends.
Rectangular Universal Mount Base Design:The RAM-D-202 RAM Mount Marine Grade Aluminum Screw Down Plate has a 2.25 inch diameter Rubber Ball connected at right angles to a 3.68 inch diameter Plate. The plate has pre-drilled holes in the base plate, including two holes at 180 degrees and three holes at 120 degrees. For a layout of the dimensions RAM-D-202 plate, take a closer look with the RAM-D-202 Design Drawings (pdf file).
Note: Mounting hardware is NOT included with the purchase of the RAM-D-202.
Rectangular Universal Mount Options:To help ensure you have the Rectangular Universal Electronics and Marine Mount you require, take a look at the list of available RAM Universal Plate mounts on the Rectangular Universal Electronic Mount Page. Here you can select from flat surface screw down mounts, different length arm mounts, pole/post mounts and more bundled with the RAM-D-111B Rectangular Universal Electronics and Marine Plate.
|
Features & Tips |
Here is a listing we have put together of some of the common Rectangular Plate Short Arm Round Base Mount 2.25 Ball features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty
- Cradle Design: Rectangular Plate to connect large and heavy electronics including Marine GPS
- Cradle Material: Black Powder Coated Marine Grade Aluminum Plate
- Mount Material: Black Powder Coated Marine Grade Aluminum
- Mount Ball Size: RAM 2.25 inch Solid Rubber Ball
- Pivot Point Design: RAM Patented RAM 2.25 inch Rubber Ball and Socket Joint
- Arm Type: RAM Arm with Dual 2.25 inch Sockets
- Arm Length: Short length of 3.63 inches between socket centers
- Base Type: Round 3.68 inch diameter Plate design to be bolted to a flat surface
|
