Customer Images
Share your images and get a
free gpscity.ca t-shirt!
|
Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$47.11CDN |
| Our Price: |
$37.95CDN (and this item ships for $4.99. Learn more.) |
| You Save: |
$9.16CDN (19%) |
Availability: |
In Stock.
Ships from Calgary today, February 8. |
|
| |
| Model: |
RAM Mount Rectangular Plate on Standard Arm U-Bolt Mount 1.0 Ball |
| Part No: |
RAM-B-111RU |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
| Learn More with our Instructional Videos (More GPS City videos.
Visit our Youtube channel.) |
RAM Medium Arm: Overview (RAM-B-201U)
(20,573 views) |
RAM Motorcycle U-Bolt Base: On Suzuki (RAM-B-231U)
(22,564 views) |
RAM Motorcycle U-Bolt Base: In the Box (RAM-B-231U)
(3,359 views) |
RAM Motorcycle U-Bolt Base: Overview (RAM-B-231U)
(6,716 views) |
RAM Chrome Motorcycle U-Bolt Mount: Harley (RAM-B-231CHU)
(4,871 views) |
|
| What's Included In The Box? |
The RAM Mount Rectangular Plate on Standard Arm U-Bolt Mount 1.0 Ball ships with the following items included: |
| Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Marine Mounts |
| Model: |
RAM-B-111RU |
SKU: |
RAMB111R |
UPC: |
|
| Announced: |
November 30, 1999 |
First Shipped: |
February 22, 2002 |
Weight: |
0.800 lbs. |
| RAM Mount Rectangular Plate on Standard Arm U-Bolt Mount 1.0 Ball Description |

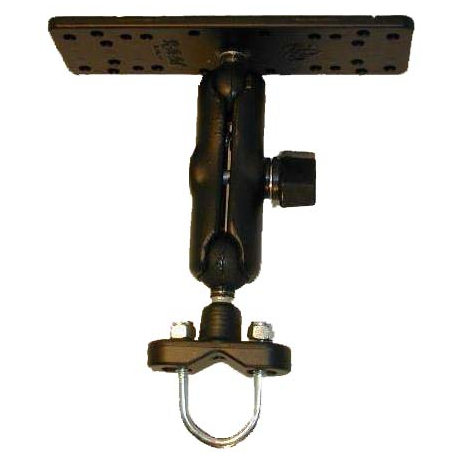

The RAM-B-111R RAM Mount Marine Grade Aluminum Mount, with Stainless Steel U-Bolt Rail Base, consists of the 1 inch diameter ball and socket system with RAM Universal Rectangular 6.25 x 2 inch Plate. This mount is designed to be a universal mounting solution for large electronic devices, including Marine GPS, CB Radios, Ham Radios and more. The hole pattern found on the rectangular plate will connect to a large variety of third party cradle, gimbal brackets and mounts.
Rectangular Universal Mount End Plate Design:The RAM-B-111B RAM Mount Marine Grade Aluminum Universal Rectangular Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 6.25 x 2 inch plate. The plate has many different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. For a layout of the hole spacing and 1 inch rubber ball location, take a closer look with the RAM-B-111B Design Drawings (pdf file).
Rectangular Universal Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Rectangular Universal Mount Base Design:
 The RAM-B-231 RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Stainless Steel U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
NOTE: This base is completely rust proof.
For Larger Rail Mounting:
For a larger rail, you can purchase the RAM Mount Stainless Steel Large Rail U-Bolt for circular rails with diameter up to 1.25 inches.
Rectangular Universal Mount Options:To help ensure you have the Rectangular Universal Electronics and Marine Mount you require, take a look at the list of available RAM Universal Plate mounts on the Rectangular Universal Electronics and Marine Mount Page. Here you can select from suction cup mounts, flat surface screw down mounts, car mounts, pole/post mounts and more bundled with the RAM-B-111B Rectangular Universal Electronics and Marine Plate.
|
| RAM Mount Rectangular Plate on Standard Arm U-Bolt Mount 1.0 Ball Features & Tips |
Here is a listing we have put together of some of the common Rectangular Plate on Standard Arm U-Bolt Mount 1.0 Ball features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty
- Cradle Design: Rectangular Plate to connect Marine GPS, CB Radios, Ham Radios and more
- Cradle Material: Black Powder Coated Marine Grade Aluminum Plate
- Mount Material: Black Powder Coated Marine Grade Aluminum
- Mount Ball Size: RAM 1 inch Solid Rubber Ball
- Pivot Point Design: RAM Patented RAM 1 inch Rubber Ball and Socket Joint
- Arm Type: RAM Arm with Dual 1 inch Sockets
- Arm Length: Standard length of 3 inches between socket centers
- Base Type: Motorcycle Handlebar Base or Universal Round Pipe Base with Stainless Steel U-Bolt
|
This mount is completely rust proof.
|
