Customer Images
Share your images and get a
free gpscity.ca t-shirt!
|
Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$77.70CDN |
| Our Price: |
$59.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$17.75CDN (23%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
| Model: |

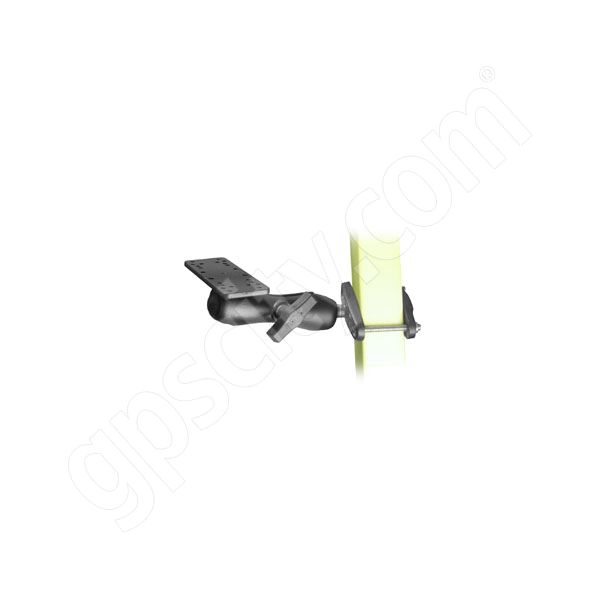

RAM Mount Rectangular Plate 3 inch Square Rail Clamp Mount |
| Part No: |
RAM-111-247U-3 (also RAM-111-247-3) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
What's Included In The Box? |
The RAM Mount Rectangular Plate 3 inch Square Rail Clamp Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Plate Mounts |
| Model: |
RAM-111-247U-3 |
SKU: |
RAM111-247-3 |
UPC: |
793442913297 |
| Announced: |
September 25, 2006 |
First Shipped: |
June 1, 2003 |
Weight: |
1.644 lbs. |
Manufacturer Description |
The RAM-111-247-3 RAM Mount Marine Grade Aluminum Mount, with Square Rail Clamp Base, consists of the 1.5 inch diameter ball and socket system with RAM Universal Rectangular 6.25 x 2 inch Plate. This mount is designed to be a universal mounting solution for large and heavy electronic devices, including GPS, CB Radios, Ham Radios and more. The hole pattern found on the rectangular plate will connect to a large variety of third party cradle, gimbal brackets and mounts. The mounting base is a perfect solution for mounting to the cabin frame work on a fork lift, or any other square post up to 3 inches square.
Rectangular Universal Mount End Plate Design:The RAM-111B RAM Mount Marine Grade Aluminum Universal Rectangular Plate has a 1.5 inch diameter rubber ball connected at right angles to a 6.25 x 2 inch plate. The plate has many different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. For a layout of the hole spacing and 1.5 inch rubber ball location, take a closer look with the RAM-111B Design Drawings (pdf file).
Rectangular Universal Mount Arm Design:
 The RAM-201 RAM Mount Dual Socket Arm is a 1.5 inch C size Ball Socket Arm made of Marine Grade Aluminum. The arm is 4.63 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-201 arm, take a closer look with the RAM-201 Design Drawings (pdf file).
Rectangular Universal Mount Base Design:The RAM-247-3 RAM Mount Marine Grade Aluminum 3 inch Square Pipe Clamp Base, with 1.5 inch diameter rubber ball, connects to a post tube up to 3 inches square. To connect the base, simply place the two halves around the pipe to be mounted and thread the bolts through the base holes. Now tighten the two screws equally at the sides of the flat clamp base, careful not to over tighten.
Rectangular Universal Mount Options:To help ensure you have the Rectangular Universal Electronics and Marine Mount you require, take a look at the list of available RAM Universal Plate mounts on the Rectangular Universal Electronics and Marine Mount Page. Here you can select from suction cup mounts, flat surface screw down mounts, car mounts, pole/post mounts and more bundled with the RAM-111B Rectangular Universal Electronics and Marine Plate.
|
Features & Tips |
Here is a listing we have put together of some of the common Rectangular Plate 3 inch Square Rail Clamp Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty
- Cradle Design: Rectangular Plate to connect Marine GPS, CB Radios, Ham Radios and more
- Cradle Material: Black Powder Coated Marine Grade Aluminum Plate
- Mount Material: Black Powder Coated Marine Grade Aluminum
- Mount Ball Size: RAM 1.5 inch Solid Rubber Ball
- Pivot Point Design: RAM Patented RAM 1.5 inch Rubber Ball and Socket Joint
- Arm Type: RAM Arm with Dual 1.5 inch Sockets
- Arm Length: Standard length of 4.63 inches between socket centers
- Base Type: Universal 3 inch Square Pipe Base with Aluminum Flat Clamps
- Main Application: Fork lift cabin frame work
|
