RAM Mount Plastic StreetPilot III GPSMAP 175 195 295 Handlebar Rail Mount


RAM Mount RAP-B-149-G1
Customer Images
Share your images and get a
free gpscity.ca t-shirt!
Not yet rated.    Email:  Email the RAM Mount RAP-B-149-G1 page     Print:  Print the RAM Mount RAP-B-149-G1 page
See more RAM Mount items.


This item is not currently available. Please check back to see if it becomes available.

Accessories may still be available for this item. Click to view accessories.



Learn More with our Instructional Videos   (More GPS City videos. Visit our Youtube channel.)
RAM Mount Universal Plate Hardware (RAM-S-G1U) Video
RAM Mount Universal Plate Hardware (RAM-S-G1U)
(380 views)
RAM Mount Plate: Overview (RAM-B-347) Video
RAM Mount Plate: Overview (RAM-B-347)
(3,889 views)
RAM AMPS Hole Pattern: Explained Video
RAM AMPS Hole Pattern: Explained
(6,550 views)
RAM Medium Arm: Overview (RAP-B-201) Video
RAM Medium Arm: Overview (RAP-B-201)
(1,777 views)

See More Videos:

GPS City Video Page


RAM Mount Sub-Component Breakdown
Here are the sub-component parts that make up this item:

Hardware for Cradle Connection RAM-S-G1U
+
Plastic Round Base with 1 inch Ball RAP-B-202U
+
Plastic Medium Arm B-Socket RAP-B-201U
+
Plastic Rail Mount Base with 1 inch Ball RAP-B-231U

What's Included In The Box?

The RAM Mount RAP-B-149-G1 ships with the following items included:


Product Information
Manufacturer: National Products, Inc Category: All Purpose Mounts Type: GPS Mounts
Model: RAP-B-149-G1U SKU: RAPB149G1 UPC: 793442849091
Announced: November 30, 1999 First Shipped: November 7, 2001 Weight: 0.420 lbs.

Alternative Models For This Item
RAM Mount Four Hole AMPS Plate on Zinc U-Bolt Mount
RAM Mount Four Hole AMPS Plate on Zinc U-Bolt Mount
RAM Mount Four Hole AMPS Plate Stainless Steel U-Bolt Mount
RAM Mount Four Hole AMPS Plate Stainless Steel U-Bolt Mount
RAM Mount RAP-B-149-G1
RAM Mount RAP-B-149-G1


RAM Mount RAP-B-149-G1 Description

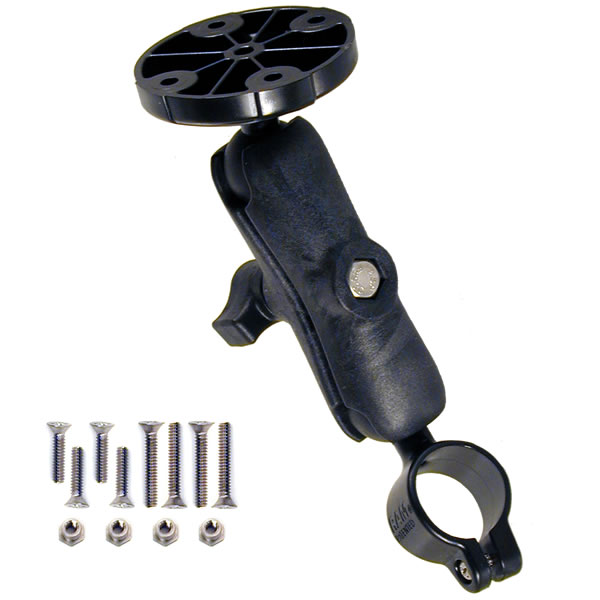

The RAP-B-149-G1 RAM Mount High Strength Plastic Rail Mount consists of the 1 inch diameter ball and socket system with RAM Universal 2.5 inch diameter Plate and connection hardware. This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the 2.5 inch connector plate will connect to a large variety of third party cradles and mounts.

Mount Cradle Design:

The RAP-B-202-G1 High Strength Plastic 2.5 inch diameter round plate, with connection plate hardware, has an AMPS hole pattern which will connect to many different cradles. The plate ships with a set of short and long nuts and bolts to connect the plate to your required cradle, and many other devices. This RAM Mount plate will connect to many different cradles made by Garmin with an AMPS four hole pattern, including the following:
Note: The Garmin cradles listed are included with the purchase of each GPS unit, or can purchased separately.

* The Garmin cradle for the GPSMAP 176, GPSMAP 176C, GPSMAP 276C, GPSMAP 196 (only the cradle on the yoke mount) and GPSMAP 296 (only the cradle on the yoke mount) will connect to this RAM mount, by unscrewing the cradle from the mount. For an even stronger holding cradle, you can purchase the cradle manufactured by RAM (RAM-HOL-GA7).

Mount Arm Design:

The RAP-B-201 RAM Mount Dual Socket Arm is a 1 inch B size Ball Dual Socket Arm made of High Strength Plastic. The arm is 3.0 inches long between socket centers. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAP-B-201 arm, take a closer look with the RAM-B-201 Aluminum Arm Design Drawings (pdf file).

Mount Base Design:

The High Strength Plastic Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Rail 'U' Clamp will fit a circular rail with diameter up to 1.0 inch.

For a larger rail, you can purchase the RAM-B-231Z Aluminum Rail Base with Zinc Coated U-Bolt for circular rails with diameter from 1/2 to 1 3/8 inches.

NOTE: Placing a rubber lining (not included) between the tube and the mount for a tube with a diameter less than 1.0 inch will help the base 'grab' the rail.

IMPORTANT NOTE FOR MOTORCYCLES USES:



This base is NOT recommended for Motorcycles due to the heavy vibration. An alternative would be the RAM-B-231 Stainless Steel U-Bolt Base and the RAM-B-149 Stainless Steel U-Bolt System.
