Customer Images
Share your images and get a
free gpscity.ca t-shirt!
|
Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$66.06CDN |
| Our Price: |
$50.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$15.11CDN (23%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
| Model: |
RAM Mount RAM-B-125-CO4 |
| Part No: |
RAM-B-125-CO4U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Extension Plate Angled: Overview (RAM-B-125B)
(948 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,920 views) |
RAM Clamp Mount Base with B-Ball (RAM-B-121BU)
(2,122 views) |
Check out our
channel. | |
|
What's Included In The Box? |
The RAM Mount RAM-B-125-CO4 ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
PDA Mounts |
| Model: |
RAM-B-125-CO4U |
SKU: |
RAMB125CO4 |
UPC: |
|
| Announced: |
November 30, 1999 |
First Shipped: |
February 25, 2004 |
Weight: |
1.013 lbs. |
Manufacturer Description |

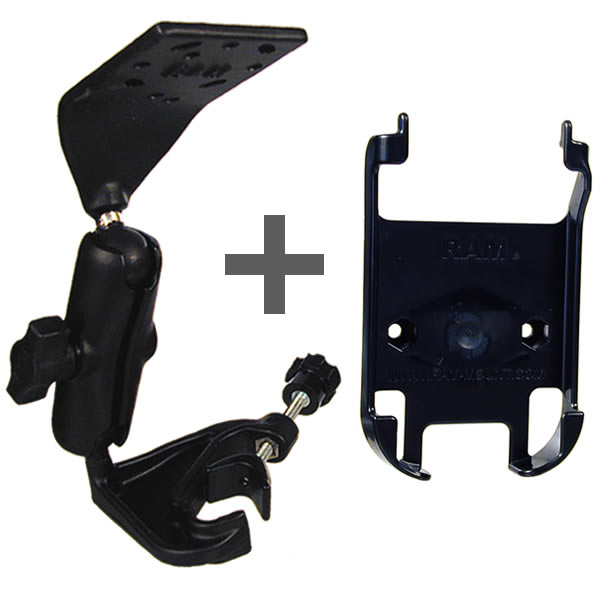

The RAM Marine Grade Aluminum Yoke Mount, with Extension Plate, consists of the 1'' dia. ball and socket system with RAM Plastic Cradle for the Compaq iPaq 1900 and 4100 Series.
BASE DESIGN:
The Powder Coated Marine Grade Aluminum Yoke Clamp Mount Base fits a rail diameter from 5/8 inches to a maximum of 1 1/4 inches. The 1 inches rubber ball is at a right angle to the plane of the mount so when connected to a rail, the ball sits parallel to the rail.
To mount the base, simply place the yoke clamps around the rail and then screw the large knob at the end of the threaded rod. The hand tightened clamp makes this the perfect mounting system for rental planes and unusual shaped motorbike rails.
Note: The rail does not need to be perfectly round to mount this base.
Extension plate DesignThe RAM Powder Coated Marine Grade Aluminum Extension Plate with 1 inch Rubber Ball allows you to maneuver your GPS unit, or any connected device, in more positions than the standard mounting plate. Originally designed to position your GPS in front of the yoke on your plane, the extension plate can also be used in many other applications.
The connection section of the plate is 2.5 inch square with predrilled holes for many different screw hole patterns, including the universal AMPS hole pattern and all RAM made cradles. The connection section extends approximately 2.25 inches forward, at a 45 degree angle, from the center of the 1'' ball and approximately 1.5 inch above the 1 inch ball (to the bottom of the connection section of the plate).
ARM DESIGN:
The Powder Coated Marine Grade Aluminum Standard Length Double Socket Arm is 3.0'' long when measured between socket centers.
CRADLE DESIGN:
 The RAM-HOL-CO4 RAM Mount High Strength Plastic Cradle is designed to hold Compaq iPaq PDA units, including the following,
- Compaq iPaq 1900 Series
- Compaq iPaq 4100 Series
Expansion Packs:
This cradle will hold your PDA if connected to an expansion pack, or left in the original protective cover.
|
