Customer Images
Share your images and get a
free gpscity.ca t-shirt!
|
Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$53.97CDN |
| Our Price: |
$41.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$12.02CDN (22%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
| Model: |
RAM Mount RAM-B-108-PD1 |
| Part No: |
RAM-B-108-PD1U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,594 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,920 views) |
Check out our
channel. |
|
What's Included In The Box? |
The RAM Mount RAM-B-108-PD1 ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
PDA Mounts |
| Model: |
RAM-B-108-PD1U |
SKU: |
RAMB108PD1 |
UPC: |
|
| Announced: |
November 30, 1999 |
First Shipped: |
August 29, 2001 |
Weight: |
0.938 lbs. |
Manufacturer Description |

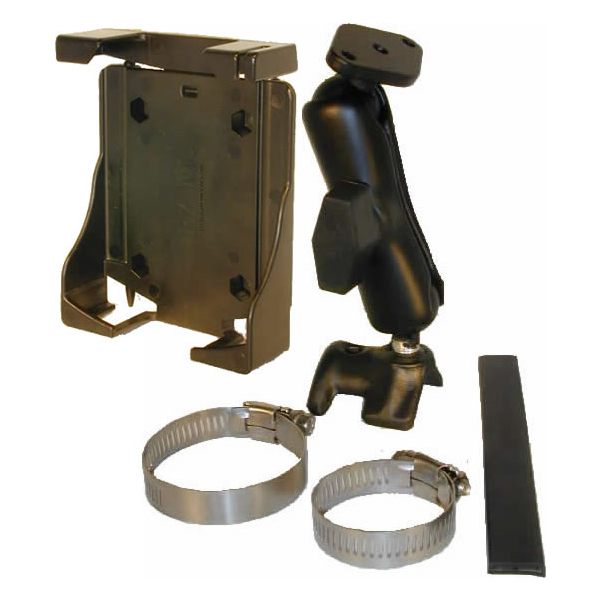

The RAM-B-108-PD1U Universal PDA RAM Mount is a Marine Grade Aluminum Mount with a Universal Strap Base and RAM Top Clamping Universal Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the PDA mount to your optimum viewing position.
PDA Mount Cradle Design:
 The RAM-HOL-PD1 RAM Mount high strength plastic top clamping cradle is designed to hold a large amount of different kinds of electronic devices, especially PDAs. For a layout of the dimensions RAM-HOL-PD1 cradle, take a closer look with the RAM-HOL-PD1 Design Drawings (pdf file).
Cradle Dimensions:
- Cradle Height Range: 4.38 to 5.75 inches
- Cradle Maximum Width: 3.39 inches
- Cradle Maximum Thickness: 0.87 inches
PDA Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
PDA Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
PDA Mount Base Design:
 The RAM-B-108B RAM Mount Marine Grade Aluminum Rail Strap Mount Base is a clamping rail strap base. The base includes a 6 inch metal strap and an 8 inch long metal strap designed to fit a rail or post with a diameter from 1 to 1.9 inches. When the base is mounted, a 1 inch rubber ball sits at a right angles to the mounting post.
NOTE: The base mounts on round, square or odd shaped posts.
|
Features & Tips |
Here is a listing we have put together of some of the common RAM-B-108-PD1 features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Universal Top Clamp PDA Cradle.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: ATV/UTV base, Motorcycle Handlebar Base or Universal Round Pipe Strap Base
- Common Applications:
- ATV/UTV Mounts: Attaching to handlebars.
- Motorcycle Mounts: Attaching to handlebars.
- Hiking Mounts: Attaching to hiking staffs.
- Marine Mounts: Attaching to available pipes or poles.
- General Mounts: Attaching to available pipes or poles.
|
