Product Detail & Documentation (all files in PDF format)
Manufacturer
RAM Mount
Category
GPS Mounts
Model
RAM-B-101-G1U
SKU
RAMB101G1
Weight
0.575 lbs.
Share this item:
Need Assistance? We're here to help. (That's the GPS City Difference!)
For quick help selecting the right GPS unit, try our
GPS Selector Tool,
check specifications, or
compare GPS units. If you have a specific question about an
item, try entering your question using the
Q&A (Questions & Answers) section above - we usually respond on the same or next day. During our office hours 9AM - 6PM MDT, Mon-Fri, you can contact us using
, or reach us by phone at 1-866-GPS-CITY.
What's Included With The RAM Mount RAM-B-101-G1? The RAM Mount RAM-B-101-G1 ships with the following items included:

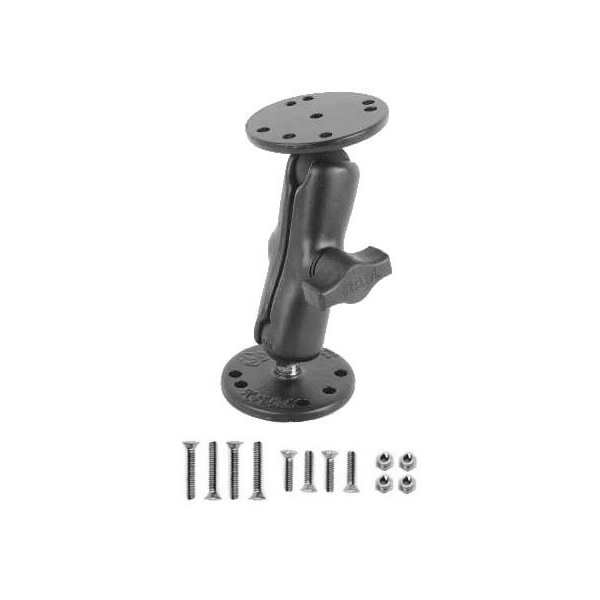

RAM Mount RAM-B-101-G1 Description The RAM-B-101-G1 RAM Mount Marine Grade Aluminum Mount, with Flat Surface Screw Down Base, consists of the 1 inch diameter ball and socket system with RAM Universal 2.5 inch diameter Plate and connection hardware. This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the 2.5 inch diameter connection plate will connect to a large variety of third party cradles and mounts.
Mount Cradle Design:
The RAM-B-202-G1 RAM Mount Aluminum 2.5 inch diameter round plate, with connection plate hardware, has an AMPS hole pattern which will connect to many different cradles. The plate ships with a set of short and long nuts and bolts to connect the plate to your required cradle, and many other devices. This RAM Mount plate will connect to many different cradles made by Garmin with an AMPS four hole pattern, including the following:
Note: The Garmin cradles listed are included with the purchase of each GPS unit, or can purchased separately.
* The Garmin cradle for the GPSMAP 176, GPSMAP 176C, GPSMAP 276C, GPSMAP 196 (only the cradle on the yoke mount) and GPSMAP 296 (only the cradle on the yoke mount) will connect to this RAM mount, by unscrewing the cradle from the mount. For an even stronger holding cradle, you can purchase the cradle manufactured by RAM (RAM-HOL-GA7).
Mount Arm Design:
The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Mount Base Design:
The RAM-B-202 RAM Mount Marine Grade Aluminum Universal Plate has a 1.0'' diameter Rubber Ball connected at right angles to a 2.5 inch diameter round plate. The plate has pre-drilled holes in the base plate, including the universal AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
Note: This base plate will attach to any of the RAM plastic HOL holders, but generally the RAM-B-238 Diamond Plate is used.
Tags for: RAM Mount RAM-B-101-G1 ram mount ram mounts, ram b 101 g1, ram mount ram b 101 g1.
