| Model: |
RAM Mount Radio Belt Clip Bar Stainless Steel U-Bolt Mount |
| Part No: |
RAM-B-149-BC1U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,594 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,920 views) |
RAM Motorcycle U-Bolt Base: On Suzuki (RAM-B-231U)
(25,241 views) |
|
What's Included In The Box? |
The RAM Mount Radio Belt Clip Bar Stainless Steel U-Bolt Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Radio Mounts |
| Model: |
RAM-B-149-BC1U |
SKU: |
RAMB149BC1 |
UPC: |
|
| Announced: |
November 30, 1999 |
First Shipped: |
October 4, 2001 |
Weight: |
0.707 lbs. |
RAM Mount Radio Belt Clip Bar Stainless Steel U-Bolt Mount Alternative Models |
RAM Mount Radio Belt Clip Bar Strap Mount RAM-B-108-BC1U |
RAM Mount Radio Belt Clip Bar Zinc Coated U-Bolt Mount |
RAM Mount Radio Belt Clip Bar Stainless Steel U-Bolt Mount |
RAM Mount RAP-B-149-BC1 | | |
|
Manufacturer Description |

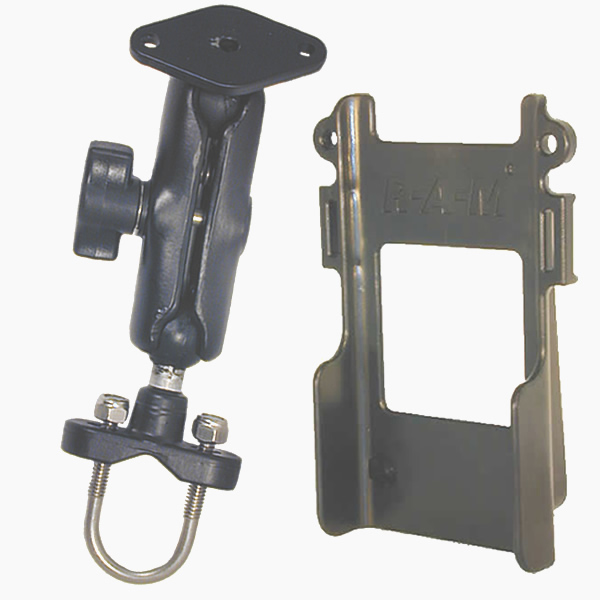

The RAM-B-149-BC1 RAM Mount Marine Grade Aluminum Motorcycle Handlebar Mount with Stainless Steel U-Bolt Base consists of the 1 inch diameter RAM ball and socket system with RAM Plastic Universal Belt Clip Cradle.
Mount Base Design:
 The RAM-B-231 RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Stainless Steel U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
NOTE: This base is completely rust proof.
For Larger Rail Mounting:
For a larger rail, you can purchase the RAM Mount Stainless Steel Large Rail U-Bolt for circular rails with diameter up to 1.25 inches.
Mount Arm Design:
 The RAM Mount Dual Socket Arm (RAM-B-201) is a B Size 1 inch Ball Dual Socket Arm, made of Marine Grade Aluminum. The arm is 3 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends.
Mount Cradle Design:
The RAM-HOL-BC1 Universal Belt Clip Bar Holder is a High Strength Plastic Composite Cradle designed to hold many different electronic devices with a connected belt clip. The most common use for this mount is handheld radios. To place a unit onto the holder, simply slide the belt clip on you device over the 1 1/8'' long x 1/16'' wide plastic support bar. The belt clip can be part of the unit or part of a protective case.
|
