See more RAM Mount items. |
| |
| List Price: |
$58.65CDN |
| Our Price: |
$44.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$13.70CDN (23%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
| Model: |
RAM Mount Plastic Universal Small Cradle Suction Cup Mount |
| Part No: |
RAP-B-166-UN1U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Universal Grip Cradle: In Use (RAM-HOL-UN1)
(2,173 views) |
RAM Universal Grip Cradle: Dimensions (RAM-HOL-UN1)
(945 views) |
RAM Universal Cradle with Mobile Phone (RAM-HOL-UN1)
(784 views) |
RAM Diamond Plate: Overview (RAP-B-238)
(3,068 views) |
RAM Medium Arm: Overview (RAP-B-201)
(1,894 views) |
|
What's Included In The Box? |
The RAM Mount Plastic Universal Small Cradle Suction Cup Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Universal Mounts |
| Model: |
RAP-B-166-UN1U |
SKU: |
RAPB166UN1 |
UPC: |
|
| Announced: |
November 25, 2004 |
First Shipped: |
October 11, 2004 |
Weight: |
0.720 lbs. |
Manufacturer Description |

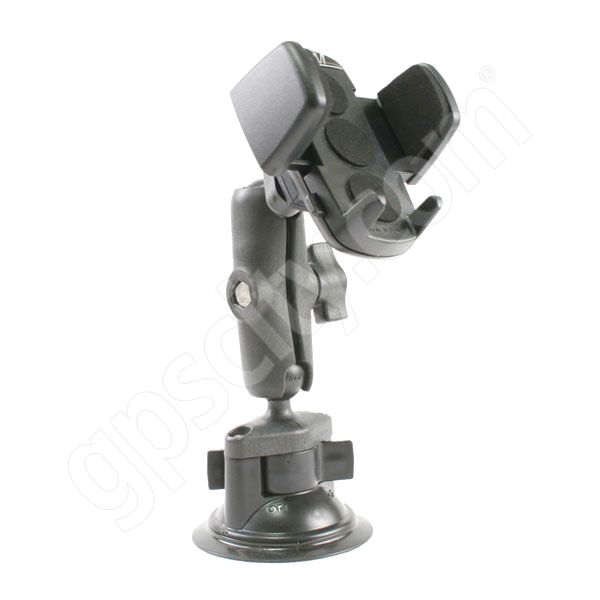

The RAM High Strength Plastic Mount with 3.25'' Locking Suction Base consists of the 1'' dia. ball and socket system with RAM Universal Small Side Clamping Plastic Cradle.
BASE DESIGN:
 The RAP-B-224-1 RAM Mount High Strength Plastic Locking 3.25 inch diameter Rubber Suction Cup Base is designed to have an extra strong hold on any smooth non-porous surface. With a twist on the locking knob, the suction cup base adheres to any glass¹ or non-porous plastic surface, as found on our Non Skid Base with Plastic Disk and Plastic Adhesive Disk.
Connected to the top of the Suction Cup is a RAP-B-238 RAM Mount High Strength Plastic Diamond Plate with 1 inch diameter Rubber Ball. This plate allows the suction cup to join to an open socket found on the RAM 1 inch diameter socket arms.
¹ Important legal note to California and Minnesota Drivers
Suction Cup Base Mounting Options:We currently offer three alternative solutions for mounting your suction cup mount in a location other than a windshield:
 The Non Skid Base with round plastic plate, is a weighted base that can be placed on your dash without an adhesive or drilling. Simply place the base on your dash, or any flat surface and then attach the suction cup to the round plastic plate. This is perfect when you want a temporary mounting solution but the windshield mount just isn't the answer.
 The Suction Cup Adhesive Disk with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply stick the the plate to any flat surface and then attach the suction cup to the plate. This is perfect when you need to attach your suction cup mount to your car dash vertically or horizontally, rather than to your windshield.
 The Suction Cup Drink Cup Holder with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply place the base into any cup holder in your vehicle and then attach the suction cup to the plate found on top. This is perfect when you need to attach your suction cup mount away from the windshield or when you just want the mount off the dash.
ARM DESIGN:
The High Strength Plastic Standard Length Double Socket Arm is 3.0'' long when measured between socket centers.
CRADLE DESIGN:
 The RAM-HOL-UN1 Small RAM Plastic Side Clamping Cradle is designed to hold a large amount of different kinds of cell phones and electronic devices.
Using the Cradle:
This cradle has padded locking side clamps that close tightly on the item you want to hold. To release the clamp hold, simply press the button found at the bottom left side of the cradle which will spring the clamps open. At the base of the cradle are two small supports to hold the bottom of the item securely in the cradle. This RAM universal side clamping cradle is designed to be used in a closed cabin, low vibration environment. This system is not recommended as a motorcycle mount.
Universal Cradle Dimensions:
- Minimum Grip Width: 1.5''
- Maximum Grip Width: 2.6''
- Side Clamp Height: 1.88''
- Side Clamp Depth: 1.13''
- Cradle Spine Height: 3.68''
- Cradle Spine Width: 2.0''
NOTE: The top of the cradle is open, so the items in the cradle can be larger than the height of the cradle.
|
