| Model: |

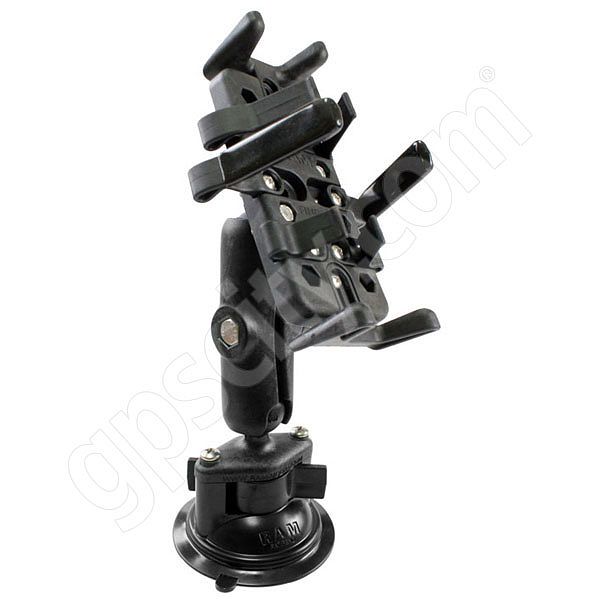

RAM Mount Plastic Universal Finger Cradle Suction Cup Mount |
| Part No: |
RAP-B-166-UN4 |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Universal Cradle: In the Box (RAM-HOL-UN4U)
(4,060 views) |
RAM Universal Cradle: Assembly (RAM-HOL-UN4U)
(3,105 views) |
RAM Diamond Plate: Overview (RAP-B-238)
(3,068 views) |
RAM Medium Arm: Overview (RAP-B-201)
(1,894 views) |
Suction Mount Base: In Use (RAP-224-1U)
(5,675 views) |
|
What's Included In The Box? |
The RAM Mount Plastic Universal Finger Cradle Suction Cup Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Universal Mounts |
| Model: |
RAP-B-166-UN4 |
SKU: |
RAPB166UN4 |
UPC: |
793442929052 |
| Announced: |
November 25, 2004 |
First Shipped: |
October 11, 2004 |
Weight: |
0.951 lbs. |
Manufacturer Description |
The RAP-B-166-UN4 Universal Finger Grip Windshield Suction Mount is a High Strength Plastic Composite Mount with a Locking Suction Cup Base and RAM Universal Finger Grip Side Clamping Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Universal Finger Grip Mount to your optimum viewing position.
Note: This mount does not require any drilling for installation.
Universal Mount Options:
 To help ensure you have the Universal Mount you require, take a look at the list of available RAM universal Finger Grip clamping cradle mounts on the RAM-HOL-UN4 Finger Grip Series of universal cradles and mounts Page. Here you can select from suction cup universal mounts, flat surface screw down universal mounts, universal car mounts, non skid weighted universal mounts and more bundled with the RAM-HOL-UN4 Universal Finger Grip Series Cradle. Alternatively, you can review the complete list of RAM universal cradles and mounts.
Universal Mount Cradle Design:
 The RAM-HOL-UN4 Plastic Finger Grip RAM Cradle is designed to hold a large amount of different kinds of cell phones and electronic devices, including the Blackberry range of Phones.
Using the Cradle:
This cradle has four (4) rubber coated fingers placed along sides to grip any device you need to hold. The fingers open by squeezing the ''peg'' ends to open the small finger arms. The bottom of the cradle includes a holding plate that adds support to the device being held by the mount.
Universal Cradle Dimensions:
- Using Short Arm Side Clamps:
- Maximum Depth: 0.75 inches
- Minimum Width: 1.25 inches
- Maximum Width: 3.0 inches
- Using Medium Arm Side Clamps:
- Maximum Depth: 1.25 inches
- Minimum Width: 1.5 inches
- Maximum Width: 3.5 inches
- Using Long Arm Side Clamps:
- Maximum Depth: 1.6 inches
- Minimum Width: 2.25 inches
- Maximum Width: 3.5 inches
- Spine Plate Dimensions: 2.5W x 5.0H inches
- Minimum Height (with Top and Bottom Plates): 5.25 inches *
- Maximum Heigth (with Top and Bottom Plates): 6.0 inches *
* The top and bottom plates can be removed for larger devices.
Universal Mount Cradle Plate:The RAP-B-238 RAM Mount High Strength Plastic Composite Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file) (Note: the Plastic RAP-B-238 Plate is thicker than the RAM-B-238 Design Drawings shown).
Universal Mount Arm Design: The RAP-B-201 RAM Mount Dual Socket Arm is a 1 inch B size Ball Dual Socket Arm made of High Strength Plastic. The arm is 3.0 inches long between socket centers. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAP-B-201 arm, take a closer look with the RAM-B-201 Aluminum Arm Design Drawings (pdf file).
Universal Mount Base Design: The RAP-B-224-1 RAM Mount High Strength Plastic Locking 3.25 inch diameter Rubber Suction Cup Base is designed to have an extra strong hold on any smooth non-porous surface. With a twist on the locking knob, the suction cup base adheres to any glass¹ or non-porous plastic surface, as found on our Non Skid Base with Plastic Disk and Plastic Adhesive Disk.
Connected to the top of the Suction Cup is a RAP-B-238 RAM Mount High Strength Plastic Diamond Plate with 1 inch diameter Rubber Ball. This plate allows the suction cup to join to an open socket found on the RAM 1 inch diameter socket arms.
¹ Important legal note to California and Minnesota Drivers
Suction Cup Base Mounting Options:We currently offer three alternative solutions for mounting your suction cup mount in a location other than a windshield:
 The Non Skid Base with round plastic plate, is a weighted base that can be placed on your dash without an adhesive or drilling. Simply place the base on your dash, or any flat surface and then attach the suction cup to the round plastic plate. This is perfect when you want a temporary mounting solution but the windshield mount just isn't the answer.
 The Suction Cup Adhesive Disk with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply stick the the plate to any flat surface and then attach the suction cup to the plate. This is perfect when you need to attach your suction cup mount to your car dash vertically or horizontally, rather than to your windshield.
 The Suction Cup Drink Cup Holder with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply place the base into any cup holder in your vehicle and then attach the suction cup to the plate found on top. This is perfect when you need to attach your suction cup mount away from the windshield or when you just want the mount off the dash.
|
Features & Tips |
Here is a listing we have put together of some of the common Plastic Universal Finger Cradle Suction Cup Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Universal Large Side Clamping Plastic Cradle.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black High Strength Composite Plastic and Rubber Locking Suction Cup.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Round 3.25 inch diameter Locking Suction Cup for non-porous surfaces
- Common Applications:
|
