Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$37.54CDN |
| Our Price: |
$25.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$11.59CDN (31%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
| Model: |
RAM Mount Plastic Compaq iPaq Suction Cup Mount |
| Part No: |
RAP-B-166-CO1U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Diamond Plate: Overview (RAP-B-238)
(3,068 views) |
RAM Medium Arm: Overview (RAP-B-201)
(1,894 views) |
Suction Mount Base: In Use (RAP-224-1U)
(5,675 views) |
Check out our
channel. | |
|
What's Included In The Box? |
The RAM Mount Plastic Compaq iPaq Suction Cup Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
PDA Mounts |
| Model: |
RAP-B-166-CO1U |
SKU: |
RAPB166CO1 |
UPC: |
793442816611 |
| Announced: |
November 30, 1999 |
First Shipped: |
November 14, 2001 |
Weight: |
0.745 lbs. |
RAM Mount Plastic Compaq iPaq Suction Cup Mount Alternative Models |
RAM Mount RAM-B-148-CO1 |
Holux GR-231 BlueTooth GPS |
RAM Mount iPaq PDA Suction Mount RAM-B-166-CO1U |
RAM Mount Plastic Compaq iPaq Suction Cup Mount | | |
|
Manufacturer Description |

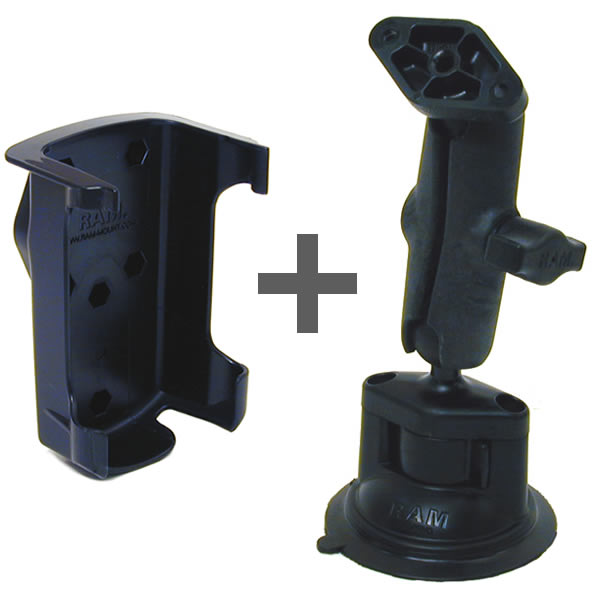

The RAP-B-166-CO1U Compaq iPaq Series Windshield Suction RAM Mount is a High Strength Plastic Composite Mount with a Locking Suction Cup Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Compaq iPaq Series mount to your optimum viewing position.
Note: This mount does not require any drilling for installation.
Compaq iPaq Mount Options:
Compaq iPaq Mount Cradle Design:
 The RAM-HOL-CO1 RAM Mount High Strength Plastic Cradle is designed to hold Compaq iPaq PDA units, including the following,
- Compaq iPaq 3600 Series
- Compaq iPaq 3700 Series
- Compaq iPaq 3800 Series
- Compaq iPaq 3900 Series
- Compaq iPaq 5100 Series
- Compaq iPaq 5400 Series
- Compaq iPaq 5500 Series
Expansion Packs:
This cradle will hold your PDA if connected to an expansion pack, or left in the original protective cover.
Compaq iPaq Mount Cradle Plate: The RAP-B-238 RAM Mount High Strength Plastic Composite Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file) (Note: the Plastic RAP-B-238 Plate is thicker than the RAM-B-238 Design Drawings shown).
Compaq iPaq Mount Arm Design:  The RAP-B-201 RAM Mount Dual Socket Arm is a 1 inch B size Ball Dual Socket Arm made of High Strength Plastic. The arm is 3.0 inches long between socket centers. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAP-B-201 arm, take a closer look with the RAM-B-201 Aluminum Arm Design Drawings (pdf file).
Compaq iPaq Mount Base Design:  The RAP-B-224-1 RAM Mount High Strength Plastic Locking 3.25 inch diameter Rubber Suction Cup Base is designed to have an extra strong hold on any smooth non-porous surface. With a twist on the locking knob, the suction cup base adheres to any glass¹ or non-porous plastic surface, as found on our Non Skid Base with Plastic Disk and Plastic Adhesive Disk.
Connected to the top of the Suction Cup is a RAP-B-238 RAM Mount High Strength Plastic Diamond Plate with 1 inch diameter Rubber Ball. This plate allows the suction cup to join to an open socket found on the RAM 1 inch diameter socket arms.
¹ Important legal note to California and Minnesota Drivers
Suction Cup Base Mounting Options:We currently offer three alternative solutions for mounting your suction cup mount in a location other than a windshield:
 The Non Skid Base with round plastic plate, is a weighted base that can be placed on your dash without an adhesive or drilling. Simply place the base on your dash, or any flat surface and then attach the suction cup to the round plastic plate. This is perfect when you want a temporary mounting solution but the windshield mount just isn't the answer.
 The Suction Cup Adhesive Disk with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply stick the the plate to any flat surface and then attach the suction cup to the plate. This is perfect when you need to attach your suction cup mount to your car dash vertically or horizontally, rather than to your windshield.
 The Suction Cup Drink Cup Holder with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply place the base into any cup holder in your vehicle and then attach the suction cup to the plate found on top. This is perfect when you need to attach your suction cup mount away from the windshield or when you just want the mount off the dash.
|
