Customer Images
Share your images and get a
free gpscity.ca t-shirt!
|
Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$71.39CDN |
| Our Price: |
$54.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$16.44CDN (23%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
| Model: |
RAM Mount OQO model 02 UMPC Yoke Mount |
| Part No: |
RAM-B-121-OQO1U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Rectangular Plate: Comparison Overview
(2,134 views) |
RAM Round Plate: Overview (RAM-B-202U)
(8,290 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,920 views) |
|
What's Included In The Box? |
The RAM Mount OQO model 02 UMPC Yoke Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
UMPC Mounts |
| Model: |
RAM-B-121-OQO1U |
SKU: |
RAMB121OQO1 |
UPC: |
793442909061 |
| Announced: |
August 8, 2007 |
First Shipped: |
April 5, 2006 |
Weight: |
1.000 lbs. |
Manufacturer Description |

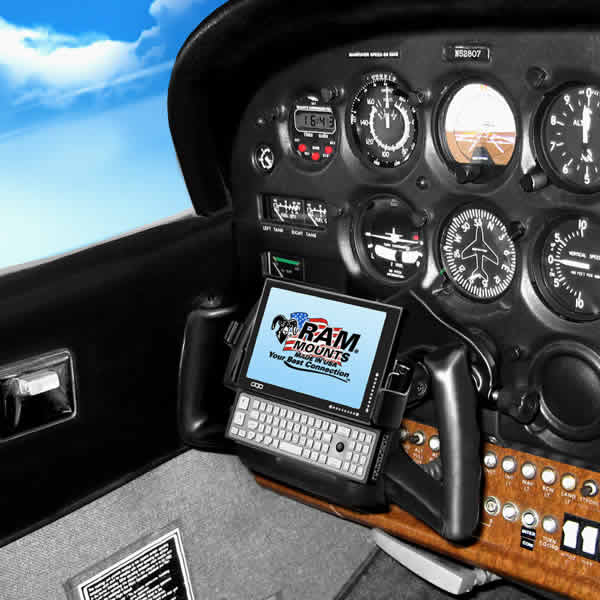

The RAM-B-121-OQO1 OQO model 02 UMPC Series Yoke Clamping Aviation RAM Mount is a Marine Grade Aluminum Mount with a Temporary Clamp Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the OQO model 02 UMPC Series mount to your optimum viewing position.
Note: This mount does not require any drilling for installation.
OQO model 02 UMPC Mount Options:
 To help ensure you have the OQO model 02 UMPC Mount you require, take a look at the list of available RAM OQO model 02 mounts on the RAM-HOL-OQO1 Series of OQO model 02 UMPC Cradles and Mounts Page. Here you can select from suction cup UMPC mounts, flat surface screw down UMPC mounts, UMPC car mounts, non skid weighted UMPC mounts and more bundled with the RAM-HOL-OQO1 OQO model 02 UMPC Series Cradle.
OQO model 02 UMPC Mount Cradle Design:
The RAM-HOL-OQO1 RAM Mount High Strength Plastic Cradle is designed to hold the OQO Model 02 UMPC (Ultra Mobile PC). This custom cradle connects to the RAM assembly mounts with a 2.5 inch diamter round plate (RAM-B-202 or RAM-202).
OQO model 02 UMPC Mount Cradle Plate Design:
 The RAM-B-202 RAM Mount Marine Grade Aluminum Round Plate is designed to connected to the back of cradles with an AMPS hole pattern. The round plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
OQO model 02 UMPC Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
OQO model 02 UMPC Mount Base Design:
 The RAM-B-121B RAM Mount Powder Coated Marine Grade Aluminum Yoke Clamp Mount Base fits a rail diameter from 5/8 inch to a maximum of 1 1/4 inches. The 1 inch rubber ball is at a right angle to the plane of the mount so when connected to a rail, the ball sits parallel to the rail. To mount the base, simply place the yoke clamps around the rail and then screw the large knob at the end of the threaded rod. The hand tightened clamp makes this the perfect mounting system for rental planes and unusual shaped motorbike rails.
NOTE: The rail does not need to be perfectly round to mount this base.
|
Features & Tips |
Here is a listing we have put together of some of the common OQO model 02 UMPC Yoke Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for OQO model 02 UMPC.
- Cradle Material: High Strength Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented RAM 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Yoke Clamp Base fits rails with diameter from 5/8 inch to a maximum of 1 1/4 inch.
- Common Use: Yoke Aviation Mounting, Temporary rail mounting.
|
